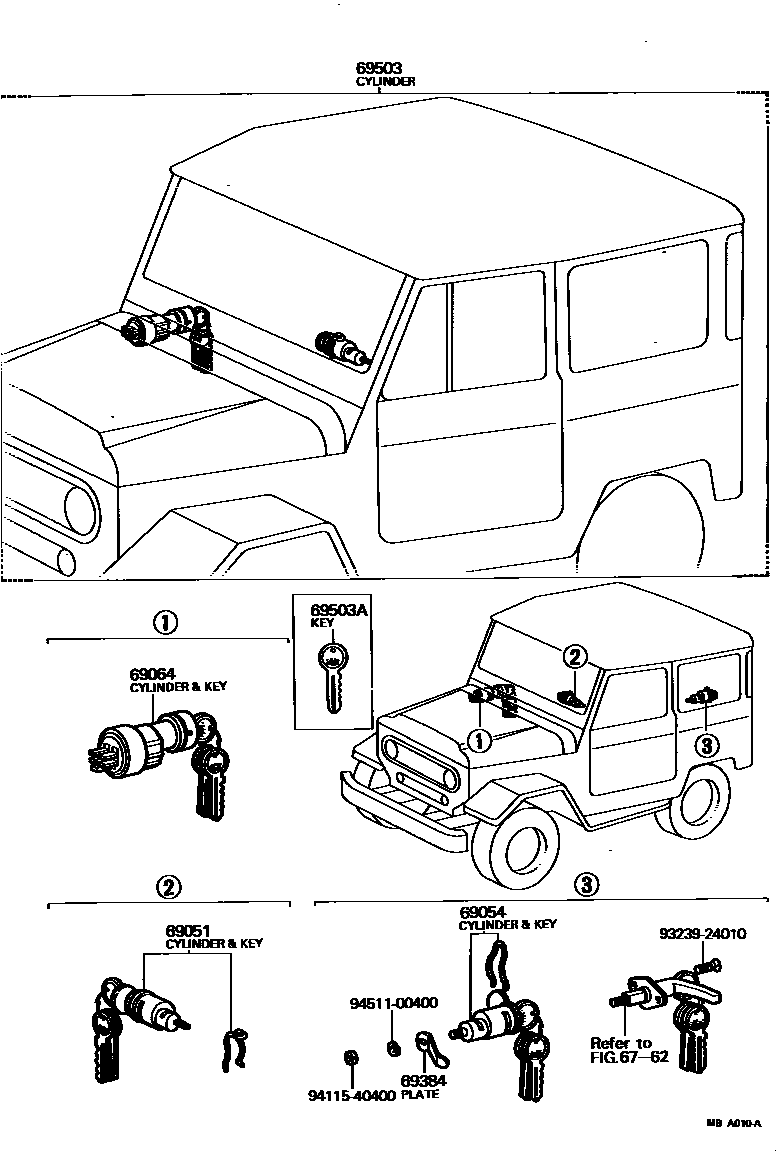

SEPARATION DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1

6762

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-60010iFJ5#196903-197709

sub69051-90351

main69051-69015iBJ4#197501-198007

main69051-90351iFJ56197709-198007

main69510-60010iBJ4#,FJ4#196903-197509

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69051-60010iFJ5#..VKC196903-197709

sub69051-90351

main69054-60010iFJ5#..VTG197112-197612

MECHANICAL TYPE

main69054-90352iFJ56..VTG197709-198007

main69055-90351iFJ56..VKC197709-198007

main69510-60010iBJ40,41,FJ40..VKC197209-198007

main69540-60010iFJ40..V196903-197209

sub69540-60011

sub94115-40400

main69540-60011iBJ40,41,FJ40..VLS197209-198007

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-60010iBJ4#197402-197501

W/STEERING LOCK

sub69057-60011

main69057-60011iBJ4#197501-198007

W/STEERING LOCK

main69064-60021iFJ4#,55197209-197501

L/STEERING LOCK

main69064-60051iFJ4#,55197209-197501

W/STEERING LOCK

sub69064-60061

main69064-60061iFJ4#,56197501-198008

W/STEERING LOCK

sub69057-90800

main84045-26010iFJ55196903-197209

main84450-60011iFJ4#196903-197107

sub69057-95211

main84450-60040iFJ4#197107-197209

69384PLATE, BACK DOOR LOCK

main69384-60020iFJ40..VLS196903-197210

main69384-90300iBJ40,41,FJ40..VLS197210-198007

69503CYLINDER SET, LOCK

main69005-69025iBJ4#197402-197501

sub69005-60040

main69005-69035iFJ4#..TPC197501-197509

W/STEERING LOCK

sub69503-69015

main69005-69086iFJ40..V197501-197509

W/STEERING LOCK

main69005-69115iBJ40..V197501-197509

W/STEERING LOCK

main69005-69115iBJ4#197509-197902

STEEL DOOR,W/STEERING LOCK

main69005-69135iBJ4#..TPC197501-197509

W/STEERING LOCK

main69005-90312iBJ4#197902-197904

main69005-90320iBJ4#197904-198007

main69005-90354iFJ56..VKC197709-198007

main69005-90355iFJ56..VTG197709-198007

main69500-60020iFJ4#..TPC196903-197109

W/FUEL LOCK

main69500-60070iFJ4#..TPC196903-197109

L/FUEL LOCK,STEEL DOOR

main69500-60081iFJ40..VLS196903-197109

main69500-60082iFJ40..VLS197109-197209

main69500-60101iFJ40..VLS196903-197109

W/FUEL LOCK

main69500-60170iFJ4#..TPC197109-197209

L/FUEL LOCK,STEEL DOOR

main69503-60011iFJ5#..VTG197209-197709

main69503-60020iFJ55..VTG196903-197209

main69503-60041iFJ5#..VKC197209-197709

main69503-60050iFJ55..VKC196903-197209

main69503-60131iFJ5#..VTG197209-197612

MECHANICAL TYPE

main69503-60160iFJ55..VTG197112-197209

MECANICAL TYPE

main69503-69015iFJ4#197309-197501

W/STEERING LOCK

main69503-69025iFJ4#197309-197501

L/STEERING LOCK

sub69005-69015

main69505-60010iBJ40,FJ40..VLS197209-197501

FRONT & BACK DOOR

69503AKEY, BLANK

main90999-00006-01iBJ40,41,FJ40..V196903-198007

FOR BACK DOOR,NO.1,BLACK

sub90999-00011

main90999-00006-02iBJ40,41,FJ40..V196903-198007

FOR BACK DOOR,NO.2,RED/MAROON

sub90999-00011

main90999-00006-03iBJ40,41,FJ40..V196903-198007

FOR BACK DOOR,NO.3,GRAY

sub90999-00011

main90999-00006-04iBJ40,41,FJ40..V196903-198007

FOR BACK DOOR,NO.4,BLUE

sub90999-00011

main90999-00006-05iBJ40,41,FJ40..V196903-198007

FOR BACK DOOR,NO.5,BEIGE

sub90999-00011

main90999-00006-06iBJ40,41,FJ40..V196903-198007

FOR BACK DOOR,NO.6,BROWN

sub90999-00011

main90999-00066iBJ4#,FJ5#196903-198007

sub90999-00085

9323924010

main93239-24010

9411540400

main94115-40400

9451100400

main94511-00400

10 parts on this diagram · 7 diagrams in section
