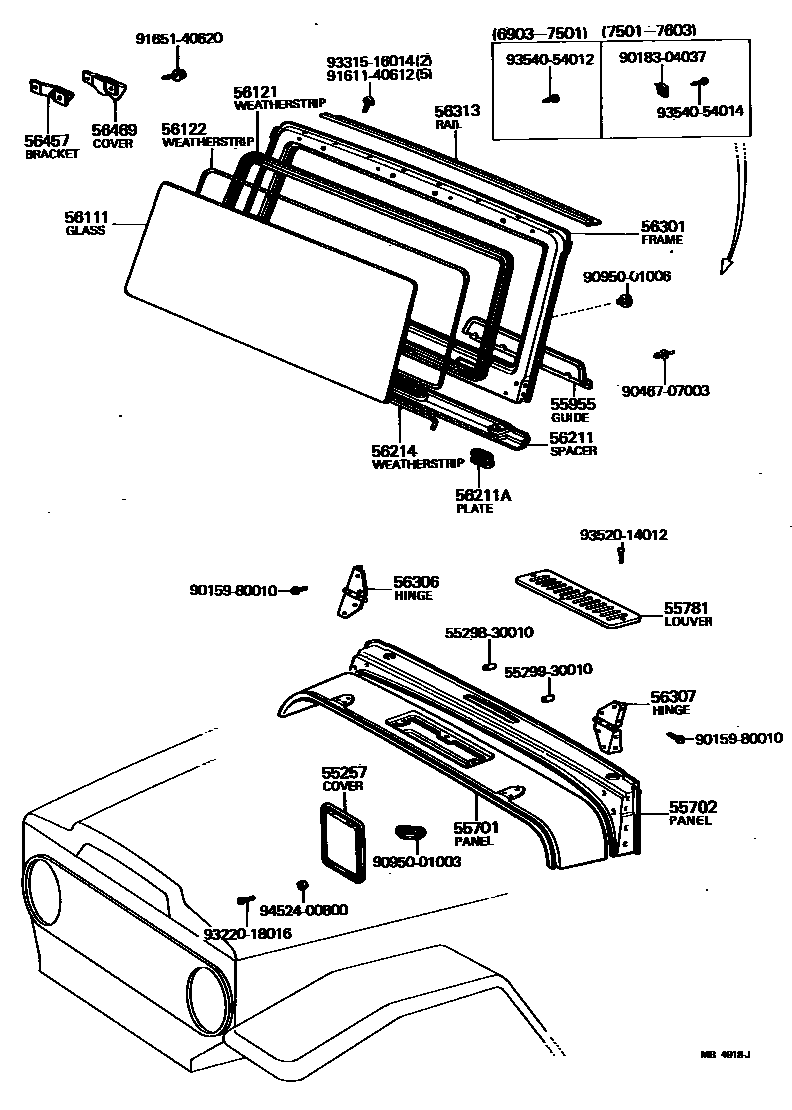

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

55257COVER, DASH PANEL OPENING

main55257-60010iFJ40..V196903-197309

55701PANEL SUB-ASSY, COWL

main55701-60012iFJ4#197109-197309

main55701-90074iBJ4#198006-198007

main55701-90271iBJ4#197909-198005

main55701-90340iBJ4#,FJ4#197309-197608

main55711-90352iFJ5#196903-198007

55702PANEL SUB-ASSY,COWL TOP, INSIDE

main55702-90305iBJ4#197608-198007

main55702-90351iFJ55196903-197007

main55702-90353iFJ55197007-197209

main55702-90355iFJ55197209-197309

main55702-90359iFJ5#197309-198007

55781LOUVER, COWL VENTILATOR

main55768-60010iBJ4#,FJ4#196903-198007

main55813-90351iFJ55196903-196909

55955GUIDE, DEFROSTER NOZZLE

main55955-90300×2iBJ4#,FJ4#196903-197501

main55956-90300iBJ4#,FJ4#197501-198007

RH.

main55957-90300iBJ4#,FJ4#197501-198007

LH.

56111GLASS, WINDSHIELD

main56111-60013iBJ4#,FJ4#197005-197501

ZN.TP.T=5.0

main56111-60040iBJ4#,FJ4#196903-197501

LM.T=6.7

main56111-90300iBJ4#,FJ4#197501-198007

ZN.TP.T=5.0

main56111-90301iBJ4#,FJ4#197501-197902

LM.T=6.7

main56111-90353iFJ5#196903-197709

LM.T=6.7

main56111-90354iFJ5#196903-198007

ZN.TP.T=5.0

main56111-90355iFJ5#197309-198007

TN.ZN.TP.T=5.0

main56111-90356iFJ5#197309-197709

TN.LM.T=6.7

56121WEATHERSTRIP, WINDSHIELD

main56121-60011iBJ4#,FJ4#196903-197501

FOR GLASS T=6.7&6.3

main56121-60030iBJ4#,FJ4#197005-197501

FOR GLASS T=5.0

main56121-90300iBJ4#,FJ4#197501-198007

FOR GLASS T=5.0

main56121-90301iBJ4#,FJ4#197501-197902

FOR GLASS T=6.7

main56121-90351iFJ5#196903-198007

FOR GLASS T=5.0

main56121-90352iFJ5#196903-197902

FOR GLASS T=6.7

main56121-90357iFJ5#196903-197902

FOR W/MOULDING

56122WEATHERSTRIP, WINDSHIELD, NO.2

main56122-60011iBJ4#,FJ4#196903-198007

56211SPACER, WINDSHIELD

main56211-90300iBJ4#,FJ4#196903-198007

56211APLATE, WINDSHIELD SET

main56389-90302×2iFJ4#196903-197402

56214WEATHERSTRIP, FRONT WINDSHIELD

main56214-90301×2iFJ4#196903-197203

56301FRAME SUB-ASSY, WINDSHIELD

main56301-60013iFJ4#196903-197309

main56301-90305iBJ4#,FJ4#197309-197501

main56301-90318iBJ4#,FJ4#197501-197709

main56301-90324iBJ4#197709-197902

main56301-90343iBJ41..V197902-198007

56306HINGE SUB-ASSY, WINDSHIELD SUPPORT, RH

main56306-90300iBJ4#,FJ4#196903-197501

main56306-90301iBJ4#,FJ4#197501-197809

main56306-90302iBJ4#197809-198007

56307HINGE SUB-ASSY, WINDSHIELD SUPPORT, LH

main56307-90300iBJ4#,FJ4#196903-197501

main56307-90301iBJ4#,FJ4#197501-197809

main56307-90302iBJ4#197809-198007

56313RAIL, WINDSHIELD FRAME, UPPER

main56313-90300iBJ4#,FJ4#196903-198007

56457BRACKET, WINDSHIELD CATCH, UPPER

main56457-60010×2iBJ4#,FJ4#196903-198007

56469COVER, WINDSHIELD CATCH

main56469-60010×2iFJ4#196903-197509

5529830010CAP, TEE NUT(FOR 8MM)

main55298-30010

5529930010CAP, TEE NUT(FOR 6MM)

main55299-30010

9015980010

main90159-80010

9018304037

main90183-04037

9046707003

main90467-07003

9095001003

main90950-01003

9095001006

main90950-01006

9161140612

main91611-40612

9165140620

main91651-40620

9322018016

main93220-18016

9331516014

main93315-16014

9352014012

main93520-14012

9354054012

main93540-54012

9354054014

main93540-54014

9452400800

main94524-00800

32 parts on this diagram · 2 diagrams in section
