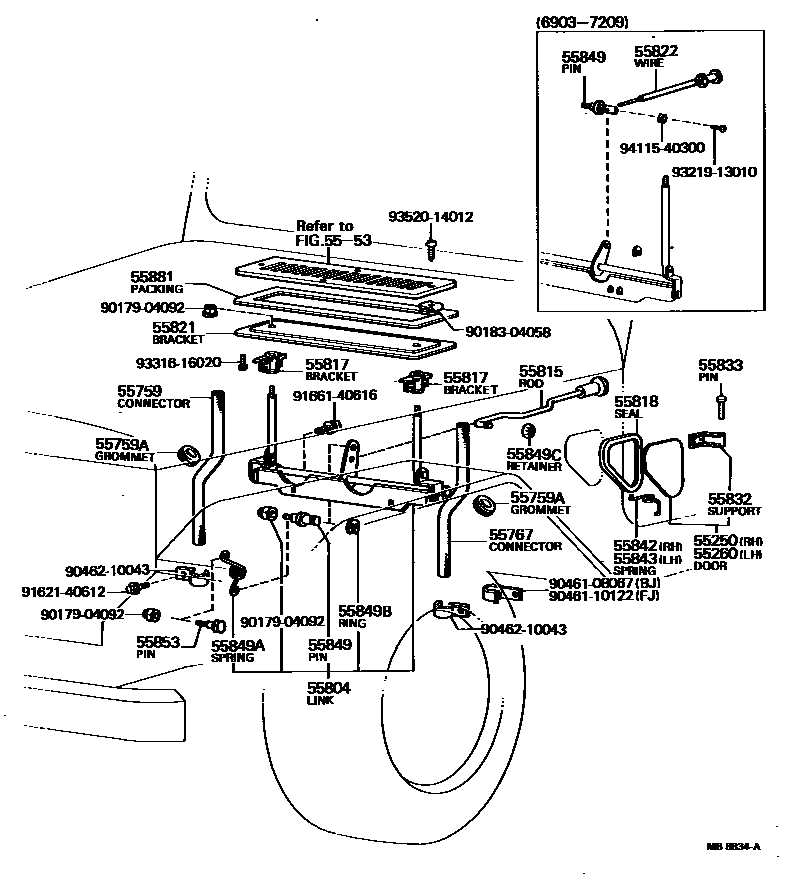

FRONT VENTILATOR

0001 1 0002 1 0003 1 0004 1

55250DOOR ASSY, COWL SIDE VENTILATOR, RH

main55708-60011iBJ4#,FJ4#196903-198007

55260DOOR ASSY, COWL SIDE VENTILATOR, LH

main55709-60011iBJ4#,FJ4#196903-198007

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

55759CONNECTOR, COWL VENTILATOR DRAIN HOSE

main55759-60011iFJ4#196903-197309

main55759-60020iFJ4#197309-197509

main55761-90300iBJ4#197402-197608

55759AGROMMET, COWL VENTILATOR DRAIN HOSE CONNECTOR

main90480-25125×2iFJ4#196903-197509

main90480-36481×2iBJ4#197402-197608

55767CONNECTOR, COWL VENTILATOR DRAIN HOSE

main55705-90300iFJ4#197309-197509

main55762-90300iBJ4#197402-197608

main55767-60010iFJ4#196903-197309

55804LINK SUB-ASSY, COWL VENTILATOR DAMPER

main55802-60011iFJ4#196903-197209

main55802-90300iFJ4#197209-197309

55815ROD, COWL VENTILATOR CONTROL

main55804-90300iFJ4#197209-197309

main55820-90351iFJ55196903-197209

55817BRACKET, COWL VENTILATOR ROD

main55851-90300×2iFJ4#196903-197309

55818SEAL, SIDE VENTILATOR DUCT

main55786-60011×2iFJ4#196903-197103

main55786-90301×2iBJ4#,FJ4#197103-198007

55821BRACKET, COWL VENTILATOR

main55848-60010iFJ4#196903-197309

55822WIRE ASSY, COWL VENTILATOR

main55820-60010iFJ4#196903-197209

55832SUPPORT, FRONT VENTILATOR

main55784-60010×2iBJ4#,FJ4#196903-198007

55833PIN, FRONT VENTILATOR SUPPORT

main90241-05002×2iBJ4#,FJ4#196903-198007

55842SPRING, FRONT VENTILATOR, RH

main55787-25010iBJ4#,FJ4#196903-197909

main90508-16028iBJ4#197909-198007

55843SPRING, FRONT VENTILATOR, LH

main55788-25010iBJ4#,FJ4#196903-197909

main90508-16029iBJ4#197909-198007

55849PIN, COWL VENTILATOR CONTROL WIRE

main55849-60011iFJ4#196903-197209

main55849-60021iFJ4#197209-197309

55849ASPRING, TORSION(FOR COWL VENTILATOR CONTROL WIRE PIN)

main90508-18084iFJ4#196903-197309

55849BRING, E(FOR COWL VENTILATOR CONTROL WIRE PIN)

main90523-05006iFJ4#196903-196911

main96160-00500iFJ4#196911-197309

55849CRETAINER, COWL VENTILATOR CONTROL WIRE PIN

main90183-04072iFJ4#197209-197309

55853PIN,COWL VENTILATOR DAMPER SPRING

main55853-60011iFJ4#196903-197309

55881PACKING, FRONT VENTILATOR

main55814-90351iFJ55196903-197209

main55881-60010iFJ4#196903-197309

9017904092

main90179-04092

9018304058

main90183-04058

9046108067

main90461-08067

9046110122

main90461-10122

9046210043

main90462-10043

9162140612

main91621-40612

9166140616

main91661-40616

9321913010

main93219-13010

9331616020

main93316-16020

9352014012

main93520-14012

9411540300

main94115-40300

33 parts on this diagram · 4 diagrams in section
