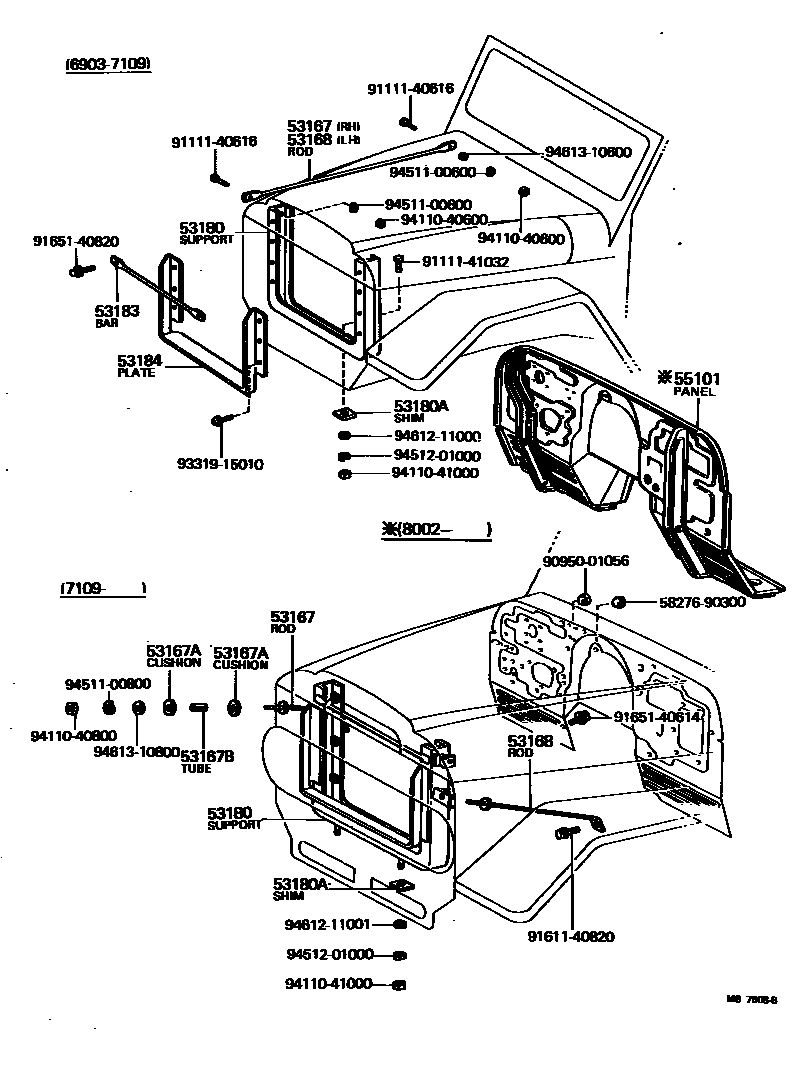

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53167ROD, RADIATOR BRACE, RH

main53016-60010iFJ4#197109-197509

main53167-60010iFJ4#196903-197109

main53167-60030iBJ4#197402-198007

N50Z,N70Z X 2

main53167-60040iBJ4#197510-197608

N50,N70Z

main53167-60041iBJ4#197608-197902

N50,N70Z

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022×4iBJ4#,FJ4#197109-198007

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043×2iBJ4#,FJ4#197109-198007

53168ROD, RADIATOR BRACE, LH

main53018-60010iFJ4#197109-197509

main53167-60010iFJ4#196903-197109

main53169-60020iBJ4#197402-198007

53180SUPPORT ASSY, RADIATOR

main53108-60011iFJ4#196903-197109

main53108-60012iFJ4#197109-197509

main53108-60020iBJ4#197402-197710

main53201-60010iBJ4#197710-197902

main53201-60011iBJ4#197902-198007

53180ASHIM(FOR RADIATOR SUPPORT)

main90950-04010×2iBJ4#,FJ4#196903-198007

53183BAR, RADIATOR SUPPORT

main53163-60010iFJ4#196903-197109

53184PLATE, RADIATOR SHROUD

main53164-60010iFJ4#196903-197109

55101PANEL SUB-ASSY, DASH

main55101-90286iBJ4#198002-198007

main55102-90371iFJ56198002-198007

5827690300GROMMET, SAFETY BAND ANCHORAGE NUT

main58276-90300

9095001056

main90950-01056

9111140616

main91111-40616

9111141032

main91111-41032

9161140820

main91611-40820

9165140614

main91651-40614

9165140820

main91651-40820

9331915010

main93319-15010

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451100600

main94511-00600

9451100800

main94511-00800

9451201000

main94512-01000

9461211000

main94612-11000

9461211001

main94612-11001

9461310600

main94613-10600

9461310800

main94613-10800

27 parts on this diagram · 2 diagrams in section
