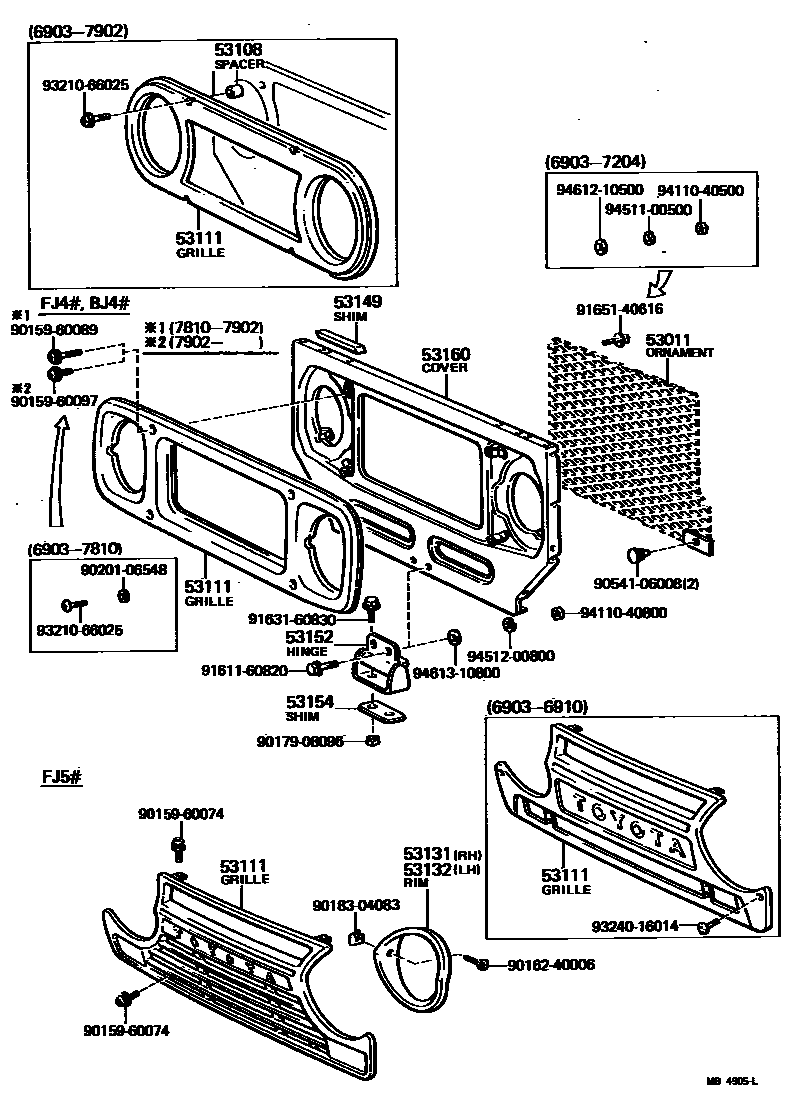

RADIATOR GRILLE

53011ORNAMENT SUB-ASSY, RADIATOR GRILLE

main53011-60010iFJ4#196903-197309

main53011-90300iFJ4#197309-197509

main53011-90301iBJ4#197402-197902

main53011-90305iBJ4#197902-198007

53108SPACER SUB-ASSY, RADIATOR GRILLE

main53112-90300×4iBJ4#,FJ4#196903-197902

53111GRILLE, RADIATOR

main53101-90351iFJ55196903-196910

main53101-90352iFJ55196903-196910

CHROME PLATED

main53101-90353iFJ5#196910-197902

main53101-90354iFJ5#196910-197902

CHROME PLATED

main53101-90355iFJ56197902-198007

main53101-90356iFJ56197902-198007

CHROME PLATED

main53111-60010iBJ4#,FJ4#196903-197902

main53111-60030iBJ4#,FJ4#196903-197902

CHROME PLATED

main53111-90300iBJ4#197902-197903

main53111-90301iBJ4#197902-198007

CHROME PLATED

main53111-90302iBJ4#197903-198007

53131RIM, HEADLAMP, RH

main53103-90351iFJ5#196903-198007

main53103-90352iFJ5#196903-198007

CHROME PLATED

53132RIM, HEADLAMP, LH

main53104-90351iFJ5#196903-198007

main53104-90352iFJ5#196903-198007

CHROME PLATED

53149SHIM,RADIATOR COVER CUSHION

main53148-90300×4iBJ4#197702-198007

L=160

main53149-60010×2iBJ4#,FJ4#196903-197702

L=260

53152HINGE, RADIATOR COVER SUPPORT

main53107-90300iBJ4#,FJ4#196903-198007

53154SHIM,RADIATOR COVER SUPPORT BRACKET

main53154-60010iBJ4#,FJ4#196903-198007

53160COVER ASSY, RADIATOR

main53106-60011iFJ4#196903-196910

main53106-90300iFJ4#196910-197109

main53106-90301iBJ4#,FJ4#197109-197902

main53106-90304iBJ4#197902-198007

9015960074

main90159-60074

9015960089

main90159-60089

9015960097

main90159-60097

9016240006

main90162-40006

9017908096

main90179-08096

9018304083

main90183-04083

9020106548

main90201-06548

9054106008

main90541-06008

9161160820

main91611-60820

9163160830

main91631-60830

9165140616

main91651-40616

9321066025

main93210-66025

9324016014

main93240-16014

9411040500

main94110-40500

9411040800

main94110-40800

9451100500

main94511-00500

9451200800

main94512-00800

9461210500

main94612-10500

9461310800

main94613-10800

28 parts on this diagram · 1 diagram in section
