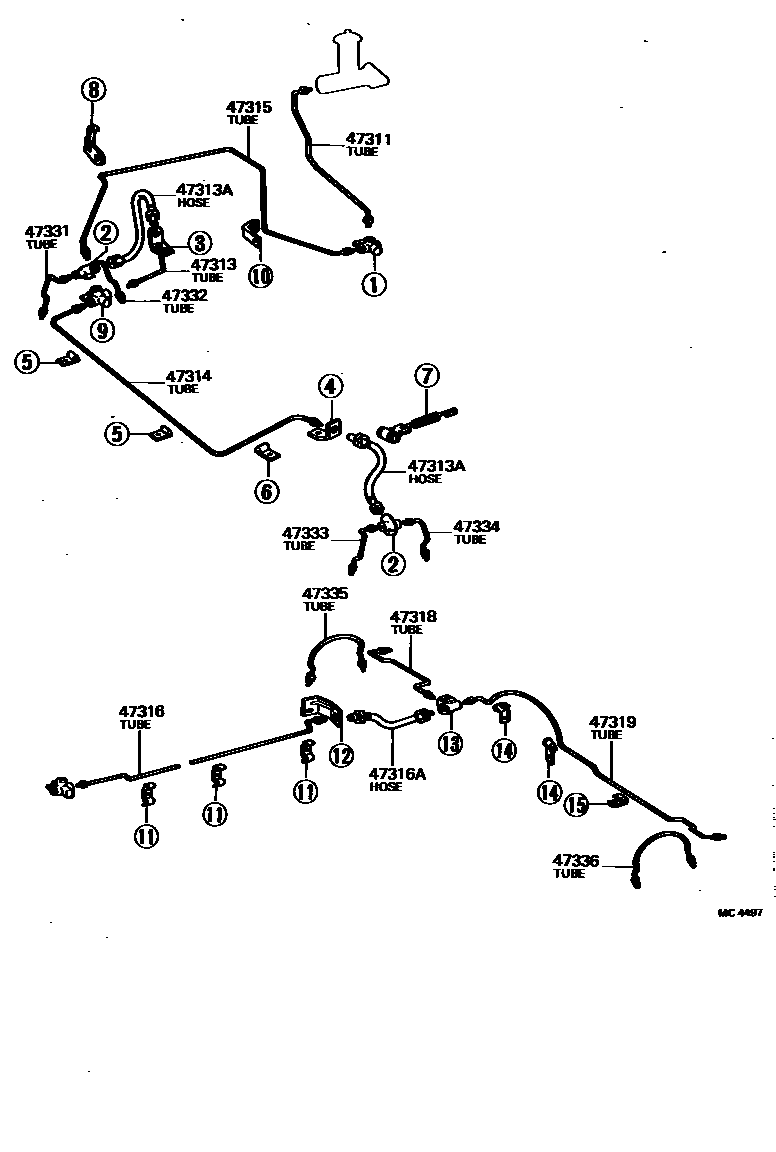

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

47311TUBE, FRONT BRAKE, NO.1

main47311-60020iFJ4#196903-197109

FOR SINGLE MASTER CYLINDER

main47311-60021iFJ4#197109-197309

FOR SINGLE MASTER CYLINDER

main47311-60041iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

main47311-60042iFJ55197109-197309

FOR SINGLE MASTER CYLINDER

main47311-60060iFJ55196903-197109

FOR W/BOOSTER

main47311-60090iFJ4#197301-197501

FOR TANDEM MASTER CYLINDER

main47311-60091iFJ4#197501-197509

FOR TANDEM MASTER CYLINDER

main47311-60100iFJ55197109-197309

FOR TANDEM MASTER CYLINDER

main47311-60101iFJ55197309-197501

FOR TANDEM MASTER CYLINDER

main47311-60102iFJ56197501-197509

main47311-60104iFJ56197509-197902

main47311-60190iBJ4#197402-197501

main47311-60191iBJ4#197501-197709

main47311-60192iBJ4#197709-198007

FOR FRONT DRUM BRAKE

main47311-60370iFJ56197902-198007

main47311-60420iBJ4#197902-198007

FOR FRONT DISC BRAKE

47313TUBE, FRONT BRAKE, NO.3

main47313-60020iFJ4#196903-197005

main47313-60021iFJ4#197005-197109

main47313-60030iFJ55196903-197001

main47313-60050iFJ55197001-197109

main47313-60060iBJ4#,FJ4#,5#197109-197509

main47313-60081iFJ56197509-198007

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02073×2iFJ55196903-197001

main90947-02134×2iFJ55197001-197109

main90947-02138×2iFJ4#196903-197109

main90947-02228×2iBJ4#,FJ4#,5#197409-197902

main96920-31221×2iBJ4#,FJ4#,55197109-197409

main96920-32255×2iBJ4#,FJ56197902-198007

47314TUBE, FRONT BRAKE, NO.4

main47314-60020iFJ4#196903-197005

main47314-60021iFJ4#197005-197109

main47314-60040iFJ55196903-197001

main47314-60070iFJ55197001-197109

main47314-60090iBJ4#197509-198007

main47314-60101iFJ56197509-197709

main47315-60250iFJ56197709-198007

47315TUBE, FRONT BRAKE, NO.5

main47312-60010iFJ4#196903-197109

FOR SINGLE MASTER CYLINDER

main47315-60010iFJ40197109-197301

FOR TANDEM MASTER CYLINDER

main47315-60011iFJ4#197501-197509

FOR TANDEM MASTER CYLINDER

main47315-60020iFJ55197109-197501

FOR TANDEM MASTER CYLINDER

main47315-60021iFJ56197501-197509

main47315-60023iFJ56197509-197902

main47315-60070iFJ4#197109-197309

FOR SINGLE MASTER CYLINDER

main47315-60080iFJ55197109-197309

FOR SINGLE MASTER CYLINDER

main47315-60150iBJ4#197402-197501

main47315-60151iBJ4#197501-197709

main47315-60152iBJ4#197709-198007

FOR FRONT DRUM BRAKE

main47315-60240iBJ4#197902-198007

FOR FRONT DISC BRAKE

main47321-60060iFJ56197902-198007

47316TUBE, FRONT BRAKE, NO.6

main47316-60020iFJ40196903-197003

main47316-60021iFJ40197003-197109

main47316-60030iFJ43196903-197109

main47316-60031iFJ43197109-197509

main47316-60060iFJ55196903-197003

main47316-60061iFJ55197003-197109

main47316-60071iFJ40197109-197509

main47316-60080iFJ5#197109-197509

main47316-60082iFJ56197608-198007

main47316-60090iBJ40,41197402-198007

main47316-60100iBJ43,44197402-198007

main47316-60130iFJ56197509-197608

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02012iFJ55196903-196905

main90947-02027iFJ4#196903-196910

main90947-02093iFJ55196905-196910

main90947-02123iFJ55196910-197109

main90947-02133iBJ4#,FJ4#197109-197409

main90947-02135iFJ4#196910-197109

main90947-02230iBJ4#,FJ4#197409-198007

main90947-02239iFJ5#197409-197902

main96920-34305iFJ56197902-198007

47318TUBE, FRONT BRAKE, NO.8

main47318-60020iFJ40196903-197109

main47318-60030iFJ43196903-197109

main47318-60040iFJ55196903-197109

main47318-60051iFJ4#,5#197109-197509

main47318-60052iFJ56197509-198007

main47318-60060iBJ4#197402-197509

main47318-60062iBJ4#197509-198007

47319TUBE, FRONT BRAKE, NO.9

main47319-60020iFJ40196903-197109

main47319-60030iFJ43196903-197109

main47319-60040iFJ55196903-197109

main47319-60051iFJ4#,5#197109-197509

main47319-60052iFJ56197509-197902

main47319-60060iBJ4#197402-198007

main47327-60010iFJ56197902-198007

47331TUBE, REAR BRAKE, NO.10

main47331-60011iFJ4#196903-197109

main47331-60020iFJ55196903-197109

main47331-60031iBJ4#,FJ4#,5#197109-197509

main47331-60040iBJ4#,FJ56197509-198007

47332TUBE, REAR BRAKE, NO.11

main47332-60011iFJ4#196903-197109

main47332-60020iFJ55196903-197109

main47332-60031iBJ4#,FJ4#,5#197109-197509

main47332-60041iBJ4#197902-198007

FOR DISC BRAKE

main47332-60050iBJ4#,FJ56197509-198007

FOR DRUM BRAKE

47333TUBE, REAR BRAKE, NO.12

main47331-60011iFJ4#196903-197109

main47331-60020iFJ55196903-197109

main47331-60031iBJ4#,FJ4#,5#197109-197509

main47331-60040iBJ4#,FJ56197509-198007

47334TUBE, REAR BRAKE, NO.13

main47332-60011iFJ4#196903-197109

main47332-60020iFJ55196903-197109

main47332-60031iBJ4#,FJ4#,5#197109-197509

main47332-60050iBJ4#,FJ56197509-198007

FOR DRUM BRAKE

main47334-60011iBJ4#197902-198007

FOR DISC BRAKE

47335TUBE, REAR BRAKE, NO.14

main47333-35010iFJ4#196903-197109

main47335-60010iFJ55196903-197109

main47335-60011iBJ4#,FJ4#,5#197109-198007

47336TUBE, REAR BRAKE, NO.15

main47333-35010iFJ4#196903-197109

main47335-60010iFJ55196903-197109

main47335-60011iBJ4#,FJ4#,5#197109-198007

15 parts on this diagram · 13 diagrams in section
