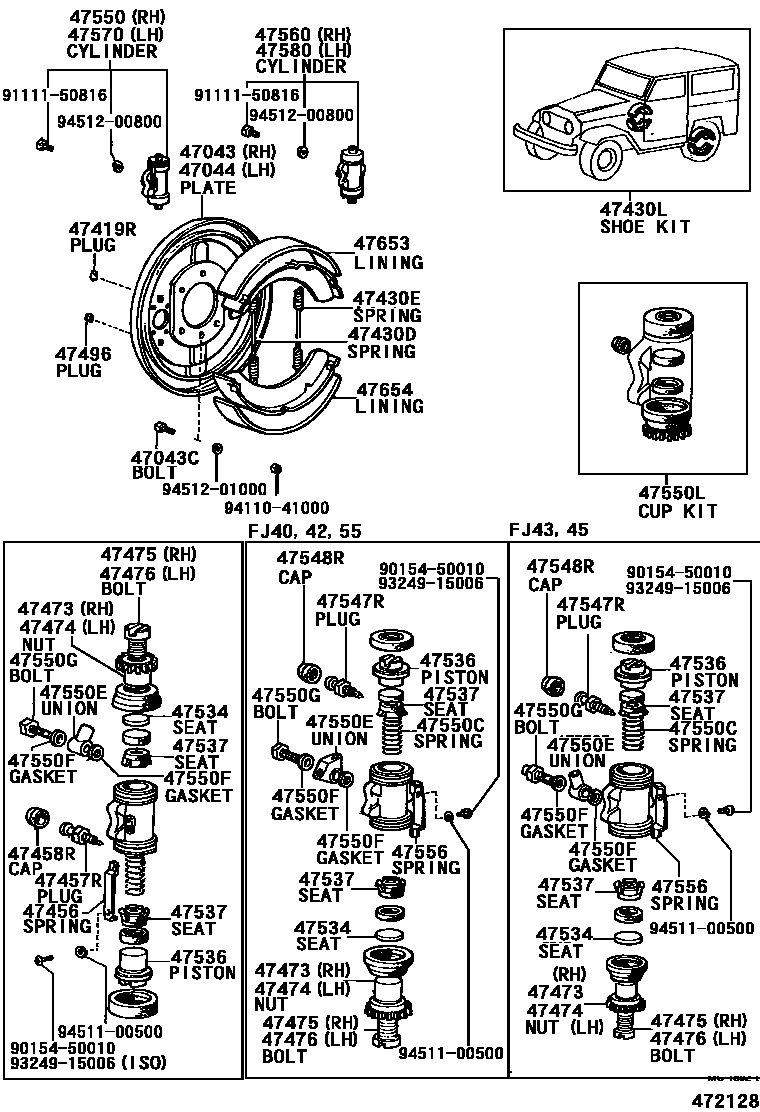

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35010iFJ4#,55196903-197109

main47043-60010iBJ4#,FJ4#,5#197109-198007

FOR SEMI FLOATING AXLE

main47043-60021iBJ4#,FJ56197909-198007

FOR FULL FLOATING AXLE

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-35010×12iBJ4#,FJ4#,5#196903-198007

FOR SEMI FLOATING AXLE

main90101-10061×16iBJ4#,FJ56197909-198007

FOR FULL FLOATING AXLE

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47043-35010iFJ4#,55196903-197109

main47043-60010iBJ4#,FJ4#,5#197109-198007

FOR SEMI FLOATING AXLE

main47043-60021iBJ4#,FJ56197909-198007

FOR FULL FLOATING AXLE

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iBJ4#,FJ4#,5#196903-198007

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26071×2iFJ4#,55196903-197109

main90506-26372×2iBJ4#,FJ4#,5#197109-198007

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26071×2iFJ4#,55196903-197109

main90506-26372×2iBJ4#,FJ4#,5#197109-198007

47430LSHOE KIT, REAR BRAKE

main04494-60010iBJ4#,FJ4#,5#196903-198007

47456PLATE, FRONT BRAKE SHOE GUIDE

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010×4iBJ4#,FJ56197909-198007

FOR FULL FLOATING AXLE

main47447-35020×4iBJ4#,FJ4#,5#197109-198007

FOR SEMI FLOATING AXLE

47457RPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47458RBRACKET, REAR BRAKE SHOE RETURN SPRING

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47552-35020×2iFJ43,55196903-197309

FOR SINGLE MASTER CYLINDER

main47552-60010×2iFJ40196903-197309

FOR SINGLE MASTER CYLINDER

main47552-60020×2iFJ40197109-197309

FOR TANDEM MASTER CYLINDER

main47552-60021×2iBJ44197902-198007

FOR FRONT DISC BRAKE

main47552-60030×2iFJ43,55197301-197309

FOR TANDEM MASTER CYLINDER

main47552-60031×2iBJ44197902-198007

FOR FRONT DRUM BRAKE

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47551-35020×2iFJ43,55196903-197309

FOR SINGLE MASTER CYLINDER

main47551-60010×2iFJ40196903-197309

FOR SINGLE MASTER CYLINDER

main47551-60020×2iFJ40197109-197309

FOR TANDEM MASTER CYLINDER

main47551-60021×2iBJ40,41,FJ40197309-198007

main47551-60030×2iFJ43,55197301-197309

FOR TANDEM MASTER CYLINDER

main47551-60031×2iBJ43,FJ43,5#197309-198007

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-60040×2iBJ4#,FJ56197906-198007

main47554-35010×2iFJ4#,55196903-197309

FOR SINGLE MASTER CYLINDER

main47554-60010×2iBJ4#,FJ4#,5#197301-197906

FOR TANDEM MASTER CYLINDER

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47553-35010×2iFJ4#,55196903-197309

FOR SINGLE MASTER CYLINDER

main47553-60010×2iBJ4#,FJ4#,5#197301-197906

FOR TANDEM MASTER CYLINDER

main47554-60040×2iBJ4#,FJ56197906-198007

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20020×4iBJ4#,FJ4#,56197412-197809

main47491-35021×4iBJ4#,FJ4#,55196903-197412

main47491-36010×4iBJ4#,FJ56197809-198007

47534SEAT, WHEEL CYLINDER PISTON CUP(FOR REAR BRAKE)

main47534-35010×4iFJ43,55196903-197109

main47534-60010×4iFJ40196903-197109

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47531-35020×4iFJ40196903-197309

FOR SINGLE MASTER CYLINDER

main47531-35030×4iFJ43,55196903-197309

FOR SINGLE MASTER CYLINDER

main47531-60020×4iBJ44197902-198007

FOR FRONT DISC BRAKE

main47531-60030×4iBJ43,FJ43,5#197301-198007

FOR TANDEM MASTER CYLINDER

47537SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-35020×8iFJ40196903-197309

FOR SINGLE MASTER CYLINDER

main47533-35030×8iFJ43,55196903-197309

FOR SINGLE MASTER CYLINDER

main47533-40020×8iBJ40,FJ40197109-197412

FOR TANDEM MASTER CYLINDER

main47533-60010×8iFJ55197109-197301

FOR TANDEM MASTER CYLINDER

main47533-60011×8iBJ4#,FJ4#,5#197412-198007

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iBJ4#,FJ4#,5#197109-198007

main47547-35010×4iFJ4#,55196903-197011

main47547-35011×4iFJ4#,55197011-197109

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×4iBJ4#,FJ4#,5#196903-198007

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-35020iFJ43196903-197109

FOR SINGLE MASTER CYLINDER

main47550-60010iFJ40196903-197109

FOR SINGLE MASTER CYLINDER

main47550-69015iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

main47550-69016iFJ43,55197109-197309

FOR SINGLE MASTER CYLINDER

main47550-69035iFJ40197109-197309

FOR SINGLE MASTER CYLINDER

main47550-69045iBJ44197902-197906

FOR FRONT DISC BRAKE

main47550-69055iBJ44,FJ56197902-197906

FOR FRONT DRUM BRAKE

main47550-69075iBJ41; BJ44197906-198007

FOR FRONT DISC BRAKE

main47550-69085iBJ44,FJ56197906-198007

FOR FRONT DRUM BRAKE

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122×4iFJ4#,55196903-197309

FOR SINGLE MASTER CYLINDER

main90501-08529×4iFJ40,55197109-197301

FOR TANDEM MASTER CYLINDER

main90501-09735×4iBJ4#,FJ4#,5#197412-198007

47550EUNION(FOR REAR WHEEL BRAKE CYLINDER)

main90405-09024×2iFJ4#; FJ43196903-197109

FOR FRONT; FOR REAR

main90405-09042×2iFJ40196903-197109

FOR REAR

main90405-10006×2iFJ55196903-197109

FOR FRONT

main90405-10054×2iFJ55196903-197109

FOR REAR

47550FGASKET(FOR REAR WHEEL BRAKE CYLINDER)

main90430-11100×8iFJ4#,55196903-197109

47550GBOLT, UNION(FOR REAR WHEEL BRAKE CYLINDER)

main90401-11017×2iFJ4#,55; FJ40,55196903-197109

FOR FRONT; FOR REAR

main90401-11021×2iFJ43196903-197109

FOR REAR

47550LCUP KIT, REAR WHEEL CYLINDER

main04906-35060iFJ43,55196903-197309

FOR SINGLE MASTER CYLINDER

main04906-60011iFJ40196903-197309

FOR SINGLE MASTER CYLINDER

main04906-60022iBJ40,FJ40197309-197802

main04906-60024iBJ40,41197802-198007

main04906-60030iFJ55197109-197301

FOR TANDEM MASTER CYLINDER

main04906-60032iBJ44197902-198007

FOR FR DRUM BRAKE

main04906-60040iFJ40197109-197309

FOR TANDEM MASTER CYLINDER

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-35010×4iBJ4#,FJ4#,5#196903-197802

main47555-36020×4iBJ4#,FJ56197802-198007

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-35010iFJ43196903-197109

FOR SINGLE M/C

main47560-60010iFJ40196903-197109

FOR SINGLE MASTER CYLINDER

main47560-60020iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

main47560-69015iFJ43,55197109-197309

FOR SINGLE MASTER CYLINDER

main47560-69025iFJ40197109-197309

FOR SINGLE MASTER CYLINDER

main47560-69035iBJ40,41,FJ40197109-197906

FOR TANDEM MASTER CYLINDER

main47560-69045iFJ55197109-197301

FOR TANDEM MASTER CYLINDER

main47560-69055iBJ41; BJ44197906-198007

FOR FRONT DISC BRAKE

main47560-69065iBJ44,FJ56197906-198007

FOR FRONT DRUM BRAKE

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-35010iFJ43196903-197109

FOR SINGLE MASTER CYLINDER

main47570-60010iFJ40196903-197109

FOR SINGLE MASTER CYLINDER

main47570-69015iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

main47570-69016iFJ43,55197109-197309

FOR SINGLE MASTER CYLINDER

main47570-69025iFJ40197109-197309

FOR SINGLE MASTER CYLINDER

main47570-69035iBJ40,41,FJ40197109-197906

FOR TANDEM MASTER CYLINDER

main47570-69045iFJ55197109-197301

FOR TANDEM MASTER CYLINDER

main47570-69065iBJ41; BJ44197906-198007

FOR FRONT DISC BRAKE

main47570-69075iBJ44,FJ56197906-198007

FOR FRONT DRUM BRAKE

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-35010iFJ43196903-197109

FOR SINGLE MASTER CYLINDER

main47580-60010iFJ40196903-197109

FOR SINGLE MASTER CYLINDER

main47580-60020iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

main47580-69015iFJ43,55197109-197309

FOR SINGLE MASTER CYLINDER

main47580-69025iFJ40197109-197309

FOR SINGLE MASTER CYLINDER

main47580-69035iBJ44197902-197906

FOR FRONT DISC BRAKE

main47580-69045iFJ55197109-197902

FOR TANDEM MASTER CYLINDER

main47580-69055iBJ41; BJ44197906-198007

FOR FRONT DISC BRAKE

main47580-69065iBJ44,FJ56197906-198007

FOR FRONT DRUM BRAKE

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

9015450010

main90154-50010

9111150816

main91111-50816

9324915006

main93249-15006

9411041000

main94110-41000

9451100500

main94511-00500

9451200800

main94512-00800

9451201000

main94512-01000

40 parts on this diagram · 3 diagrams in section
