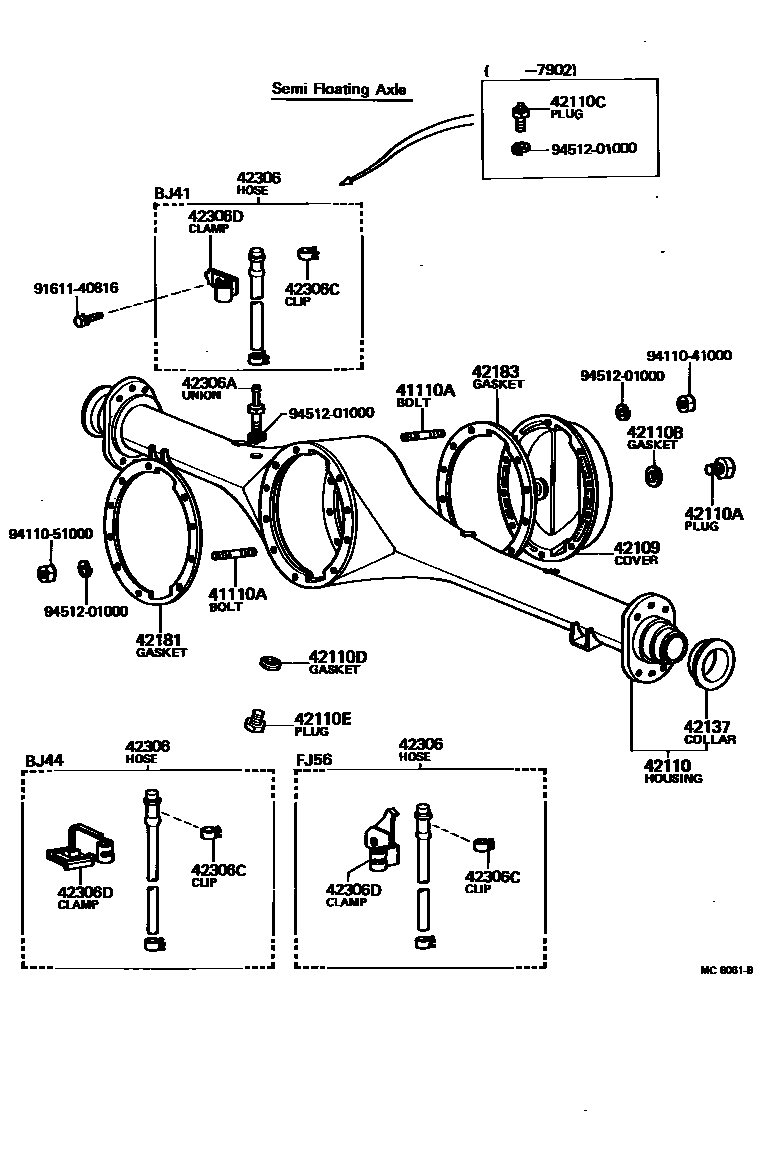

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-60015iBJ4#,FJ4#,55197401-197801

R=37:9=4.111

sub41110-60016

main41110-60016iBJ4#197801-198007

main41110-60025iBJ4#,FJ4#,55197401-197801

R=37:10=3.700

sub41110-60026

main41110-60026iFJ56197801-198007

R=37:10=3.700

main41110-60060iFJ56197909-198007

R=37:10=3.700,L.S.D.

sub41110-60061

main41110-60070iBJ4#197909-198007

R=37:9=4.111,L.S.D.

sub41110-60071

main41110-60906iFJ4#,55196903-197401

R=37:10=3.700

sub41110-60022

main41110-60907iFJ4#,55196903-197401

R=37:9=4.111

sub41110-60012

main41110-60908iFJ40196903-197401

R=37:11=3.363

main41110-60914iFJ40197401-197501

R=37:11=3.363

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-10103iBJ4#,FJ4#,5#196903-198007

main90116-10104iBJ4#,FJ4#,5#196903-198007

sub90116-10075

main90116-10107iBJ4#,FJ4#,5#196903-198007

sub90116-10076

42109COVER SUB-ASSY, REAR AXLE HOUSING

main42109-35020iFJ4#,55196903-197108

sub42134-60020

main42109-60020iBJ4#,FJ56197509-198007

main42134-60020iBJ4#,FJ4#,5#197108-197509

sub42109-60020

42110HOUSING ASSY, REAR AXLE

main42110-60021iFJ40196903-196908

sub42110-60022

sub33104-30011

sub90341-18049

sub94146-41200

main42110-60022iFJ40196908-197111

ISO

sub42110-60023

main42110-60023iFJ40197111-197501

main42110-60024iFJ40197501-197509

main42110-60031iFJ43196903-196908

sub42110-60032

sub33104-30011

sub90341-18049

sub94146-41200

main42110-60032iFJ43196908-197111

ISO

sub42110-60033

main42110-60033iFJ43197111-197509

main42110-60040iFJ55196903-196908

sub42110-60041

sub33104-30011

sub90341-18049

sub94146-41200

main42110-60041iFJ55196908-197111

ISO

sub42110-60042

main42110-60042iFJ5#197111-197902

main42110-60043iFJ56197902-198007

FOR SEMI FLOATING AXLE

main42110-60050iBJ40197402-197501

main42110-60051iBJ40,41197501-198007

FOR SEMI FLOATING AXLE

main42110-60060iBJ43,44197402-198007

FOR SEMI FLOATING AXLE

main42110-60092iBJ41197909-198007

FOR FULL FLOATING AXLE

main42110-60102iBJ44197909-198007

FOR FULL FLOATING AXLE

main42110-60112iFJ56197909-198007

FOR FULL FLOATING AXLE

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18014iFJ4#,55196903-196908

sub90341-18049

main90341-18049iBJ4#,FJ4#,5#196908-198007

ISO

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iBJ4#,FJ4#,5#196903-198007

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03019iFJ4#,55196903-197111

10-1.25PX11-8

main90930-03023iBJ4#,FJ4#,5#196903-197902

10-1.25PX30-14

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iBJ4#,FJ4#,5#196903-198007

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main33104-30010iFJ4#,55196903-196908

sub33104-30011

main90341-18057iBJ4#,FJ4#,5#196908-198007

ISO

42137COLLAR, REAR AXLE HOUSING SIDE

main42137-55010iBJ4#,FJ4#,5#196903-198007

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-36010iBJ4#,FJ4#,5#196903-198007

sub42181-60060

42183GASKET, REAR AXLE HOUSING COVER

main42183-35010iBJ4#,FJ4#,5#196903-198007

42306HOSE SUB-ASSY, REAR AXLE BREATHER

main42306-60010iBJ41197902-198007

main42306-60060iBJ44197902-198007

sub42306-60061

main42306-60070iFJ56197902-198007

42306AUNION (FOR REAR AXLE BREATHER HOUSE)

main90404-10013iBJ4#,FJ56197902-198007

42306CCLIP, HOSE (FOR REAR AXLE BREATHER HOSE)

main96132-30600iBJ4#,FJ56197902-198007

sub96132-51100

42306DCLAMP (FOR REAR AXLE BRATHER HOSE)

main90461-10387iBJ41197902-198007

main90461-10388iBJ44197902-198007

main90461-10389iFJ56197902-198007

9161140816

main91611-40816

9411041000

main94110-41000

9411051000

main94110-51000

9451201000

main94512-01000

20 parts on this diagram · 4 diagrams in section
