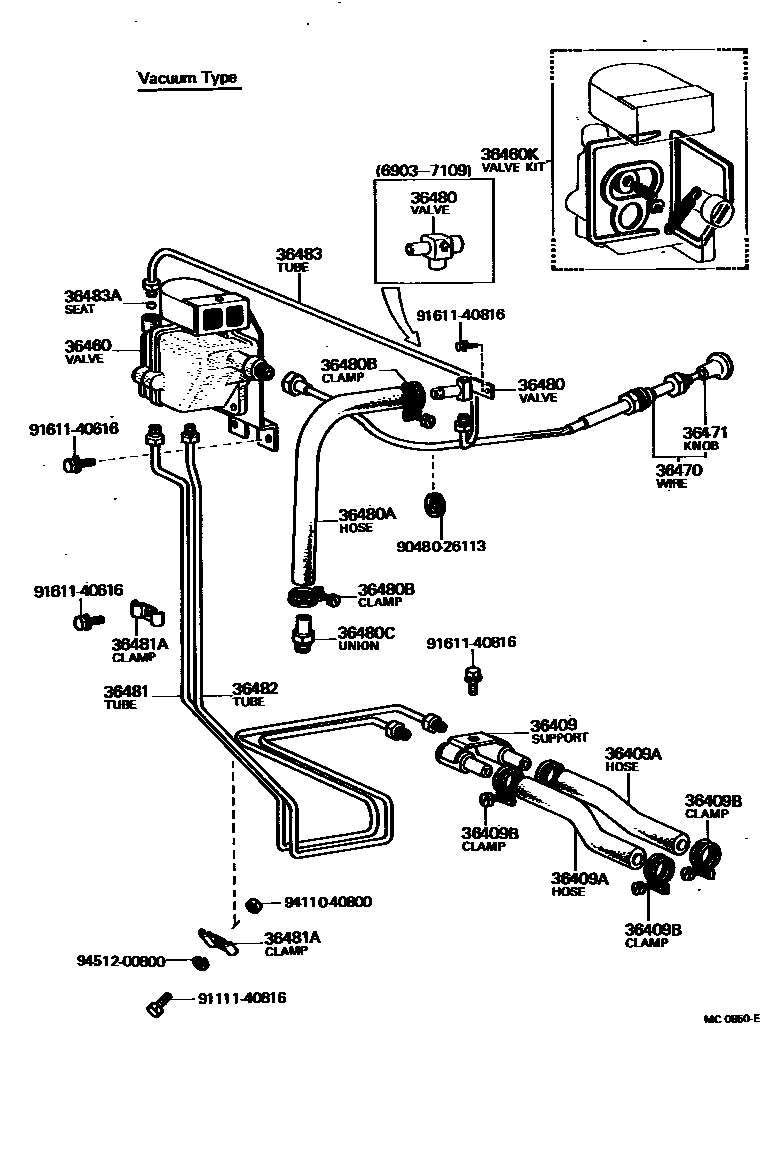

TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT

0001 1 0002 1 0003 1

36409SUPPORT SUB-ASSY, VACUUM TUBE UNION

main36409-60020iFJ4#,55196903-197109

main36409-60021iBJ4#,FJ4#,5#197109-197909

36409AHOSE (FOR VACUUM TUBE)

main90445-17773×2iBJ4#,FJ4#197109-198007

L=160

main90445-17822×2iFJ5#197109-197909

L=120

main90445-21012×2iFJ4#196903-197109

L=160

main90445-21192×2iFJ55196903-197109

L=120

36409BCLAMP, VACUUM TUBE

main90460-18058×4iFJ4#,55197109-197312

main90460-22004×4iFJ4#,55196903-197103

main96111-10220×4iFJ4#,55197103-197109

main96112-10180×4iBJ4#,FJ4#,5#197312-197909

36460VALVE ASSY, VACUUM SHIFT

main36460-60020iFJ55197007-197209

main36460-60030iFJ4#197007-197109

main36460-60031iFJ4#197109-197209

36460KVALVE KIT, VACUUM SHIFT

main04411-55011iFJ4#,55196903-197209

36470WIRE ASSY, VACUUM SHIFT VALVE

main36470-60012iFJ4#196903-197109

main36470-60013iFJ4#197109-197209

main36470-60020iFJ55196903-197209

36471KNOB, FRONT DRIVE SHIFT

main36471-60011iFJ4#196903-197209

main36471-60021iFJ55196903-197209

36480VALVE ASSY, VACUUM CHECK(FOR FRONT DRIVE)

main44730-60010iFJ4#,55196903-197109

main44730-60011iFJ4#,5#197109-197909

36480AHOSE (FOR VACUUM CHECK VALVE)

main90445-17772iFJ4#,55197109-197309

L=340,FOR SINGLE M/C

main90445-17795iFJ40,55197109-197301

L=410,FOR TANDEM M/C

main90445-24160iFJ4#,55196903-197109

L=330,FOR SINGLE M/C

36480BCLAMP (FOR VACUUM CHECK VALVE)

main90460-18058×2iFJ4#,55197109-197312

main90460-25019×2iFJ4#,55196903-197103

main96111-10250×2iFJ4#,55197103-197109

main96112-10180×2iFJ4#,5#197312-197909

36480CUNION (FOR VACUUM CHECK VALVE)

main90404-51001iFJ4#,55196903-197109

FOR SINGLE MASTER CYLINDER

main90404-51006iFJ56197510-197909

main90404-51237iFJ4#,55197109-197309

FOR SINGLE MASTER CYLINDER

main90404-53002iFJ4#,56197501-197510

main90404-54282iFJ4#,55197301-197501

FOR TANDEM MASTER CYLINDER

main90407-09054iFJ40,55197109-197209

FOR TANDEM MASTER CYLINDER

36481TUBE, FRONT DRIVE VACUUM, NO.1

main36481-60012iFJ4#196903-197109

FOR 3-SPEED TRANSMISSION

main36481-60013iFJ4#197109-197209

FOR 3-SPEED TRANSMISSION

main36481-60014iFJ4#197209-197501

FOR 3-SPEED TRANSMISSION

main36481-60021iFJ55196903-197012

FOR 3-SPEED TRANSMISSION

main36481-60022iFJ55197012-197209

FOR 3-SPEED TRANSMISSION

main36481-60023iFJ55197209-197302

FOR 3-SPEED TRANSMISSION

main36481-60024iFJ55197302-197501

FOR 3-SPEED TRANSMISSION

main36481-60040iFJ55197209-197302

FOR 4-SPEED TRANSMISSION

main36481-60041iFJ55197302-197501

FOR 4-SPEED TRANSMISSION

main36481-60042iFJ56197501-197909

main36481-60050iBJ4#,FJ4#197209-197902

FOR 4-SPEED TRANSMISSION

main36481-60051iBJ4#197902-198007

main36481-60060iFJ4#197501-197509

36481ACLAMP (FOR FRONT DRIVE VACUUM TUBE)

main90461-08191×2iBJ4#197902-198007

main90462-12054×2iBJ4#,FJ4#,5#196903-197902

36482TUBE, FRONT DRIVE VACUUM, NO.2

main36482-60012iFJ4#196903-197109

FOR 3-SPEED TRANSMISSION

main36482-60013iFJ4#197109-197209

FOR 3-SPEED TRANSMISSION

main36482-60014iFJ4#197209-197501

FOR 3-SPEED TRANSMISSION

main36482-60021iFJ55196903-197012

FOR 3-SPEED TRANSMISSION

main36482-60022iFJ55197012-197209

FOR 3-SPEED TRANSMISSION

main36482-60023iFJ55197209-197302

FOR 3-SPEED TRANSMISSION

main36482-60024iFJ55197302-197501

FOR 3-SPEED TRANSMISSION

main36482-60040iFJ55197209-197302

FOR 4-SPEED TRANSMISSION

main36482-60041iFJ55197302-197501

FOR 4-SPEED TRANSMISSION

main36482-60042iFJ56197501-197909

main36482-60050iBJ4#,FJ4#197209-197501

FOR 4-SPEED TRANSMISSION

main36482-60060iFJ4#197501-197509

36483TUBE, FRONT DRIVE VACUUM, NO.3

main36483-60012iFJ4#196903-197109

main36483-60013iFJ4#197109-197209

main36483-60014iFJ4#197209-197501

main36483-60015iFJ4#197501-197509

main36483-60021iFJ55196903-197109

main36483-60022iFJ55197109-197209

main36483-60023iFJ55197209-197501

main36483-60024iFJ56197501-197909

main36483-60050iBJ4#197402-197709

main36483-60051iBJ4#197709-198007

36483ASEAT, UNION(FOR DRIVE VACUUM TUBE)

main90410-03016×3iFJ4#,55196903-197209

9048026113

main90480-26113

9111140816

main91111-40816

9161140616

main91611-40616

9161140816

main91611-40816

9411040800

main94110-40800

9451200800

main94512-00800

22 parts on this diagram · 3 diagrams in section
