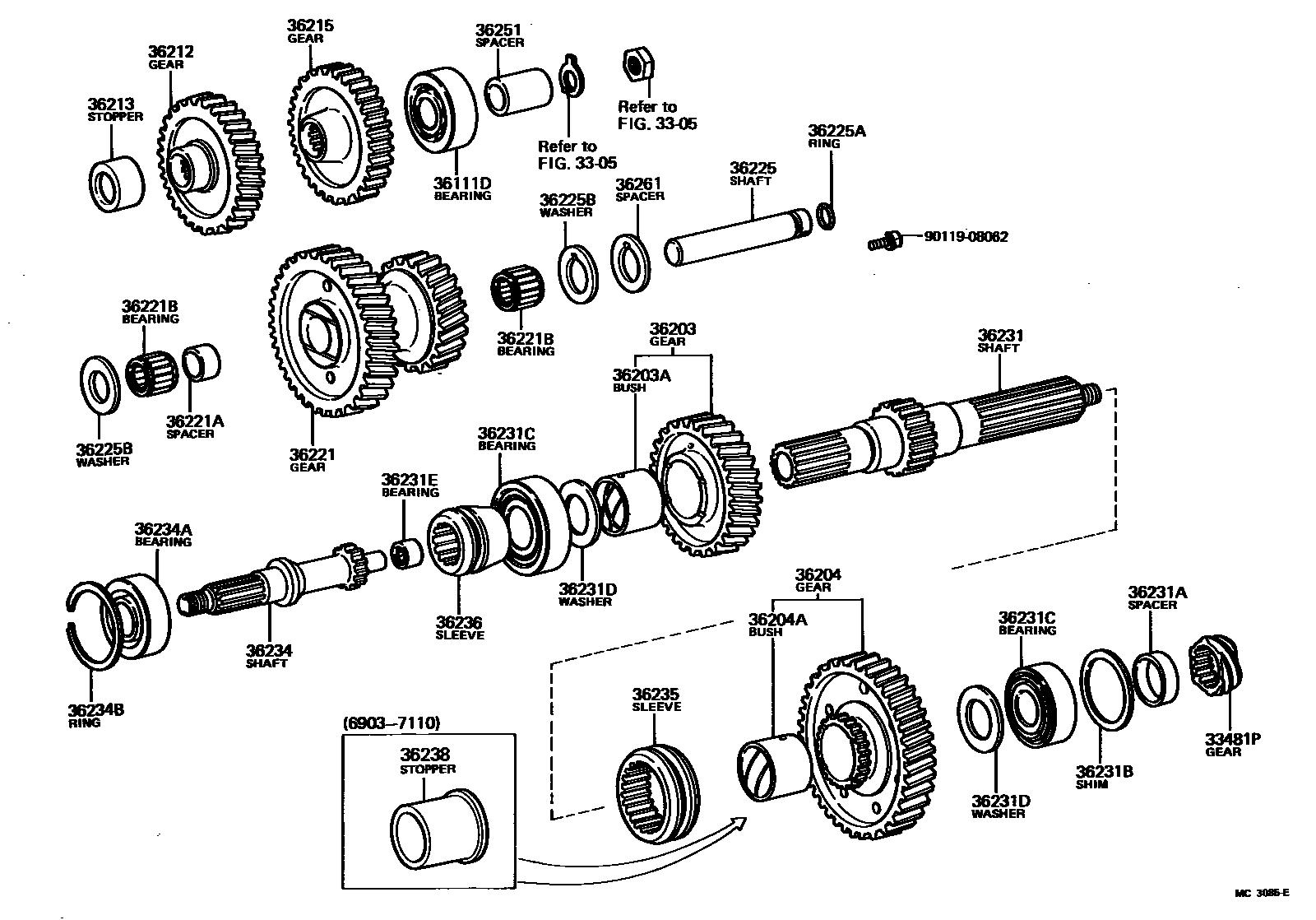

TRANSFER GEAR
3305TRANSMISSION GEAR (MTM)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=6,TAKING 6X18
N=6,TAKING 6X16,6X17
36111DBEARING, TRANSFER REAR AND IDLER SHAFT
FOR 4-SPEED TRANSMISSION
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
N=29
N=31
36203ABUSH, SOLID (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
36204GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
N=43,FOR 3-SPEED TRANSMISSION
N=40,FOR 4-SPEED TRANSMISSION
N=40
36204ABUSH, SOLID (FOR TRANSFER LOW SPEED OUTPUT GEAR)
36212GEAR, TRANSFER INPUT
N=29
N=29,FOR 4-SPEED TRANSMISSION
N=31
36213STOPPER, TRANSFER INPUT GEAR
36215GEAR, POWER TAKE-OFF DRIVE
N=31
N=31,FOR 4-SPEED TRANSMISSION
36221GEAR, TRANSFER IDLER
N=39,25
N=39,27,FOR 4-SPEED T/M
N=41,27
36221ASPACER(FOR TRANSFER IDLER GEAR)
36221BBEARING (FOR TRANSFER IDLER GEAR)
36225SHAFT, TRANSFER IDLER GEAR
36225ARING, O (FOR TRANSFER IDLER SHAFT)
36225BWASHER (FOR TRANSFER IDLER SHAFT)
36231SHAFT, TRANSFER OUTPUT, REAR
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
T=0.10
T=0.15
T=0.20
T=0.25
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
36231DWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36238STOPPER, TRANSFER HIGH & LOW CLUTCH SLEEVE
36251SPACER, TRANSFER INPUT SHAFT
FOR 4-SPEED TRANSMISSION
36261SPACER, TRANSFER IDLER GEAR
T=1.20-1.30
T=1.30-1.40
T=1.40-1.50
9011908062
main90119-08062
31 parts on this diagram · 1 diagram in section
