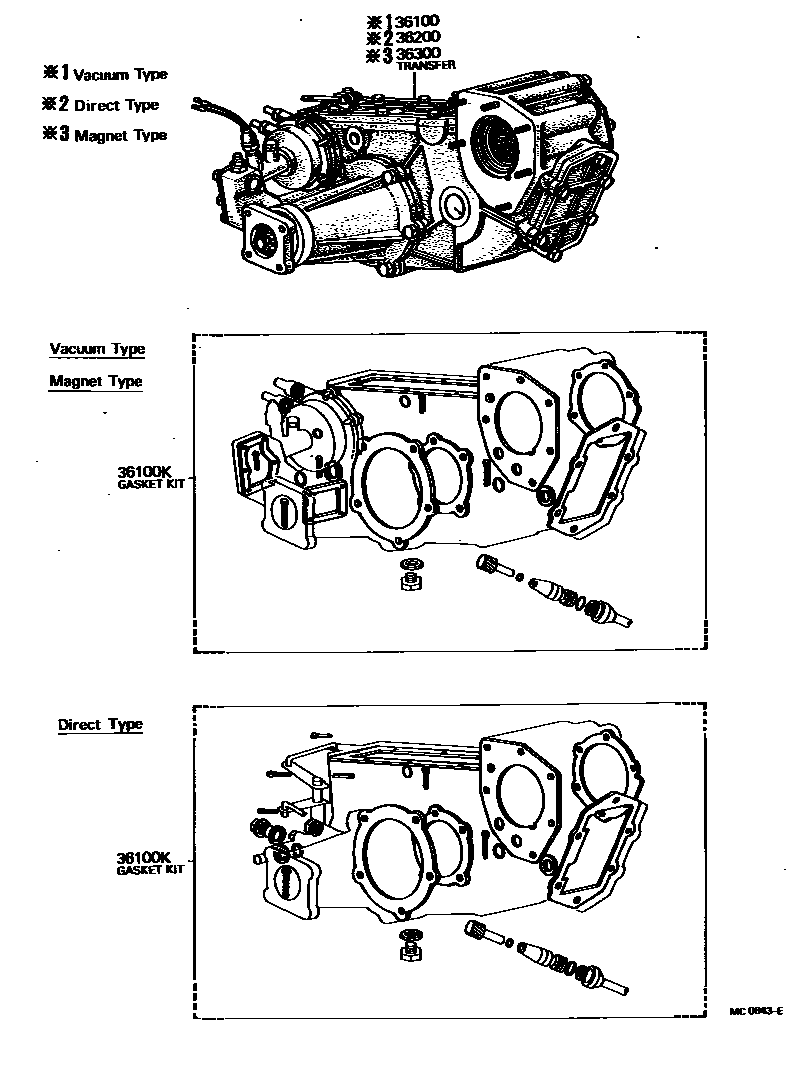

TRANSFER ASSEMBLY & GASKET KIT

36100TRANSFER ASSY

main36100-60914iFJ55196903-197209

SMG.R=15:6,16:6,17:6

main36100-60915iFJ40196903-197007

SMG.R=18:6

main36100-60916iFJ4#196903-197007

SMG.R=17:6

main36100-60917iFJ4#196903-197007

SMG.R=16:6

main36100-60918iFJ4#196903-197007

SMG.R=15:6

main36100-60923iFJ40197007-197109

SMG.R=18:6

main36100-60924iFJ4#197007-197109

SMG.R=17:6

main36100-60925iFJ4#197007-197109

SMG.R=16:6

main36100-60926iFJ4#197007-197109

SMG.R=15:6

main36100-60935iFJ40197109-197209

SMG.R=18:6

main36100-60936iFJ4#197109-197209

SMG.R=15:6,16:6,17:6

36100KGASKET KIT, TRANSFER OVERHAUL

main04362-60021iBJ4#,FJ4#,5#196903-198007

FOR VACUUM OR MAGNET TYPE

main04362-60030iBJ4#,FJ4#,5#196903-197902

FOR DIRECT TYPE

36200TRANSFER, W/O DRIVE GEAR (DIRECT TYPE)

main36200-60915iFJ55196903-197401

SMG.R=15:6,16:6,17:6FOR 3-T/M

main36200-60916iFJ55196903-197309

SMG.R=15:6,16:6,17:6FOR 4-T/M

main36200-60917iFJ4#196903-197007

SMG.R=18:6

main36200-60918iFJ4#196903-197007

SMG.R=17:6

main36200-60919iFJ4#196903-197007

SMG.R=16:6

main36200-60920iFJ4#196903-197007

SMG.R=15:6

main36200-60925iFJ4#197007-197109

SMG.R=18:6

main36200-60926iFJ4#197007-197109

SMG.R=17:6

main36200-60927iFJ4#197007-197109

SMG.R=16:6

main36200-60928iFJ4#197007-197109

SMG.R=15:6

main36200-60935iFJ40197109-197401

SMG.R=18:6,FOR 3-SPEED T/M

main36200-60936iFJ4#197109-197401

SMG.R=15:6,16:6,17:6FOR 3-T/M

main36200-60943iFJ4#197209-197309

SMG.R=15:6,16:6,17:6FOR 4-T/M

main36200-60947iFJ40197209-197309

SMG.R=18:6,FOR 4-SPEED T/M

main36200-60955iFJ40197309-197401

SMG.R=18:6,FOR 4-SPEED T/M

main36200-60956iFJ4#,55197309-197401

SMG.R=15:6,16:6,17:6FOR 4-T/M

main36200-60957iFJ40197401-197501

SMG.R=18:6,FOR 3-SPEED T/M

main36200-60958iFJ4#,55197401-197501

SMG.R=15:6,16:6,17:6FOR 3-T/M

main36200-60959iBJ4#,FJ40197401-197501

SMG.R=18:6,FOR 4-SPEED T/M

main36200-60960iBJ4#,FJ4#,5#197401-197504

SMG.R=15:6,16:6,17:6FOR 4-T/M

main36200-60964iBJ4#,FJ4#,56197504-197801

main36200-60968iBJ4#,FJ56197801-197902

36300TRANSFER, W/O DRIVE GEAR (MAGNET TYPE)

main36300-60901iFJ40197209-197401

SMG.R=18:6,FOR 3-SPEED T/M

main36300-60902iFJ4#197209-197401

SMG.R=15:6,16:6,17:6FOR 3-T/M

main36300-60907iFJ55197209-197401

SMG.R=15:6,16:6,17:6FOR 3-T/M

main36300-60910iFJ40197209-197309

SMG.R=18:6,FOR 4-SPEED T/M

main36300-60911iFJ4#197209-197309

SMG.R=15:6,16:6,17:6FOR 4-T/M

main36300-60914iFJ55197209-197309

SMG.R=15:6,16:6,17:6FOR 4-T/M

main36300-60921iFJ40197309-197401

SMG.R=18:6,FOR 4-SPEED T/M

main36300-60922iFJ4#,55197309-197401

SMG.R=15:6,16:6,17:6FOR 4-T/M

main36300-60923iFJ40197401-197501

SMG.R=18:6,FOR 3-SPEED T/M

main36300-60924iFJ4#,55197401-197501

SMG.R=15:6,16:6,17:6FOR 3-T/M

main36300-60925iBJ4#,FJ40197401-197501

SMG.R=18:6,FOR 4-SPEED T/M

main36300-60926iBJ4#,FJ4#,5#197401-197504

SMG.R=15:6,16:6,17:6FOR 4-T/M

main36300-60927iBJ4#,FJ4#,56197504-197801

main36300-60932iBJ4#,FJ56197801-197909

4 parts on this diagram · 1 diagram in section
