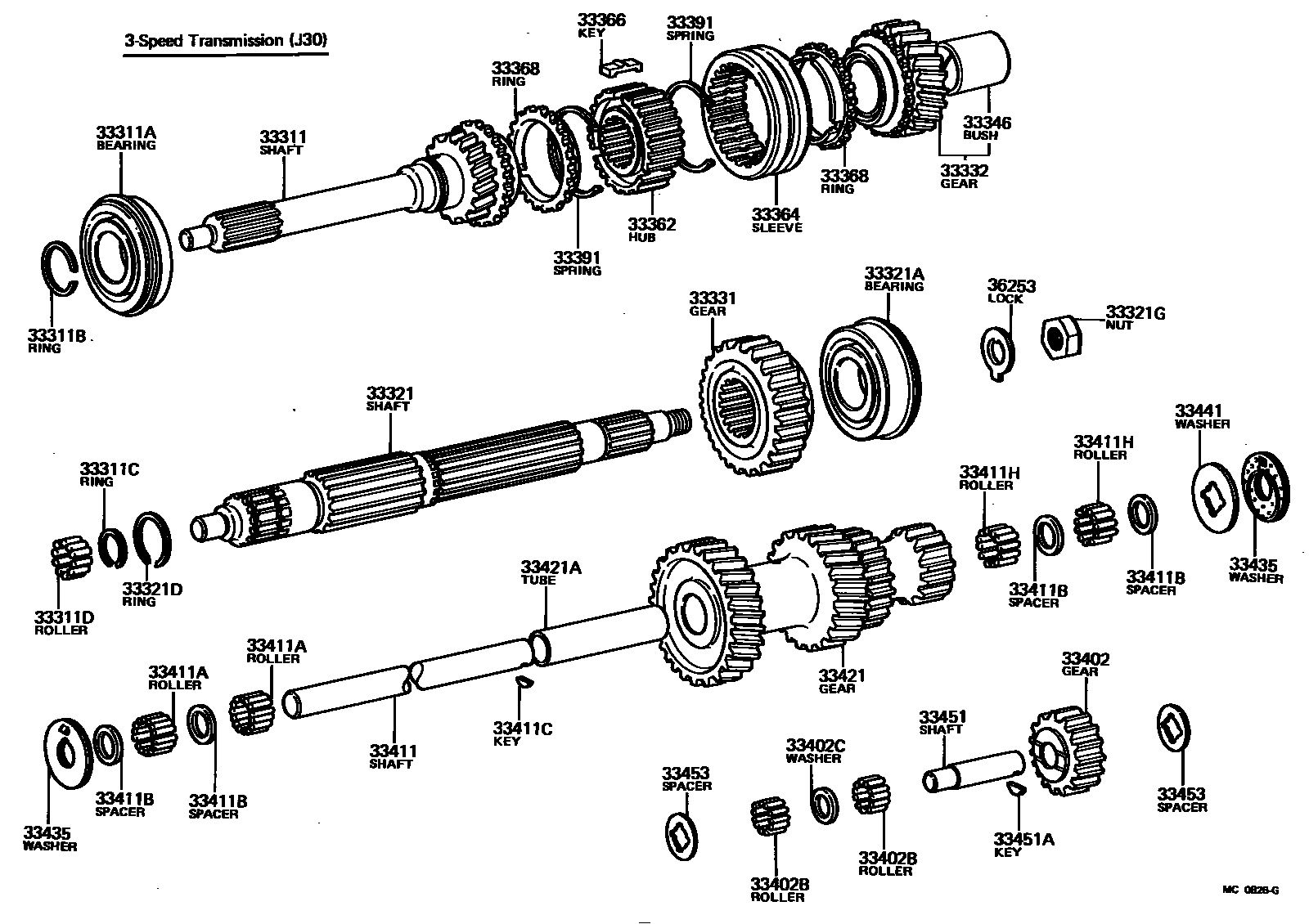

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1

33311SHAFT, INPUT

main33311-60031iFJ55196903-197110

N=21,FOR 4-SPEED TRANSMISSION

main33311-60032iFJ4#,55197209-197309

N=22,FOR 4-SPEED TRANSMISSION

main33311-60033iFJ4#,55197309-197408

N=22,FOR 4-SPEED TRANSMISSION

main33311-60034iFJ4#,5#197408-198007

N=22,FOR 4-SPEED TRANSMISSION

main33311-60050iBJ4#197402-198007

N=22,FOR 4-SPEED TRANSMISSION

main33311-61011iFJ4#,55196903-197009

N=17,FOR 3-SPEED TRANSMISSION

main33311-61012iFJ4#,55197009-197408

N=17,FOR 3-SPEED TRANSMISSION

main33311-61013iFJ4#,55197408-197501

N=17,FOR 3-SPEED TRANSMISSION

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-35021iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main90363-40012iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

main97154-06308iBJ4#,FJ4#,5#197309-198007

FOR 4-SPEED TRANSMISSION

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-33010iFJ4#,55196903-197501

T=2.43-2.57,FOR 3-SPEED T/M

main90520-33011iFJ4#,55196903-197501

T=2.30-2.42,FOR 3-SPEED T/M

main90520-36015iBJ4#,FJ4#,5#197209-198007

main90520-36016iBJ4#,FJ4#,5#197209-198007

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main90521-33006iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main90560-26045iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

33311DBEARING, INPUT SHAFT

main90361-06007×14iFJ4#,55196903-197302

FOR 3-SPEED TRANSMISSION

main90361-06010×18iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

main90361-06047×14iFJ4#,55197302-197501

FOR 3-SPEED TRANSMISSION

main90361-06049×17iBJ4#,FJ4#,5#197309-198007

FOR 4-SPEED TRANSMISSION

33321SHAFT, OUTPUT

main33321-60020iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main33321-60040iFJ55196903-197012

FOR 4-SPEED TRANSMISSION

main33321-60042iFJ4#,55197209-197309

FOR 4-SPEED TRANSMISSION

main33321-60043iBJ4#,FJ4#,5#197309-198007

FOR 4-SPEED TRANSMISSION

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-35059iFJ55197012-197209

FOR 4-SPEED TRANSMISSION

main97153-06307iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main97153-06308iFJ55196903-197012

main97154-06308iBJ4#,FJ4#,5#197309-198007

FOR 4-SPEED TRANSMISSION

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-32101iFJ4#,55197209-197309

T=2.40-2.50,FOR 4-SPEED T/M

main90520-32102iFJ4#,55197209-197309

T=2.50-2.60,FOR 4-SPEED T/M

main90520-32119iFJ55196903-197209

T=2.60-2.70,FOR 4-SPEED T/M

main90520-33010iFJ4#,55196903-197103

T=2.43-2.57,FOR 3-SPEED T/M

main90520-33011iFJ4#,55196903-197103

T=2.30-2.42,FOR 3-SPEED T/M

main90520-33132iFJ4#,55197103-197501

main90520-33172iFJ4#,55197103-197501

main90520-36250iBJ4#,FJ4#,5#197309-198007

main90520-36251iBJ4#,FJ4#,5#197309-198007

main90520-36252iBJ4#,FJ4#,5#197309-198007

main90520-36253iBJ4#,FJ4#,5#197309-198007

main90520-36254iBJ4#,FJ4#,5#197309-198007

main90520-36255iBJ4#,FJ4#,5#197309-198007

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90170-19022iFJ4#,55196903-197309

main90179-20061iBJ4#,FJ4#,5#197309-198007

FOR 4-SPEED TRANSMISSION

33331GEAR, REVERSE

main33331-60020iFJ4#,55196903-197501

N=25

33332GEAR, 2ND

main33304-61011iFJ4#,55196903-196910

N=23,3-SPEED TRANSMISSION

main33304-61012iFJ4#,55196910-197009

N=23,3-SPEED TRANSMISSION

main33304-61013iFJ4#,55197009-197501

N=23,FOR 3-SPEED TRANSMISSION

main33332-36011iFJ55196903-197209

N=33,FOR 4-SPEED TRANSMISSION

main33332-36012iBJ4#,FJ4#,5#197309-198007

N=33,FOR 4-SPEED TRANSMISSION

33346BUSH, 2ND GEAR

main90999-70017iFJ4#,55196903-197501

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-35010iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main33362-36011iFJ55196903-197011

FOR 4-SPEED TRANSMISSION

main33362-36012iFJ4#,55197209-197309

FOR 4-SPEED TRANSMISSION

main33362-36020iBJ4#,FJ4#,55197309-197501

FOR 4-SPEED TRANSMISSION

main33362-36021iBJ4#,FJ4#,56197501-198007

33364SLEEVE, TRANSMISSION HUB, NO.2

main33363-35010iFJ4#,55196903-196910

FOR 3-SPEED TRANSMISSION

main33364-36030iFJ4#,55197209-197309

FOR 4-SPEED TRANSMISSION

main33364-36040iFJ4#,55196910-197501

FOR 3-SPEED TRANSMISSION

main33364-36050iFJ4#,55197309-197310

FOR 4-SPEED TRANSMISSION

main33364-36051iBJ4#,FJ4#,5#197310-198007

FOR 4-SPEED TRANSMISSION

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-35011×3iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main33366-36010×3iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

main33366-36020×3iBJ4#,FJ4#,5#197309-198007

FOR 4-SPEED TRANSMISSION

33368RING, SYNCHRONIZER, NO.2

main33368-20012×2iBJ4#,FJ4#,5#197309-198007

FOR 4-SPEED TRANSMISSION

main33368-35011×2iFJ4#,55196903-197012

FOR 3-SPEED TRANSMISSION

main33368-35012×2iFJ4#,55197012-197501

FOR 3-SPEED TRANSMISSION

main33368-36011×2iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-20010×2iBJ4#,FJ4#,5#197309-198007

FOR 4-SPEED TRANSMISSION

main33371-35010×2iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main33371-55010×2iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-36020iFJ55196903-197209

N=28,FOR 4-SPEED TRANSMISSION

main33402-36021iBJ4#,FJ4#,5#197309-198007

N=28,FOR 4-SPEED TRANSMISSION

main33461-60020iFJ4#,55196903-197501

N=13,FOR 3-SPEED TRANSMISSION

33402BROLLER (FOR REVERSE IDLER)

main90361-03023×56iFJ4#,55196903-197501

33402CWASHER, PLATE (FOR REVERSE IDLER)

main90201-21055iFJ4#,55196903-197501

33411COUNTERSHAFT

main33411-36010iFJ55196903-197209

N=21,14,14,FOR 4-SPEED T/M

main33411-60020iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90361-03017×48iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main97153-06332iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

33411BSPACER(FOR COUNTER GEAR BEARING)

main33431-36010iFJ4#,55197209-197309

FOR 4-SPEED TRANSMISSION

main90201-20050×4iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)

main90280-03005iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main90280-10016×2iFJ4#,55197209-197309

FOR 4-SPEED TRANSMISSION

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90361-03017×48iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main90365-32010iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

33421GEAR, COUNTER

main33411-60030iBJ4#,FJ4#,5#197309-198007

N=37,31,21,14,14 FOR 4-T/M

main33421-36020iFJ55196903-197110

N=38,FOR 4-SPEED TRANSMISSION

main33421-60020iFJ4#,55196903-197501

N=30,24,16,12,FOR 3-SPEED T/M

main33421-60030iFJ4#,55197209-197309

N=37,FOR 4-SPEED TRANSMISSION

33421ATUBE(FOR COUNTER GEAR)

main90440-24006iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main90560-45252iFJ55196903-197209

FOR 4-SPEED TRANSHISSION

33435WASHER, COUNTER GEAR CASE SIDE THRUST

main33435-61010×2iFJ4#,55196903-197501

33441WASHER, COUNTER GEAR SIDE THRUST, NO.1

main33441-61010iFJ4#,55196903-197501

T=1.45-1.50

main33442-61010iFJ4#,55196903-197501

T=1.50-1.55

main33443-61010iFJ4#,55196903-197501

T=1.55-1.60

33451SHAFT, REVERSE IDLER GEAR

main33451-36020iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

main33451-36021iBJ4#,FJ4#,5#197309-198007

FOR 4-SPEED TRANSMISSION

main33451-60010iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)

main90280-03005iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main90280-03015iBJ4#,FJ4#,5#197209-197608

FOR 4-SPEED TRANSMISSION

main95161-10322iBJ4#,FJ56197608-198007

33453SPACER, REVERSE IDLER GEAR SHAFT

main33462-60010×2iFJ4#,55196903-197501

36253LOCK, INPUT SHAFT NUT

main36253-60010iFJ4#,55196903-197501

33 parts on this diagram · 3 diagrams in section
