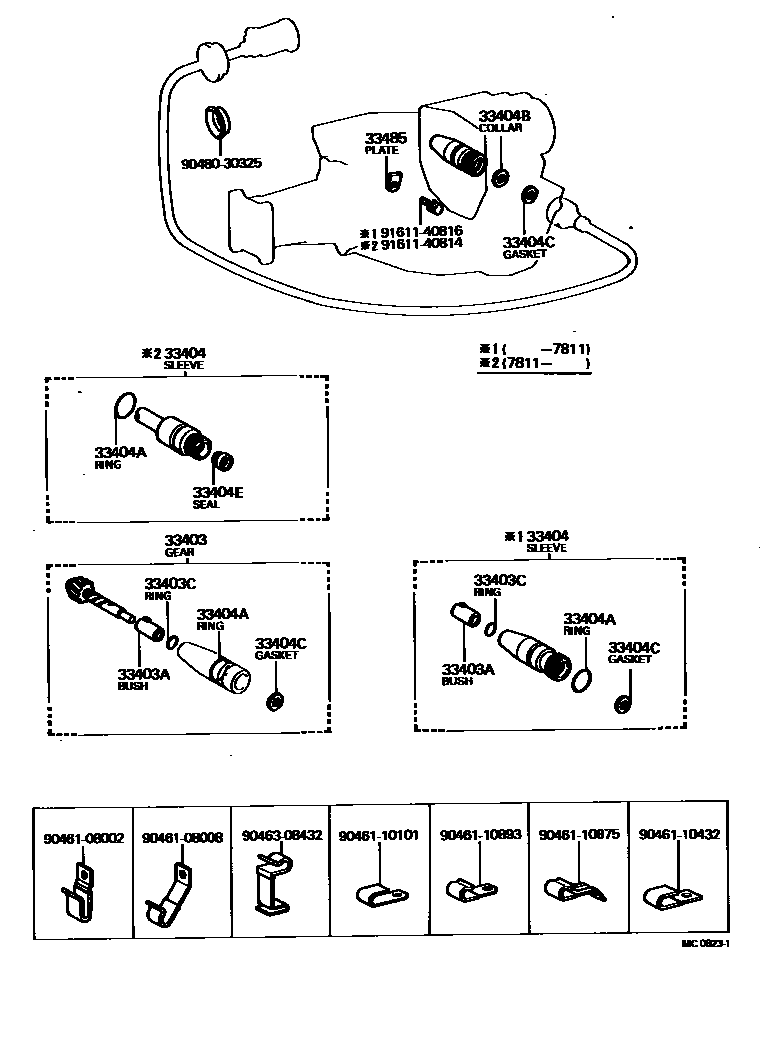

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-69016iBJ4#,FJ4#,5#196903-197902

main33403-69055iBJ4#,FJ4#,5#196903-197902

main33403-69065iFJ4#196903-197109

main33403-69075iBJ4#,FJ4#,5#196903-197902

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iBJ4#,FJ4#,5#196903-197811

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iBJ4#,FJ4#,5#196903-197811

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iBJ4#,FJ56197811-198007

main33404-39016iBJ4#,FJ4#,5#196903-197811

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iBJ4#,FJ4#,5#196903-198007

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iBJ4#,FJ4#,5#196903-197811

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iBJ4#,FJ4#,5#196903-197811

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBJ4#,FJ56197811-198007

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iBJ4#,FJ4#,5#196903-197811

main33485-30020iBJ4#,FJ56197811-198007

9046108002

main90461-08002

9046108008

main90461-08008

9046110101

main90461-10101

9046110432

main90461-10432

9046110875

main90461-10875

9046110893

main90461-10893

9046308432

main90463-08432

9048030325

main90480-30325

9161140814

main91611-40814

9161140816

main91611-40816

19 parts on this diagram · 1 diagram in section
