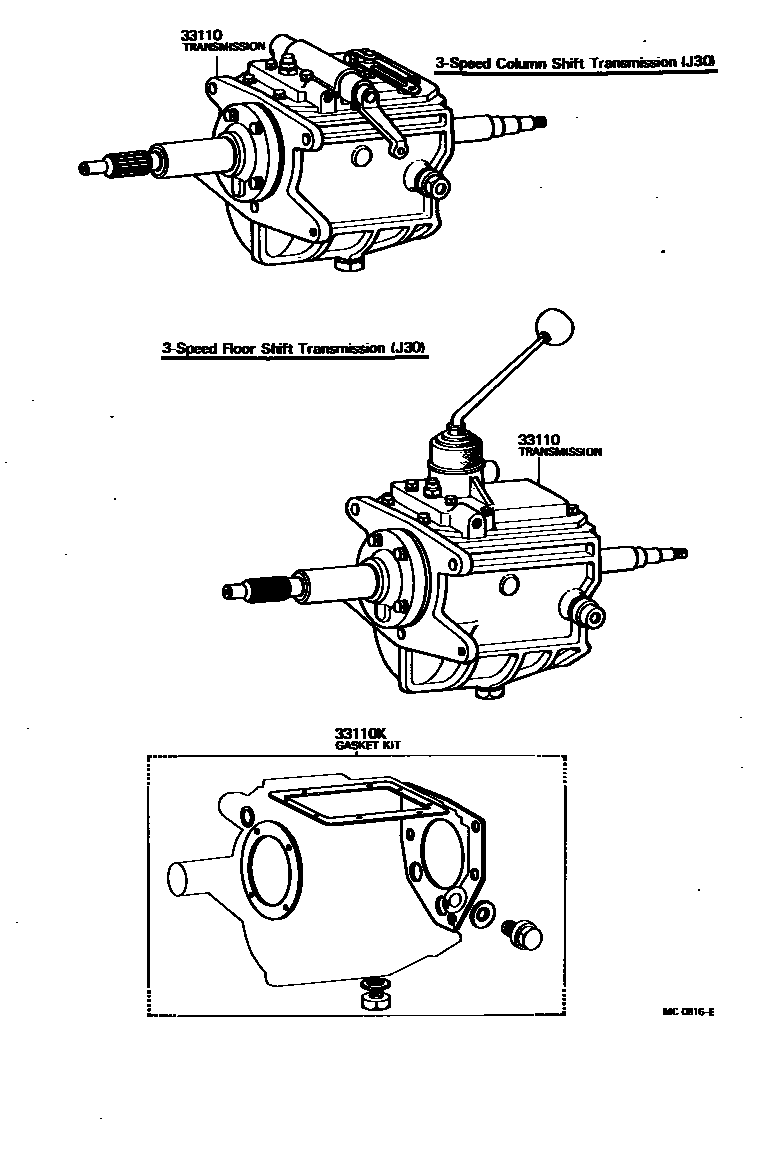

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1

33110TRANSMISSION ASSY, MANUAL

main33110-60020iFJ4#196903-197209

3-SPEED COLUMN SHIFT T/M

main33110-60050iFJ55196903-197209

3-SPEED COLUMN SHIFT T/M

main33120-60020iFJ4#196903-197209

3-SPEED FLOOR SHIFT T/M

main33120-60021iFJ4#197209-197501

3-SPEED TRANSMISSION

main33120-60030iFJ55196903-197209

3-SPEED FLOOR SHIFT T/M

main33120-60040iFJ55196903-197110

4-SPEED TRANSMISSION

main33120-60041iFJ55197110-197209

4-SPEED TRANSMISSION

main33120-60042iFJ4#197209-197309

4-SPEED TRANSMISSION

main33120-60043iFJ4#197309-197509

4-SPEED TRANSMISSION

main33120-60090iFJ55197209-197501

3-SPEED TRANSMISSION

main33120-60110iFJ55197209-197309

4-SPEED TRANSMISSION

main33120-60111iFJ5#197309-197709

4-SPEED TRANSMISSION

main33120-60150iBJ4#197402-197704

4-SPEED TRANSMISSION

main33120-60151iBJ4#197704-197709

4-SPEED TRANSMISSION

main33120-60902iFJ56197709-198007

main33120-60906iBJ4#197709-198007

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-60020iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main04331-60030iFJ55196903-197209

FOR 4-SPEED TRANSMISSION

main04331-60031iBJ4#,FJ4#,5#197309-197604

FOR 4-SPEED TRANSMISSION

main04331-60032iBJ4#,FJ56197604-198007

FOR 4-SPEED TRANSMISSION

2 parts on this diagram · 3 diagrams in section
