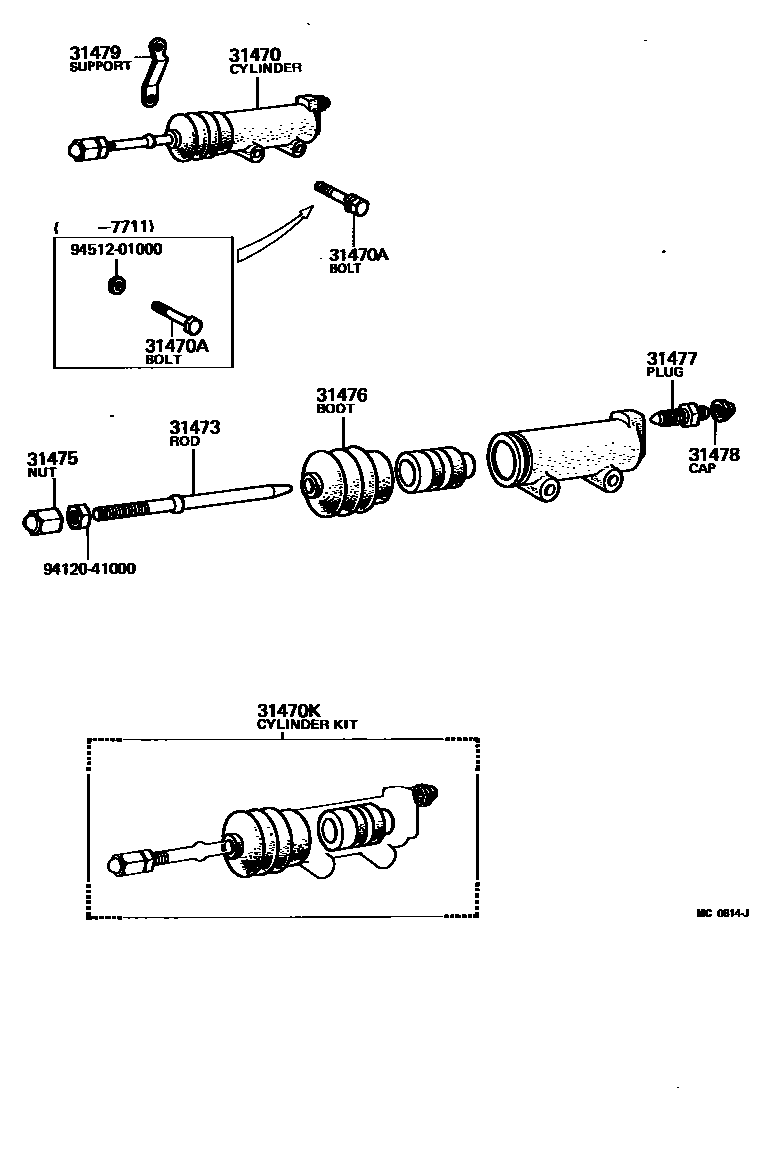

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60021196903-197007

main31470-60022197007-197408

main31470-60030196903-197408

main31470-60050197402-198007

main31470-60071197408-198007

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91111-41055197211-197711

main91111-41056196903-197211

main91111-51063196903-197211

main91111-51065197211-197711

main91611-40828197402-198007

main91611-41055197711-198007

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-40021197402-198007

main04313-60011196903-197408

main04313-60020197408-198007

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30020197402-198007

main31473-60021196903-197408

main31473-60031196903-197408

main31473-60050197408-198007

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31474-60010196903-197408

main31475-60010197408-198007

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-40010197402-198007

main31476-60020196903-197408

main31476-60031197408-198007

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010197402-198007

main47547-30020196903-197408

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010197206-198007

main47548-20010196903-197206

31479SUPPORT, CLUTCH RELEASE CYLINDER

main31479-60010196903-197408

9412041000

main94120-41000

9451201000

main94512-01000

11 parts on this diagram · 3 diagrams in section
