FUEL FILTER

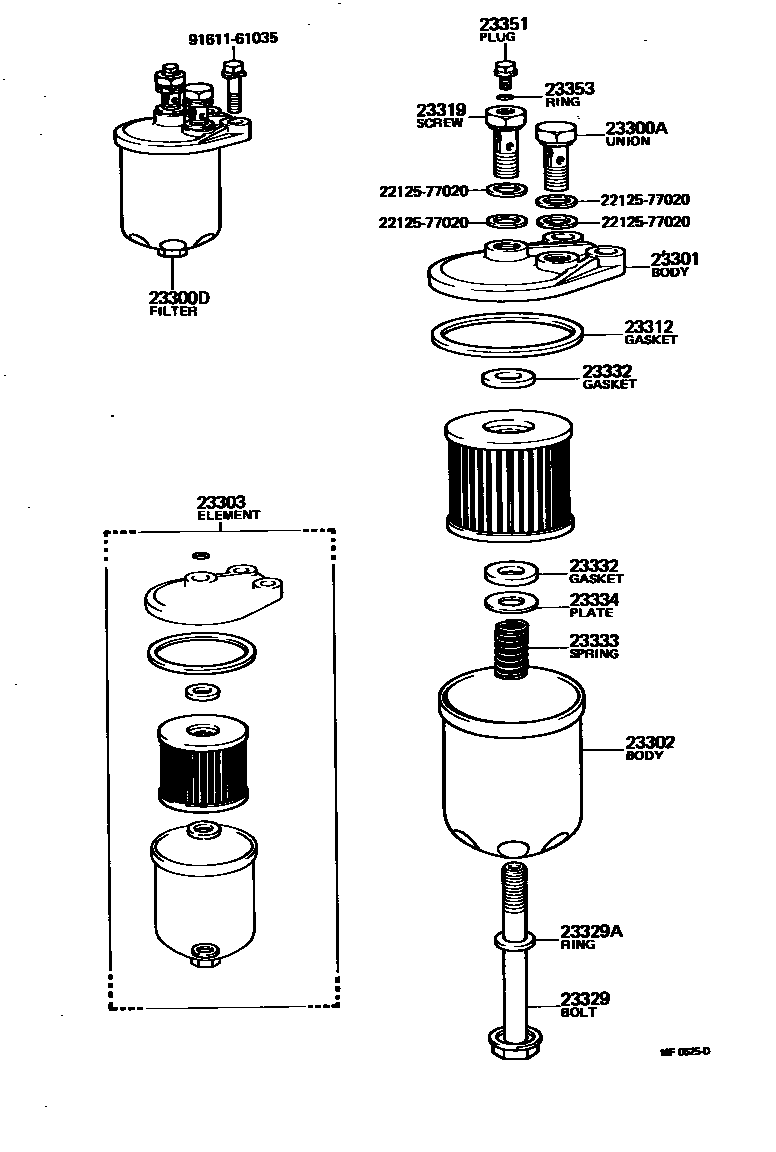

Parts diagram

23300FILTER ASSY, FUEL

main23030-24011i197007-197209

main23030-60030i197209-197902

main23300-30011i196903-197001

main23300-30012i197001-197007

main23300-36020i197902-198007

main23300-38010i197909-198007

FOR LARGE TYPE

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90401-14060i197402-198007

main90404-13105×2i196903-197007

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-56020i197402-197502

main23300-56021i197502-197701

main23300-56022i197701-197709

main23300-56030i197709-197906

main23300-56031i197906-198007

23301BODY SUB-ASSY, FUEL FILTER

main23301-30010i196903-197001

main23301-30011i197001-197007

main23311-56020i197402-197502

main23311-56021i197502-197709

main23311-56030i197709-197906

main23311-56031i197906-198007

23302BODY SUB-ASSY, FUEL FILTER, LOWER

main23302-48012i197402-197502

23303ELEMENT SUB-ASSY, FUEL FILTER

main04234-30010i196903-197007

main04234-48011i197402-197502

main23302-56021i197502-197701

main23302-56022i197701-197709

main23303-56030i197709-197906

main23303-56031i197906-198007

23312GASKET, FILTER BOWL

main23312-30010i196903-197007

main23312-48012i197402-197502

main23312-56021i197502-198007

23319SCREW, FUEL PIPE FOLLOW

main23319-46010i197402-198007

23329BOLT, FUEL FILTER CENTER

main23304-48012i197402-197502

23329ARING, O(FOR FUEL FILTER CENTER BOLT)

main23344-46010i197402-197502

23332GASKET, ELEMENT(FOR FUEL FILTER)

main23332-48012×2i197402-197502

23333SPRING, FILTER ELEMENT SET

main23333-30010i196903-197007

main23333-48012i197402-197502

23334PLATE, SPRING(FOR FILTER ELEMENT)

main23334-48012i197402-197502

23351PLUG, AIR VENT

main23351-46010i197402-198007

23353RING, O(FOR AIR VENT PLUG)

main23353-46010i197402-198007

2212577020

main22125-77020

9161161035

main91611-61035

17 parts on this diagram · 4 diagrams in section
