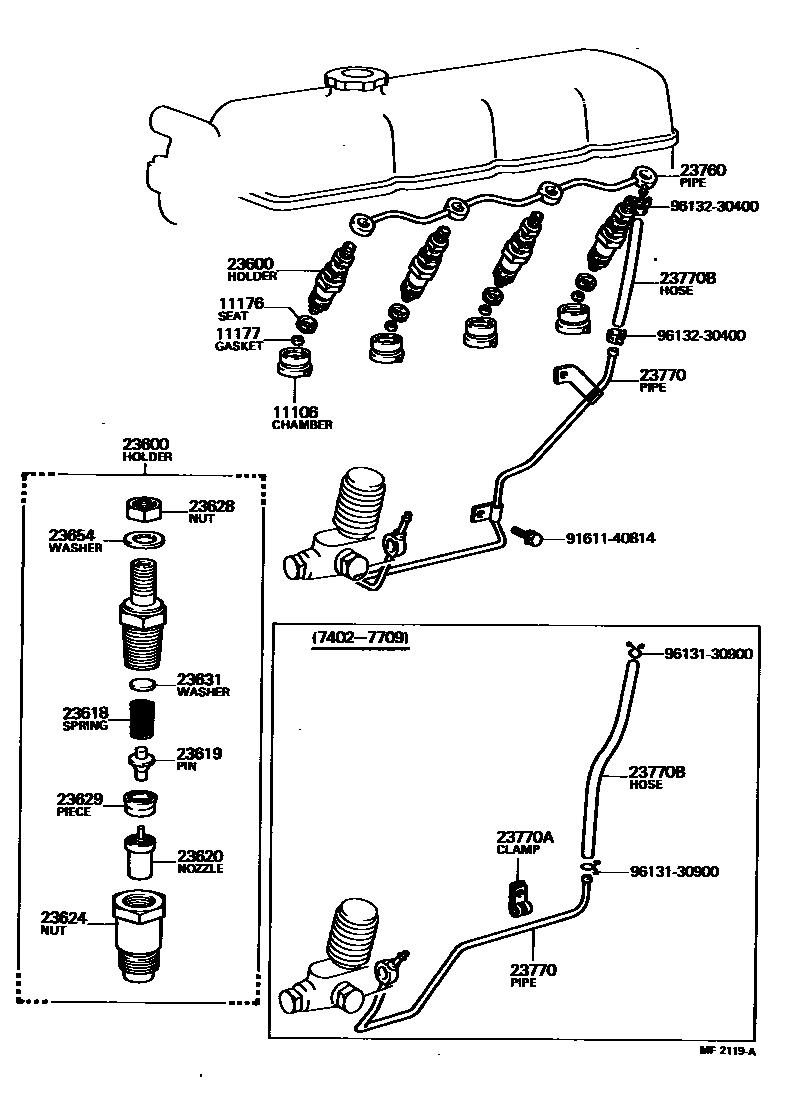

INJECTION NOZZLE

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-56010×4iB,2B..BJ4#197402-198007

11176SEAT, INJECTION NOZZLE

main11176-56010×4iB,2B..BJ4#197402-198007

11177GASKET, INJECTION NOZZLE SEAT

main11177-56010×4iB,2B..BJ4#197402-198007

23600HOLDER & NOZZLE SET, NOZZLE

main23600-56010×4iB..BJ4#197402-197503

main23600-56011×4iB,2B..BJ4#197503-198007

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-46010×4iB..BJ4#197402-197503

main23618-56010×4iB,2B..BJ4#197503-198007

23619PIN, NOZZLE HOLDER PRESSURE

main23619-46010×4iB,2B..BJ4#197402-198007

23620NOZZLE ASSY

main23620-54010×4iB,2B..BJ4#197708-198007

main23620-76010×4iB..BJ4#197402-197708

23624NUT, NOZZLE RETAINING

main23624-47011×4iB,2B..BJ4#197402-198007

23628NUT(FOR RING PACKING SETTING)

main23628-46010×4iB,2B..BJ4#197402-198007

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-46010×4iB,2B..BJ4#197402-198007

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-46010iB,2B..BJ4#197402-198007

main23632-46010iB,2B..BJ4#197402-198007

main23633-46010iB,2B..BJ4#197402-198007

main23634-46010iB,2B..BJ4#197402-198007

main23635-46010iB,2B..BJ4#197402-198007

main23636-46010iB,2B..BJ4#197402-198007

main23637-46010iB,2B..BJ4#197402-198007

main23638-46010iB,2B..BJ4#197402-198007

main23639-46010iB,2B..BJ4#197402-198007

main23641-46010iB,2B..BJ4#197402-198007

main23642-46010iB,2B..BJ4#197402-198007

main23643-46010iB,2B..BJ4#197402-198007

main23644-46010iB,2B..BJ4#197402-198007

main23645-46010iB,2B..BJ4#197402-198007

main23646-46010iB,2B..BJ4#197402-198007

main23647-46010iB,2B..BJ4#197402-198007

main23648-46010iB,2B..BJ4#197402-198007

main23649-46010iB,2B..BJ4#197402-198007

main23651-46010iB,2B..BJ4#197402-198007

main23652-46010iB,2B..BJ4#197402-198007

23654WASHER(FOR RING PACKING)

main23654-46010×4iB,2B..BJ4#197402-198007

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-56010iB..BJ4#197402-197709

main23760-56020iB,2B..BJ4#197709-198007

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-56011iB..BJ4#197402-197709

main23770-56020iB,2B..BJ4#197709-198007

23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)

main90461-06179iB..BJ4#197402-197709

23770BHOSE, FUEL

main95311-04028iB..BJ4#197402-197709

main95331-04020iB,2B..BJ4#197709-198004

main95332-04020i2B..BJ4#198004-198007

9161140814

main91611-40814

9613130900

main96131-30900

9613230400

main96132-30400

19 parts on this diagram · 1 diagram in section
