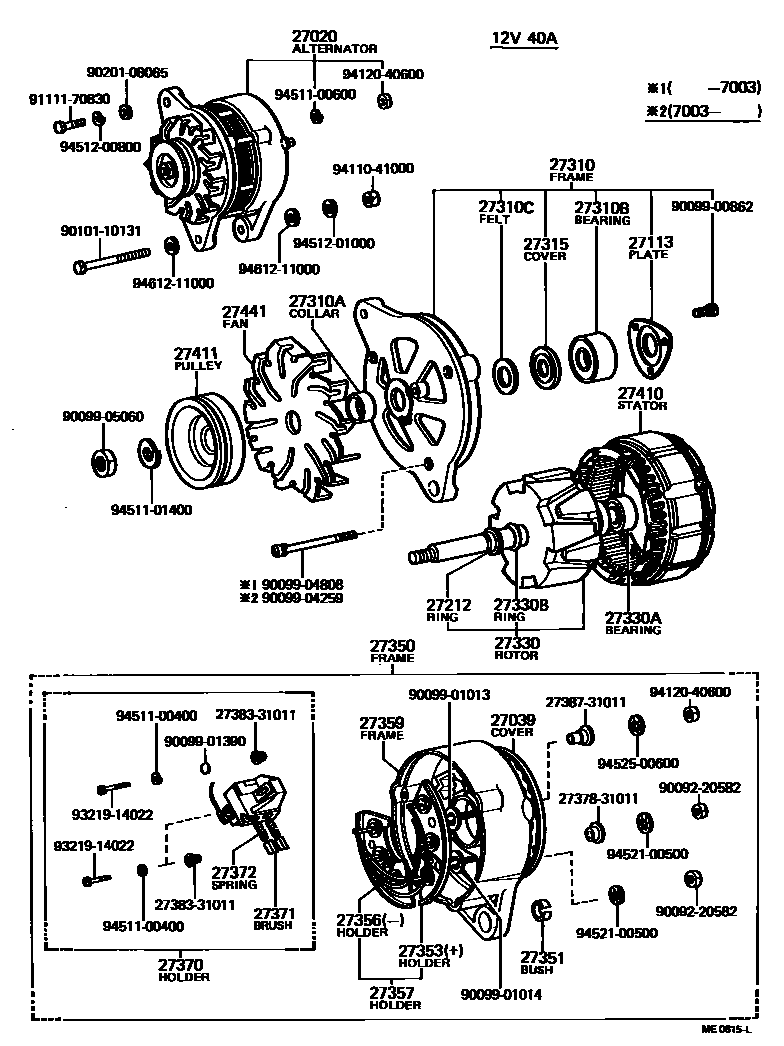

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

27020ALTERNATOR ASSY

main27020-56012iB..BJ4#197402-197709

24V 15A,FOR VACUUM PUMP

main27020-56031iB..BJ4#197501-197709

24V 20A,FOR VACUUM PUMP

main27020-56032iB,2B..BJ4#197709-198007

24V 20A,FOR VACUUM PUMP

main27020-56040iB..BJ4#197402-197501

24V 15A

main27020-60032iF..FJ4#,55196903-197101

12V 40A

main27020-60033iF..FJ4#,55197101-197209

12V 40A

main27020-60040iF..FJ4#,55196903-197501

12V 55A

main27020-60070iF..FJ4#,55197209-197401

12V 40A

main27020-60071iF,2F..FJ4#,5#197401-197508

12V 40A

main27020-60072iF,2F..FJ4#,56197508-197709

12V 40A

main27020-60073i2F..FJ56197709-198002

12V 40A

main27020-61031iF,2F..FJ4#,56197501-197709

12V 50A

main27020-61032i2F..FJ56197709-197909

12V 50A

main27020-61033i2F..FJ56197909-198007

main27020-61150i2F..FJ56198002-198007

27039COVER, ALTERNATOR REAR END

main27039-15010i2F..FJ56197909-198007

12V 50A

main27039-24030iF..FJ4#,55197209-197401

12V 40A

main27039-26020iF,2F..FJ4#,5#197401-197909

12V 40 & 50A

main27039-33011iF..FJ4#,55197101-197209

12V 40A

main27041-56040iB..BJ4#197402-197501

L/VACUUM PUMP

27113PLATE, BEARING RETAINER, ALTERNATOR

main27113-20010iF..FJ4#,55196903-197501

12V 55A

main27312-31011iF,2F..FJ4#,5#196903-197709

12V 40 & 50A

main27312-56011iB,2B..BJ4#197402-198007

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050iF,2F..FJ4#,5#196903-197709

12V 40 & 50A

main27212-56010iB,2B..BJ4#197402-198007

main27412-45070i2F..FJ56197709-198007

12V 50A

main90099-01083iF..FJ4#,55196903-197501

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-26101i2F..FJ56197709-198007

12V 50A

main27310-31011iF,2F..FJ4#,5#196903-197709

12V 40 & 50A

main27310-34030i2F..FJ56197709-198007

12V 40A

main27310-40041iF..FJ4#,55196903-197501

12V 55A

main27310-56011iB,2B..BJ4#197402-198007

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27314-56010iB,2B..BJ4#197402-198007

main27412-31040i2F..FJ56197709-198007

12V 50A

main90099-19032iF..FJ4#,55196903-197501

12V 55A

main90099-19075i2F..FJ56197709-198007

12V 40A

main90099-19203iF..FJ4#,55197006-197401

12V 40A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10013iF,2F..FJ4#,5#196903-197709

6203Z

main90099-10082iB,2B..BJ4#197402-198007

6304 2NSL

main90099-10109i2F..FJ56197709-197812

12V 40A,6203ZZ

main90099-10114i2F..FJ56197812-198007

6203ZZ

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02004iF,2F..FJ4#,5#196903-197709

12V 40 & 50A

main90099-02204iF..FJ55196903-197501

12V 55A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27115-39050iF..FJ55196903-197501

12V 55A

main27313-31011iF,2F..FJ4#,5#196903-197709

12V 40 & 50A

27330ROTOR ASSY, ALTERNATOR

main27330-33010iF,2F..FJ4#,5#196903-198007

12V 40A

main27330-43012iF,2F..FJ4#,56197501-197709

12V 50A

main27330-45070i2F..FJ56197709-198007

12V 50A

main27330-56010iB..BJ4#197402-197709

24V 15A,W/VACUUM PUMP

main27330-56030iB,2B..BJ4#197709-198007

24V 20A,W/VACUUM PUMP

main27330-56040iB..BJ4#197402-197501

24V 15A,L/VACUUM PUMP

main27330-60010iF..FJ4#,55196903-197501

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10012iF..FJ4#,55196903-197501

12V 55A,6202Z

main90099-10015iB..BJ4#197402-197501

L/VACUUM PUMP,6302 VV

main90099-10103i2F..FJ56197709-197812

12V 40A,6201ZZ

main90099-10111i2F..FJ56197709-197812

12V 50A

main97110-06201iF,2F..FJ4#,5#196903-197709

12V 40 & 50A 6201Z

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048iF,2F..FJ4#,5#196903-197709

12V 40 & 50A

main90099-07103iB,2B..BJ4#197402-198007

27350FRAME ASSY, RECTIFIER END

main27350-13010i2F..FJ56197709-198007

12V 40A

main27350-13020i2F..FJ56197709-197909

12V 50A

main27350-24061iF,2F..FJ4#,56197501-197508

12V 40A

main27350-24062iF,2F..FJ4#,56197508-197709

12V 40A

main27350-24081iF,2F..FJ4#,56197501-197709

12V 50A

main27350-33010iF..FJ4#,55196903-197006

12V 40A

main27350-33011iF..FJ4#,55197006-197101

12V 40A

main27350-33012iF..FJ4#,55197101-197209

12V 40A

main27350-56011iB..BJ4#197402-197709

W/VACUUM PUMP

main27350-56013iB,2B..BJ4#197709-198007

W/VACUUM PUMP

main27350-56040iB..BJ4#197402-197501

L/VACUUM PUMP

main27350-60041iF..FJ4#,55196903-197501

12V 55A

main27350-60070iF..FJ4#,55197209-197401

12V 40A

main27350-60071iF..FJ4#,55197401-197501

12V 40A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-25010iF,2F..FJ4#,5#197209-197709

12V 40 & 50A

main27351-30010iF..FJ4#,55196903-197209

12V 40A

main27351-38051i2F..FJ56197709-198007

12V 40 & 50A

main27351-56012iB..BJ4#197402-197709

main27351-56013iB,2B..BJ4#197709-198007

main27351-60012iF..FJ4#,55196903-197501

12V 55A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-24030iF..FJ4#,55197209-197401

12V 40A

main27353-26020iF,2F..FJ4#,56197501-197710

12V 40A

main27353-26030i2F..FJ56197710-198007

12V 40A

main27353-31012iF..FJ4#,55196903-197209

12V 40A

main27353-34051i2F..FJ56197909-198007

12V 50A

main27353-44040iF,2F..FJ4#,56197501-197709

12V 50A

main27353-45081i2F..FJ56197709-197909

12V 50A

main27353-56011iB,2B..BJ4#197402-198007

main27353-60040iF..FJ4#,55196903-197501

12V 55A

main27353-60070iF..FJ4#,55197401-197501

12V 40A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-24030iF..FJ4#,55197209-197401

12V 40A

main27356-26020iF,2F..FJ4#,5#197401-197710

12V 40A

main27356-26030i2F..FJ56197710-198007

12V 40A

main27356-31012iF..FJ4#,55196903-197209

12V 40A

main27356-34051i2F..FJ56197909-198007

12V 50A

main27356-44040iF,2F..FJ4#,56197501-197709

12V 50A

main27356-45080i2F..FJ56197709-197909

12V 50A

main27356-56010iB,2B..BJ4#197402-198007

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-24030iF..FJ4#,55197209-197401

12V 40A

main27357-26020iF,2F..FJ4#,56197501-197709

12V 40A

main27357-31012iF..FJ4#,55196903-197209

12V 40A

main27357-44040iF,2F..FJ4#,56197501-197709

12V 50A

main27357-56011iB,2B..BJ4#197402-198007

main27357-60070iF..FJ4#,55197401-197501

12V 40A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-24030iF..FJ4#,55197209-197401

12V 40A

main27359-24100i2F..FJ56197909-198007

12V 50A

main27359-26020iF,2F..FJ4#,5#197401-197508

12V 40A

main27359-33011iF..FJ4#,55196903-197209

12V 40A

main27359-36061i2F..FJ56197709-198007

12V 40A

main27359-41041i2F..FJ56197501-197710

12V 50A

main27359-45081i2F..FJ56197709-197909

12V 50A

main27359-60014iF..FJ4#,55196903-197501

12V 55A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-24030iF..FJ4#,55197209-197401

12V 40A

main27370-26020iF,2F..FJ4#,56197501-197508

12V 40A

main27370-31012iF..FJ4#,55196903-197209

12V 40A

main27370-45011iF..FJ4#,55197401-197501

12V 40A

main27370-45061iF,2F..FJ4#,56197508-197709

12V 40 & 50A

main27370-56010iB..BJ4#197402-197709

main27370-60080iB,2B..BJ4#197709-198007

W/VACUUM PUMP

27371BRUSH, ALTERNATOR

main27371-31011×2iB,F,2B,2F..BJ4#,FJ4#,5#196903-197909

12V 40 & 50A,24V 15 & 20A

main27371-44070×2i2F..FJ56197909-198007

12V 50A

main27371-50020iF..FJ4#,55196903-197501

BLACK,12V 55A

main27377-31010iF..FJ4#,55196903-197501

RED,12V 55A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2iB,F,2B,2F..BJ4#,FJ4#,5#196903-197909

12V 40 & 50A,24V 15 & 20A

main27372-40010×2iF..FJ4#,55196903-197501

12V 55A

main90099-17114×2i2F..FJ56197909-198007

12V 50A

27410STATOR ASSY, ALTERNATOR

main27410-26020iF,2F..FJ4#,5#197401-198007

12V 40A

main27410-26030iF,2F..FJ4#,56197501-197709

12V 50A

main27410-33010iF..FJ4#,55196903-197401

12V 40A

main27410-34050i2F..FJ56197709-197909

12V 50A

main27410-41080i2F..FJ56197909-198007

12V 50A

main27410-56010iB..BJ4#197402-197709

24V 15A

main27410-56030iB,2B..BJ4#197501-198007

24V 20A

main27410-60040iF..FJ4#,55196903-197501

12V 55A

27411PULLEY, ALTERNATOR

main27411-56010iB..BJ4#197402-197709

main27411-56020iB,2B..BJ4#197709-198007

main27411-60010iF..FJ4#,55196903-197501

12V 55A

main27411-60032iF,2F..FJ4#,5#196903-198007

12V 40 & 50A

27441FAN, ALTERNATOR

main27441-31011iF..FJ4#,55196903-197401

12V 40A

main27441-34030iF,2F..FJ4#,5#197401-198007

12V 40 & 50A

main27441-46030iB..BJ4#197402-197507

main27441-46031iB,2B..BJ4#197507-198007

main27441-60010iF..FJ4#,55196903-197501

12V 55A

2737831011INSULATOR, ALTERNATOR, NO.1

main27378-31011

2738331011WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-31011

2738731011INSULATOR, TERMINAL

main27387-31011

9009220582

main90092-20582

9009900862

main90099-00862

9009901013

main90099-01013

9009901014

main90099-01014

9009901390

main90099-01390

9009904259

main90099-04259

9009904808

main90099-04808

9009905060

main90099-05060

9010110131

main90101-10131

9020108065

main90201-08065

9111170830

main91111-70830

9321914022

main93219-14022

9411041000

main94110-41000

9412040600

main94120-40600

9451100400

main94511-00400

9451100600

main94511-00600

9451101400

main94511-01400

9451200800

main94512-00800

9451201000

main94512-01000

9452100500

main94521-00500

9452500600

main94525-00600

9461211000

main94612-11000

49 parts on this diagram · 9 diagrams in section
