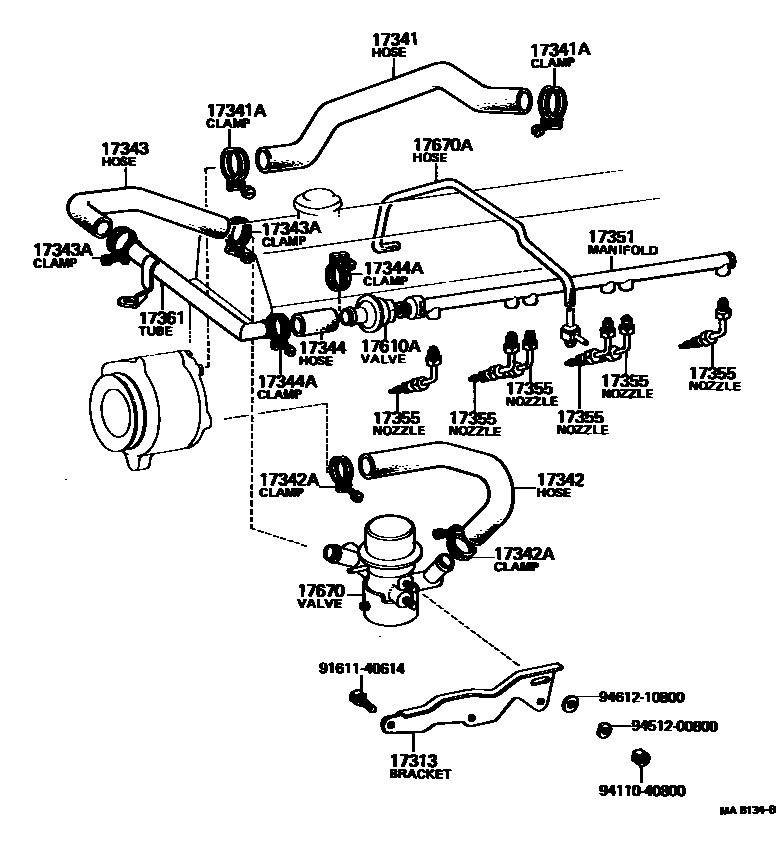

MANIFOLD AIR INJECTION SYSTEM

17313BRACKET, AIR BY-PASS VALVE

main17313-60011iF..FJ4#,55197309-197509

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-60011iF..FJ4#,55197309-197509

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main96112-10380×2iF..FJ4#,55197309-197509

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-60012iF..FJ4#,55197309-197509

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main96112-10330×2iF..FJ4#,55197309-197509

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main90445-33002iF..FJ4#,55197309-197509

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main96112-10330×2iF..FJ4#,55197309-197509

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-60010iF..FJ4#,55197309-197509

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main96112-10330×2iF..FJ4#,55197309-197509

17351MANIFOLD, AIR INJECTION

main17351-60011iF..FJ4#,55197309-197509

17355NOZZLE, AIR INJECTION

main17301-60011×6iF..FJ4#,55197309-197509

17361TUBE, AIR

main17361-60011iF..FJ4#,55197309-197509

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10003iF..FJ4#,55197309-197509

17670VALVE ASSY, AIR BY-PASS

main17670-60011iF..FJ4#,55197309-197509

17670AHOSE(FOR CARBURETOR HEAT INSULATOR TO AIR BY-PASS VALVE)

main90445-07174iF..FJ4#,55197309-197509

9161140614

main91611-40614

9411040800

main94110-40800

9451200800

main94512-00800

9461210800

main94612-10800

19 parts on this diagram · 1 diagram in section
