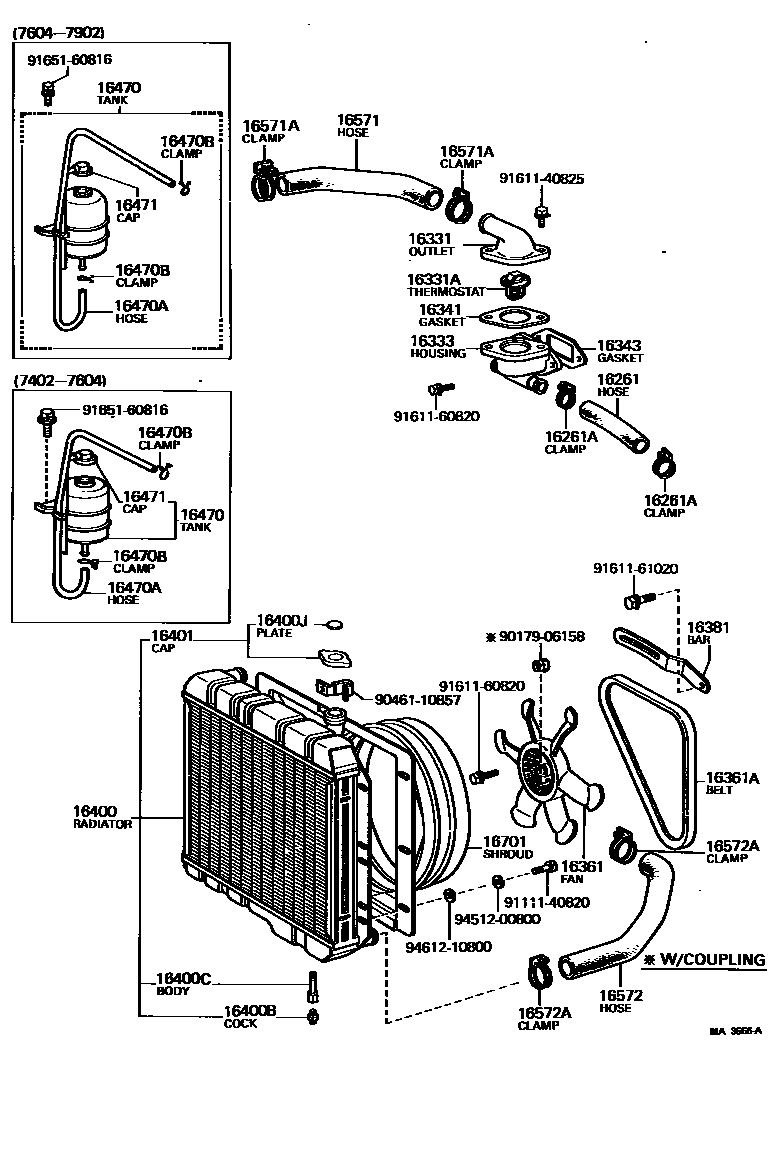

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-56011iB,2B..BJ4#197402-198007

main16261-60011iF,2F..FJ4#,5#196903-198007

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053×2iB,2B..BJ4#197402-198007

main90460-33020×2iF..FJ4#,55196903-197103

main96112-10330×2iF,2F..FJ4#,5#197103-198007

16331OUTLET, WATER

main16301-60021iF..FJ4#,55196903-197309

AISAN

main16301-60060iF..FJ4#,55196903-197309

DENSO

main16331-56010iB,2B..BJ4#197402-198007

main16333-60070iF,2F..FJ4#,5#197309-197902

main16333-60080iF..FJ55197010-197501

W/COOLER

main16333-61020i2F..FJ56197509-197902

W/OIL COOLER

main16333-61021i2F..FJ56197902-198007

W/OIL COOLER

main16333-61040i2F..FJ56197902-198007

16331ATHERMOSTAT

main90916-03012iF..FJ4#,55196903-197509

WAX 76.5-90 FUJI-THOMSON

main90916-03014iF..FJ4#,55196903-197501

WAX 82-95 FUJI-THOMSON ARCTIC

main90916-03031iB..BJ4#197402-197411

WAX 76.5-90 ONISHI SEIKI

main90916-03032iB..BJ4#197402-197709

WAX 82-95 NIHON THERMOSTAT

main90916-03039iB,2B..BJ4#197709-198007

main90916-03048i2F..FJ56197902-198007

WAX 82-95 FUJI-THOMSON

16333HOUSING, WATER OUTLET

main16331-60040iF,2F..FJ4#,5#196903-197902

main16331-61031i2F..FJ56197902-198007

main16333-56011iB..BJ4#197402-197811

main16333-56012iB,2B..BJ4#197811-198007

16341GASKET, WATER OUTLET

main16341-51010iB,2B..BJ4#197811-198007

main16341-56010iB..BJ4#197802-197811

main16341-60020iF,2F..FJ4#,5#196903-198007

16343GASKET, WATER OUTLET HOUSING

main16343-56010iB..BJ4#197402-197709

main16343-56012iB,2B..BJ4#197709-198007

main16343-60010iF,2F..FJ4#,5#196903-198007

16361FAN

main16361-38010i2B..BJ4#197902-198007

W/COUPLING,7 BLADES

main16361-41050iB..BJ4#197709-197902

W/COUPLING,7 BLADES

main16361-56020iB..BJ4#197402-197709

6 BLADES

main16361-60050iF..FJ4#,55196903-197310

4 BLADES

main16361-60060iF..FJ4#,55196903-197310

5 BLADES

main16361-60090iF,2F..FJ4#,5#197310-197902

6 BLADES

main16361-60100iF,2F..FJ5#197310-197604

8 BLADES W/COOLER

main16361-60101i2F..FJ56197604-197902

8 BLADES W/COOLER

main16361-61011i2F..FJ56197902-198007

W/COUPLING

main16361-61020i2F..FJ56197902-198007

W/COOLER & COUPLING

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02044iF,2F..FJ4#,56197501-197902

L=1065

main90916-02045i2F..FJ56197902-198007

L=1075

main99323-01175iB..BJ4#197807-197902

L=1175

main99343-01175i2B..BJ4#197902-198007

L=1175

main99523-11046iF..FJ4#,55196903-197501

L=1046

main99523-11067iF..FJ4#,55197010-197501

L=1067 12V 55A ALTER.

main99523-11176iB..BJ4#197402-197807

L=1176

16381BAR, FAN BELT ADJUSTING

main16381-56010iB..BJ4#197402-197709

main16381-56020iB,2B..BJ4#197709-198007

main16381-60081iF,2F..FJ4#,5#196903-198007

16400RADIATOR ASSY

main16400-59025i2B..BJ4#..TPC197902-198007

main16400-59045i2B..BJ41..V197902-198007

main16400-60011iF..FJ4#196903-197111

main16400-60012iF..FJ4#197111-197509

main16400-60120iF..FJ55197010-197108

W/COOLER

main16400-60121iF..FJ55197112-197310

main16400-60122iF..FJ55197310-197501

main16400-60130iF..FJ55196903-196910

main16400-60131iF..FJ55196910-197108

main16400-61010i2F..FJ56197501-197509

main16400-61011i2F..FJ56197509-197902

main16400-61012i2F..FJ56197902-198007

16400BPLUG, RADIATOR DRAIN COCK

main90910-09016iF..FJ4#196903-197308

main90910-09029iF..FJ55196903-196910

main96431-23814iB,2B..BJ4#; F,2F..FJ4#,5#197308-198007

16400CBODY, RADIATOR DRAIN COCK

main90910-09066iB,2B..BJ4#197806-198007

16400JPLATE, RADIATOR CAP CAUTION

main16595-48010iB..BJ4#197402-197605

16401CAP SUB-ASSY, RADIATOR

main16401-23070iF..FJ4#,55197402-197509

main16401-40120iF..FJ55196903-197111

main16401-41020i2F..FJ56; B..BJ4#197605-197808

main16401-41021i2F..FJ56; B,2B..BJ4#197808-198007

main16401-49015iB..BJ4#197402-197605

main16401-60040iF..FJ4#196903-197111

main16407-60010iF..FJ4#,55197111-197402

16470TANK ASSY, RADIATOR RESERVE

main16470-56030iB..BJ4#197402-197604

main16470-56031iB..BJ4#197604-197902

main16470-61010i2F..FJ56197501-197709

main16480-24010i2B..BJ4#197902-198007

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12023i2B..BJ4#197902-198007

main90445-12046iB..BJ4#197604-197709

main90445-12560iB..BJ4#197709-197902

main90445-12897i2F..FJ56197501-197709

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2iB..BJ4#197402-197501

16471CAP SUB-ASSY, RESERVE TANK

main16405-56010i2B..BJ4#197902-198007

main16405-60020i2F..FJ56197709-198007

main16471-56030iB..BJ4#197402-197902

16571HOSE, RADIATOR, INLET

main16571-56010iB,2B..BJ4#197402-198007

main16571-60050iF..FJ55196903-197310

main16571-60060iF..FJ4#196903-197509

main16571-60140iF,2F..FJ5#197310-197902

main16571-61060i2F..FJ56197902-198007

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-49062×2iF,2F..FJ4#,5#196912-197902

main90460-50016×2iF..FJ4#,55196903-196912

main96111-10500×2iB,2B..BJ4#197402-198007

16572HOSE, RADIATOR, OUTLET

main16571-60090iF..FJ55197010-197310

W/COOLER RADIATOR SIDE

main16571-60091iF,2F..FJ5#197310-198007

W/COOLER RADIATOR SIDE

main16572-56020iB,2B..BJ4#197402-198007

main90916-01055iF,2F..FJ5#196903-198007

PUMP SIDE

main90916-01056iF..FJ4#196903-197509

PUMP SIDE

main90916-01057iF..FJ55196903-197310

RADIATOR SIDE

main90916-01058iF..FJ4#196903-197509

RADIATOR SIDE

main90916-01096iF..FJ55197010-197501

W/COOLER PUMP SIDE

main90916-01137iF,2F..FJ5#197310-198007

RADIATOR SIDE

main90916-01142i2F..FJ56197501-197509

W/COOLER PUMP SIDE

main90916-01163i2F..FJ56197902-198007

W/COOLER PUMP SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016iF..FJ4#,55196903-197203

ID=50

main90460-58013×3iF,2F..FJ4#,5#196903-197902

ID=58

main96111-10500iB,2B..BJ4#; F,2F..FJ4#,5#197204-198007

ID=50

main96111-10560iB,2B..BJ4#197402-198007

ID=56

main96111-10580×3i2F..FJ56197902-198007

ID=58

main96111-10600×2i2F..FJ56197902-198007

ID=60,W/COOLER

16701SHROUD SUB-ASSY, FAN

main16701-56020iB..BJ4#197402-197902

main16701-56021i2B..BJ4#197902-198007

main16711-60011iF..FJ4#196903-197209

main16711-60012iF..FJ4#197209-197509

main16711-60130iF..FJ55197010-197310

W/COOLER

main16711-60131iF..FJ55197310-197501

W/COOLER

main16711-60150iF..FJ55197108-197310

main16711-60151iF..FJ55197310-197501

main16711-61010i2F..FJ56197501-197509

main16711-61011i2F..FJ56197509-197604

main16711-61012i2F..FJ56197604-197902

main16711-61040i2F..FJ56197501-197509

W/COOLER

main16711-61041i2F..FJ56197509-197604

W/COOLER

main16711-61042i2F..FJ56197604-197902

W/COOLER

main16711-61110i2F..FJ56197902-198007

main16711-61120i2F..FJ56197902-198007

W/COOLER

9017906158

main90179-06158

9046110857

main90461-10857

9111140820

main91111-40820

9161140825

main91611-40825

9161160820

main91611-60820

9161161020

main91611-61020

9165160816

main91651-60816

9451200800

main94512-00800

9461210800

main94612-10800

33 parts on this diagram · 6 diagrams in section
