SHORT BLOCK ASSEMBLY

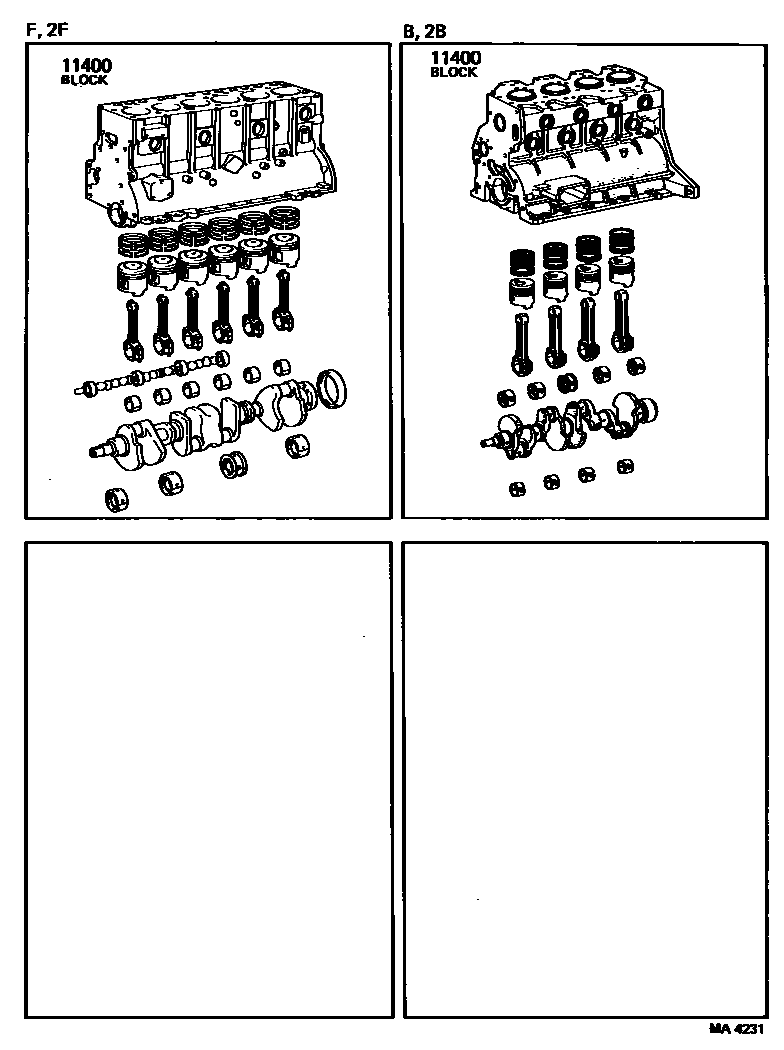

Parts diagram

11400BLOCK ASSY, SHORT

main11400-56010i197402-197709

main11400-56011i197709-197902

main11400-57010i197902-198007

main11400-60012i196903-196906

main11400-60013i196906-197108

main11400-60014i197109-197309

main11400-60031i197309-197509

main11400-61010i197501-197601

main11400-61011i197601-198007

1 parts on this diagram · 1 diagram in section
