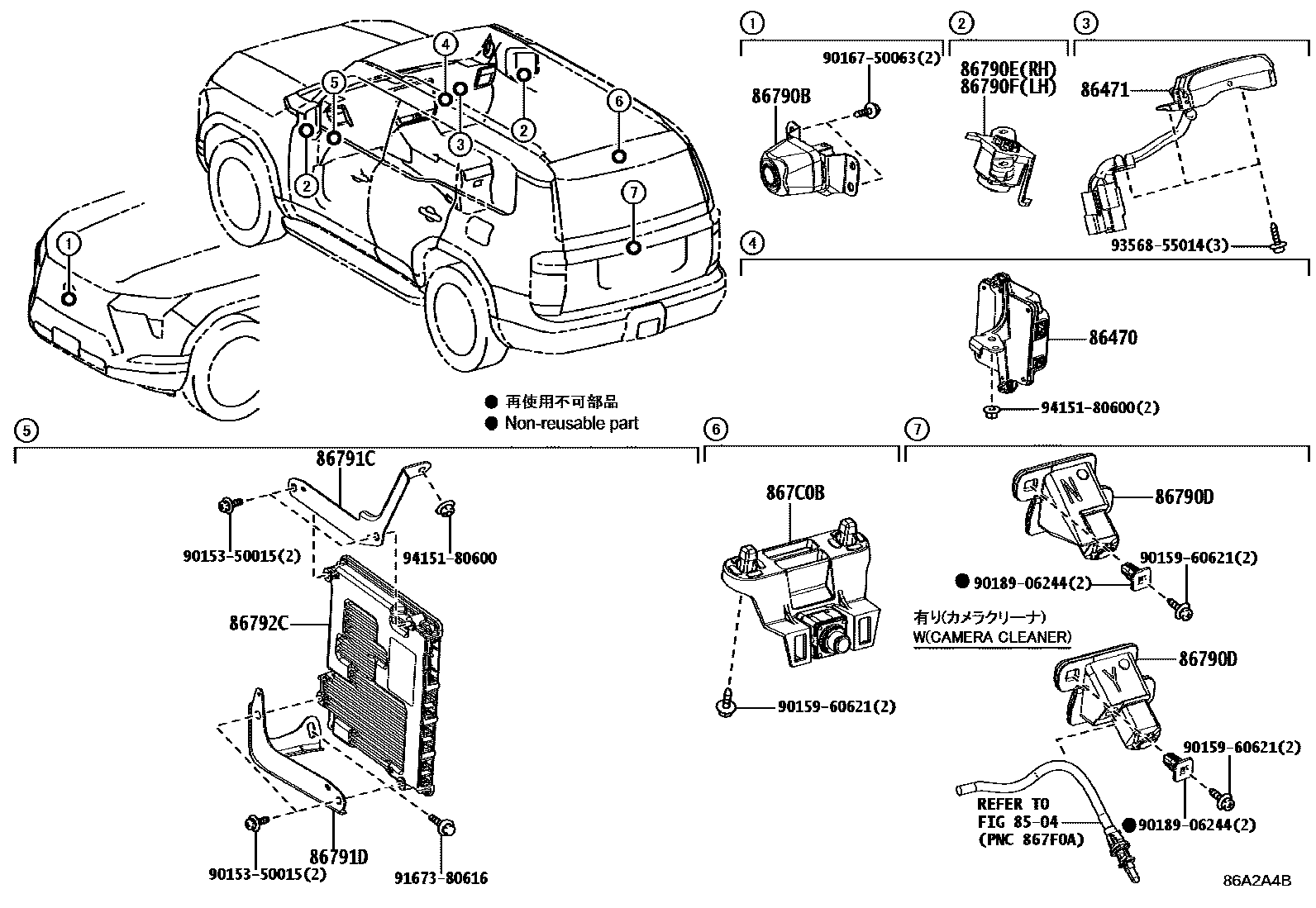

CAMERA & REAR MONITOR DISPLAY
8504
86470COMPUTER ASSY, DRIVER MONITOR
86471CAMERA, DRIVER MONITOR
86790BCAMERA ASSY, TELEVISION, FR
86790DCAMERA ASSY, TELEVISION, RR
86790ECAMERA ASSY, TELEVISION, SIDE RH
86790FCAMERA ASSY, TELEVISION, SIDE LH
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
86792CCOMPUTER, PARKING ASSIST
867C0BCAMERA ASSY, INNER MIRROR, RR
9015350015
main90153-50015
9015960621
main90159-60621
9016750063
main90167-50063
9018906244
main90189-06244
9167380616
main91673-80616
9356855014
main93568-55014
9415180600
main94151-80600
18 parts on this diagram · 1 diagram in section
