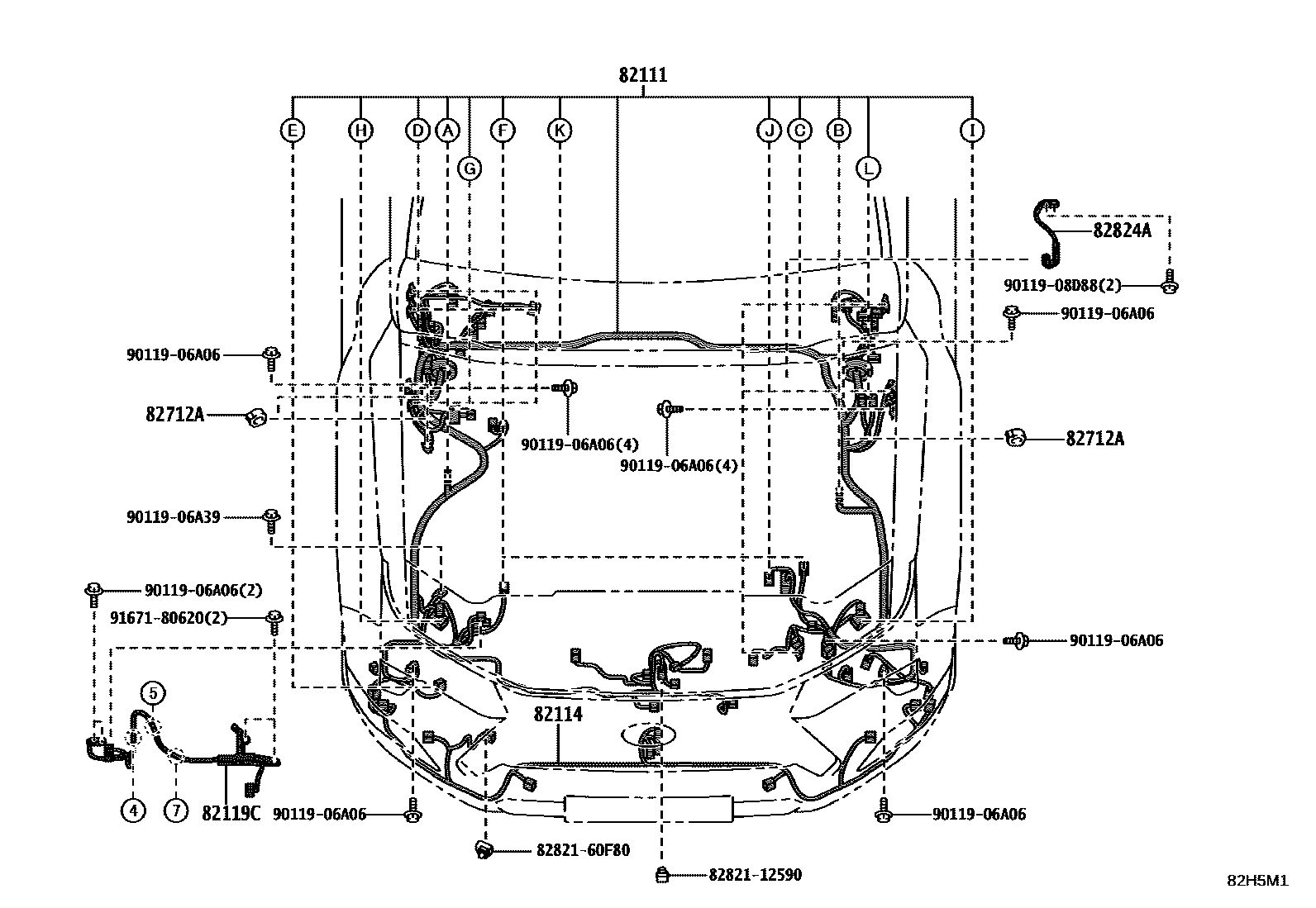

WIRING & CLAMP

0001 1�������� 1/2 0002 1�������� 2/2 0003 1����� 1/2 0004 1����� 2/2 0005 1������������ 0006 1��� 0007 1��� & ��� 0008 1��� 0009 1����� & ������ 0010 1����

82111WIRE, ENGINE ROOM MAIN

main82111-6BJ50supersedes 82111-6BJ41iVJA252202405-202410

main82111-6BJ51supersedes 82111-6BJ41iVJA252202410

main82111-6BS20supersedes 82111-6BJ41iVJA252202411

main82111-6BS30supersedes 82111-6BJ41iVJA252202411

82114WIRE, ENGINE ROOM, NO.4

main82114-60G40supersedes 82114-60F80iVJA252202405

82119CWIRE, ENGINE ROOM, NO.5

main82119-60080iVJA252202405

82712ASUPPORT, WIRING HARNESS

main82712-60840×3iVJA252202405

82824ACONNECTOR, WIRING HARNESS

main82284-60300iVJA252202405

8282112590RETAINER, HEADLAMP HARNESS

main82821-12590

8282160F80RETAINER, HEADLAMP HARNESS

main82821-60F80

9011906A06

main90119-06A06

9011906A39

main90119-06A39

9011908D88

main90119-08D88

9167180620

main91671-80620

11 parts on this diagram · 10 diagrams in section
