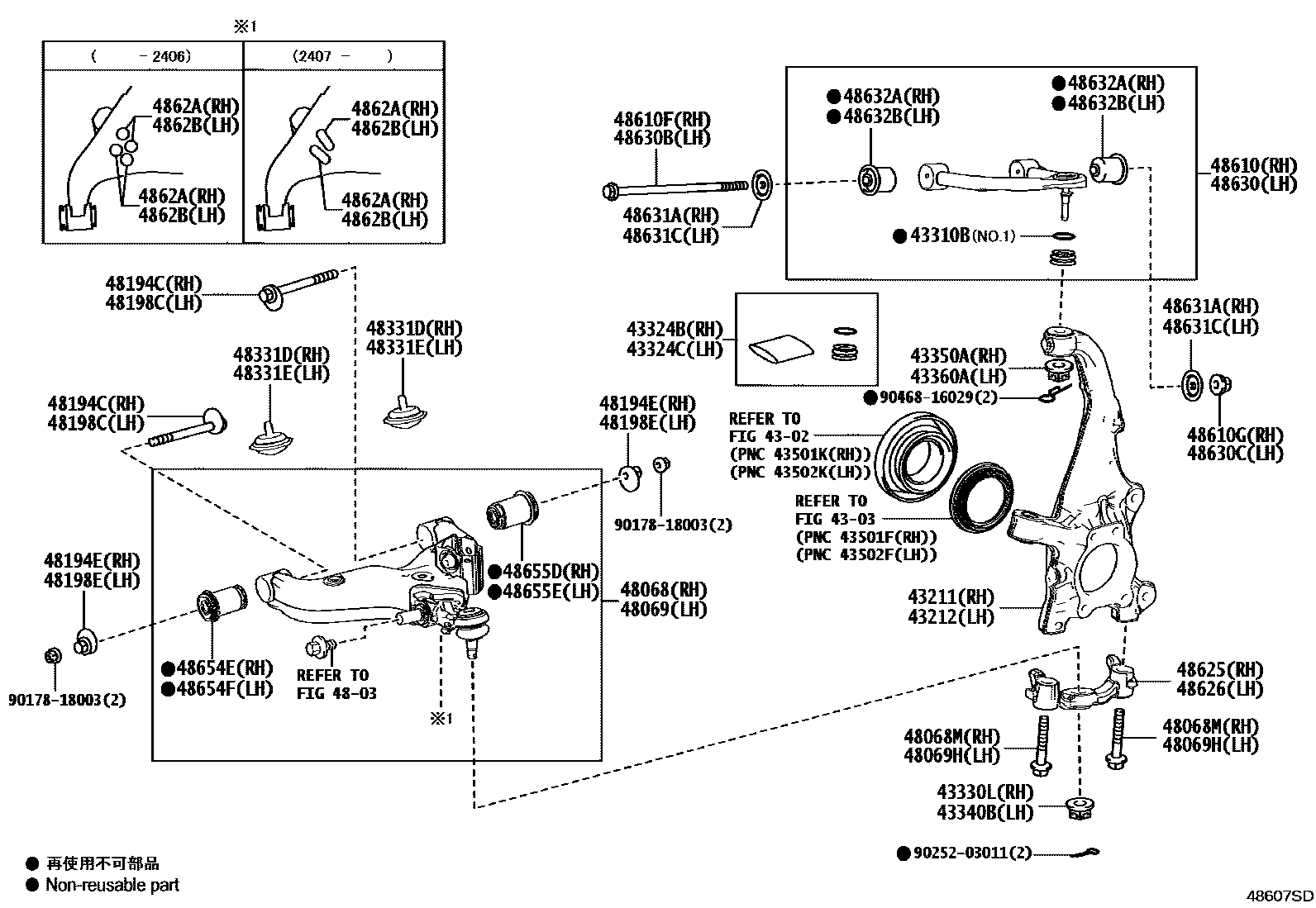

FRONT AXLE ARM & STEERING KNUCKLE

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

4303FRONT AXLE HUB

→ Go to FIG 43-03

43211KNUCKLE, STEERING, RH

main43201-60090iVJA252202405

43212KNUCKLE, STEERING, LH

main43202-60090iVJA252202405

43310BRING, SET (FOR DUST COVER)

main90580-10001iVJA252202405

43324BCOVER, FRONT UPPER BALL JOINT DUST, RH

main43324-69105iVJA252202405

43324CCOVER, FRONT UPPER BALL JOINT DUST, LH

main43324-69105iVJA252202405

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-18003iVJA252202405

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-18003iVJA252202405

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-14014iVJA252202405

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-14014iVJA252202405

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-60090iVJA252202405

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-18013×2iVJA252202405

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-60090iVJA252202405

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-18013×2iVJA252202405

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-60030×2iVJA252202405

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

main48198-60030×2iVJA252202405

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-60030×2iVJA252202405

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

main48198-60030×2iVJA252202405

48331DBUMPER, FRONT SPRING, NO.1 RH

main48304-60170iVJA252202405

48331EBUMPER, FRONT SPRING, NO.1 LH

main48304-60170iVJA252202405

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-60100iVJA252202405

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-16099iVJA252202405

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main94151-21601iVJA252202405

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-60040iVJA252202405

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-60040iVJA252202405

4862ACOVER, LOWER ARM, RH

main4862A-60020×2iVJA252202409

main90333-30002×4iVJA252202405-202408

4862BCOVER, LOWER ARM, LH

main4862A-60020×2iVJA252202409

main90333-30002×4iVJA252202405-202408

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-60100iVJA252202405

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-16099iVJA252202405

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main94151-21601iVJA252202405

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02194×2iVJA252202405

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02194×2iVJA252202405

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-60050×2iVJA252202405

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-60050×2iVJA252202405

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-60070iVJA252202405

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-60070iVJA252202405

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-60070iVJA252202405

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-60070iVJA252202405

9017818003

main90178-18003

9025203011

main90252-03011

9046816029

main90468-16029

43 parts on this diagram · 1 diagram in section
