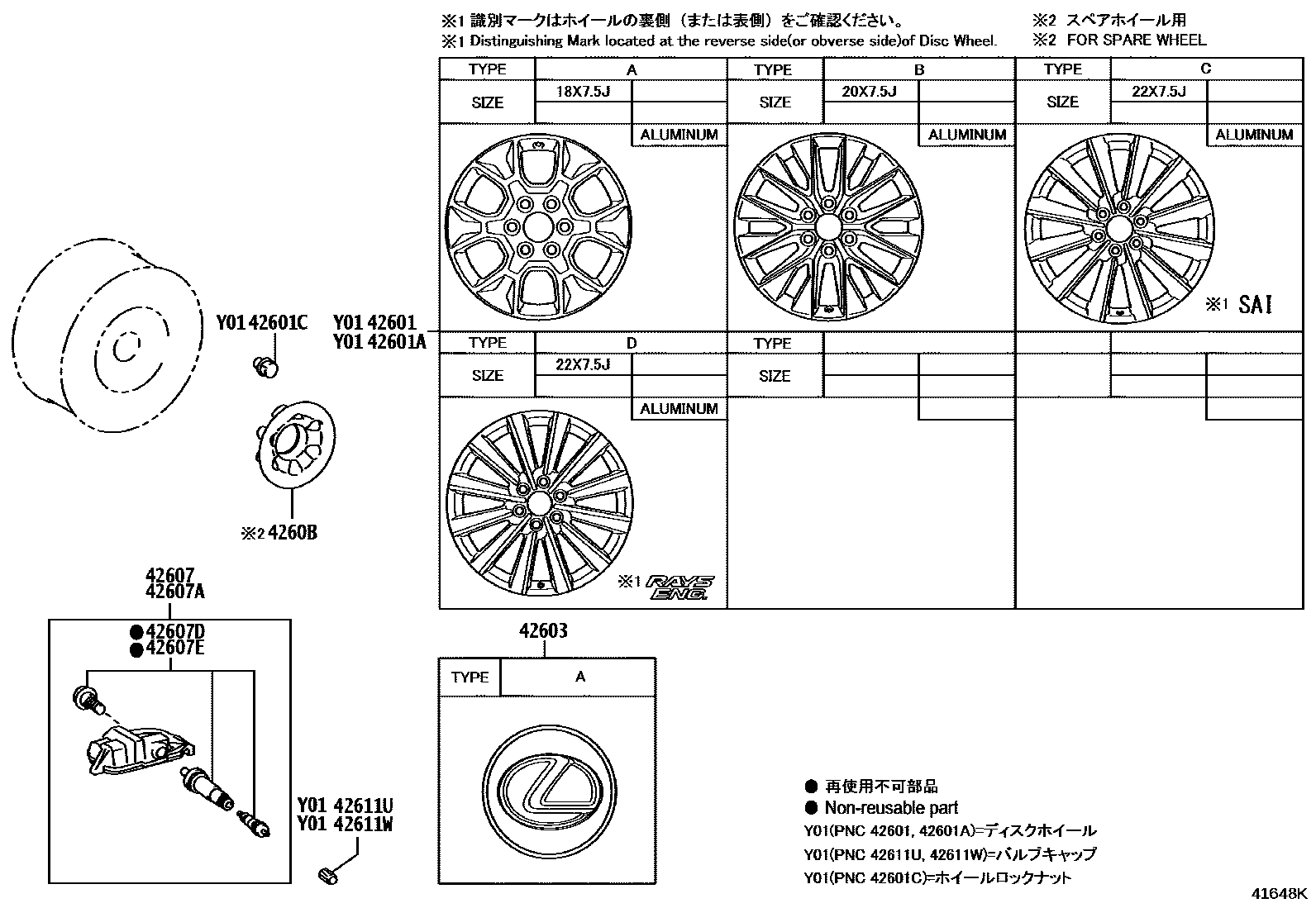

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-60N30×4supersedes 42611-60N50iVJA252202405

main42611-60N80×4supersedes 42611-60N50iVJA252202405

main42611-60N90×4supersedes 42611-60N50iVJA252202405

42601AWHEEL, DISC (FOR SPARE)

main42611-60N30supersedes 42611-60N50iVJA252202405

main42611-60N80supersedes 42611-60N50iVJA252202405

main42611-60N90supersedes 42611-60N50iVJA252202405

42601CNUT, HUB (FOR AXLE)

main90942-01122×24supersedes 90942-01121iVJA252202411

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-60710×4supersedes 42603-60700iVJA252202411

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-76020×4iVJA252202406

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-76020iVJA252202406

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05051×4iVJA252202406

42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)

main90942-05051iVJA252202406

4260BCOVER SUB-ASSY, WHEEL HUB

main4260B-60520iVJA252202405

42611UCAP, TIRE VALVE

main90942-05048×4iVJA252202406

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05048iVJA252202406

11 parts on this diagram · 2 diagrams in section
