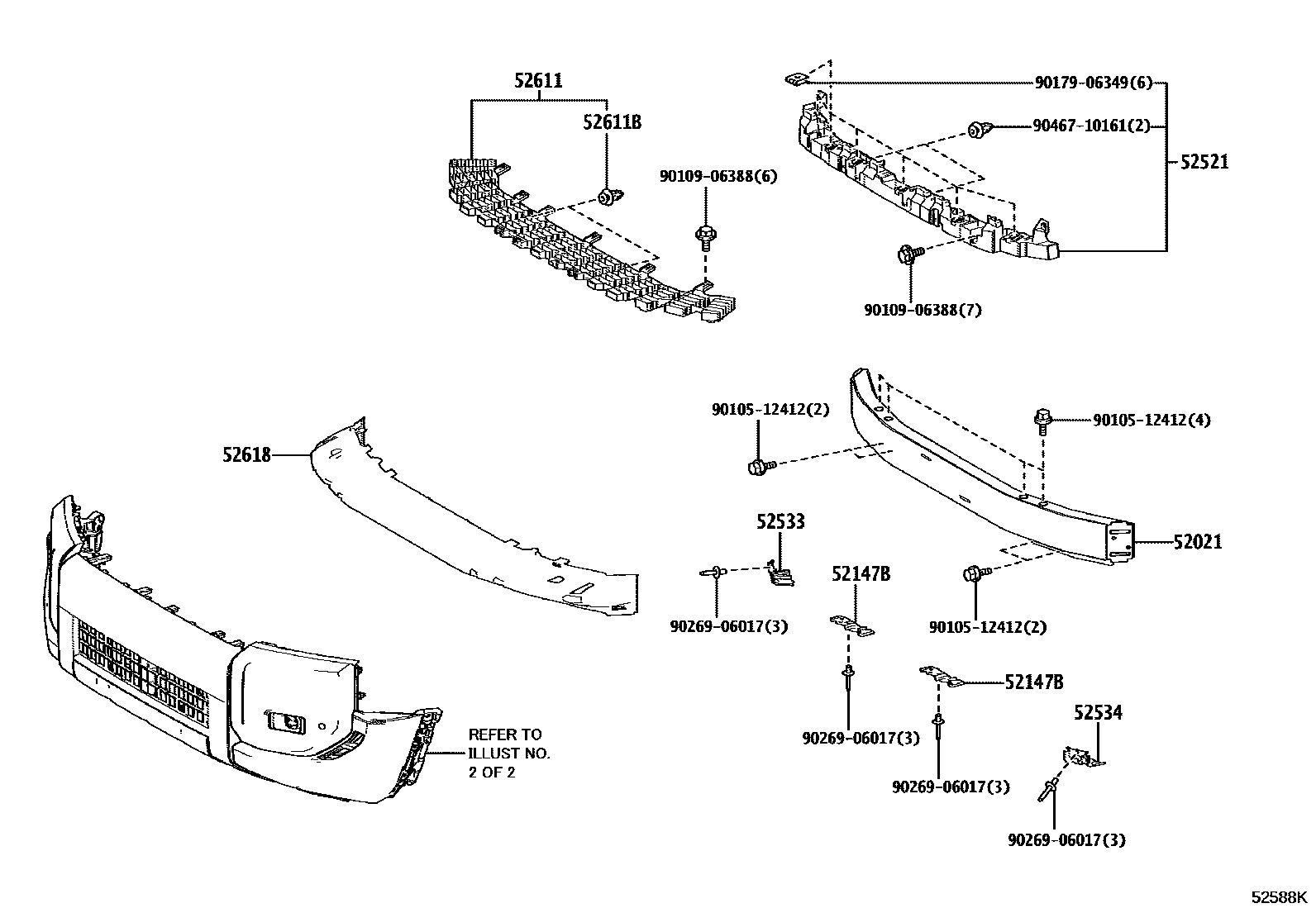

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60310iGDJ250,TRJ250202404

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-60140×2iGDJ250,TRJ250202404

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60240iGDJ250,TRJ250202404

52533BRACKET, FRONT BUMPER RETAINER, NO.1

main52533-60070iGDJ250,TRJ250202404

52534BRACKET, FRONT BUMPER RETAINER, NO.2

main52534-60070iGDJ250,TRJ250202404

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60190iGDJ250,TRJ250202404

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-09232×2iGDJ250,TRJ250202404

52618ABSORBER, FRONT BUMPER, LOWER

main52618-60070iGDJ250,TRJ250202404

9010512412

main90105-12412

9010906388

main90109-06388

9017906349

main90179-06349

9026906017

main90269-06017

9046710161

main90467-10161

13 parts on this diagram · 2 diagrams in section
