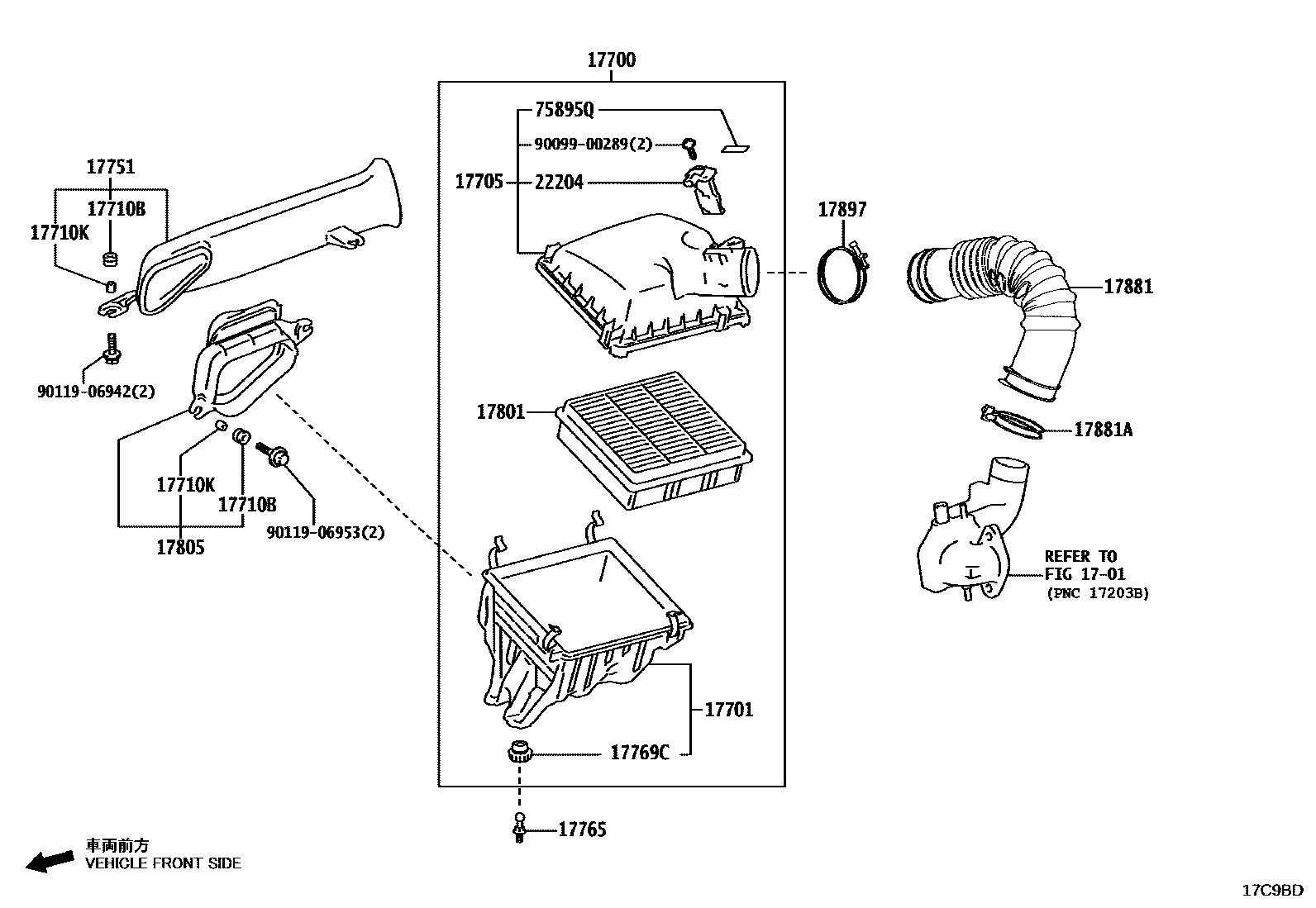

AIR CLEANER

0001 1 0002 1 0003 1

1701

17700CLEANER ASSY, AIR

main17700-11A30i1GDFTV..GDJ250202404

main17700-75570i2TRFE..TRJ250202404

17701CASE SUB-ASSY, AIR CLEANER

main17701-11660i1GDFTV..GDJ250202404

main17701-75430i2TRFE..TRJ250202404

17705CAP SUB-ASSY, AIR CLEANER

main17705-11650i1GDFTV..GDJ250202404

main17705-25100i2TRFE..TRJ250202404

17710BGROMMET

main90480-14021i1GDFTV..GDJ250202404

17710KCOLLAR(FOR AIR CLEANER)

main90387-07016i2TRFE..TRJ250202404

17751INLET, AIR CLEANER, NO.1

main17751-70180i1GDFTV..GDJ250202404

main17751-75010i2TRFE..TRJ250202404

17765STAY, AIR CLEANER, NO.1

main17765-25010i1GDFTV..GDJ250202404

17769SUPPORT, AIR CLEANER

main17769-25030i2TRFE..TRJ250202404

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25030i1GDFTV..GDJ250202404

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31141i2TRFE..TRJ250202404

main17801-31180i1GDFTV..GDJ250202404

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-25010i1GDFTV..GDJ250202404

17881HOSE, AIR CLEANER, NO.1

main17880-75200i2TRFE..TRJ250202404

main17881-11670i1GDFTV..GDJ250202404

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800i1GDFTV..GDJ250202404

17897CLAMP, HOSE(FOR AIR CLEANER)

main96111-10830i1GDFTV..GDJ250202404

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010i2TRFE..TRJ250202404

main22204-75040i1GDFTV..GDJ250202404

75895QTAPE, MOULDING, NO.1

main75895-52050iGDJ250202404

9009900289

main90099-00289

9011906942

main90119-06942

9011906953

main90119-06953

20 parts on this diagram · 3 diagrams in section
