8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

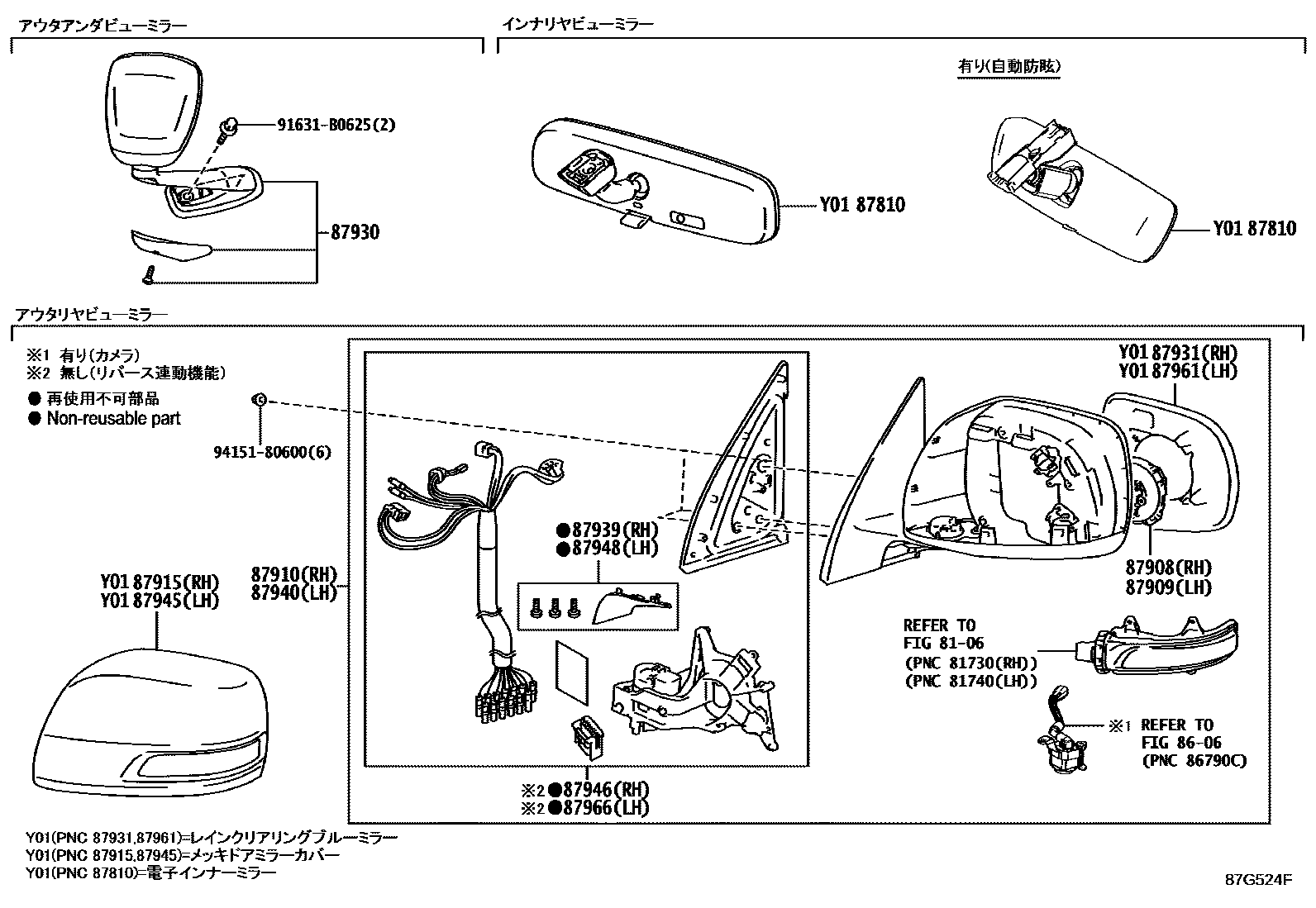

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WS30supersedes 87810-53200i201708-202312

main87810-53210i201806-202312

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-60B40supersedes 87908-60B10i201708-202312

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87908-60B40supersedes 87908-60B10i201708-202312

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-60P40supersedes 87910-60F40i201708-202106

main87910-60P70supersedes 87910-60P40i201708-202210

main87910-60P71supersedes 87910-60P41i202211-202312

main87910-60Q20i202008-202106

main87910-60Q21supersedes 87910-60P41i202211-202312

87915COVER, OUTER MIRROR, RH

main87915-60040i202208-202312

main87915-60050-A0i201708-202312

SUPER WHITE 2,040

main87915-60050-A1i201708-202312

WHITE PEARL CS.,070

main87915-60050-B0i201708-202312

SILVER ME.,1F7

main87915-60050-B1i201708-202312

GRAY ME.,1G3

main87915-60050-C0i202008-202312

BLACK,040 ,070 ,1F7 ,1G3 ,202 ,221 ,3R3 ,4V8

main87915-60050-C1i201708-202312

ATTITUDE BLACK MC.,218

main87915-60050-C2i201708-202312

BLACKISH AGEHA GF.,221

main87915-60050-D2i201708-202312

RED M.M.,3R3

main87915-60050-E4i201708-201806

VINTAGE BROWN PEARL CS.,4X4

main87915-60050-E5i201708-202312

AVANT-GARDE BRONZE ME.,4V8

87930DEVICE ASSY, FRONT FENDER SIDE VIEW, LH

main87930-60180-A0i201708-202106

main87930-60180-A1i201708-202003

main87930-60180-B0i201708-202106

main87930-60180-B1i201708-202003

main87930-60180-C0i201708-202312

main87930-60180-C1i201708-202102

main87930-60180-C2i201708-202106

main87930-60180-D0i201708-202003

main87930-60180-E0i201708-202312

87931OUTER MIRROR, RH

main87931-60Q21supersedes 87931-60F41i202211-202312

main87931-60U20i201708-202008

87939COVER, OUTER MIRROR HOLE, RH

main87939-60L70i201708-202312

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-60P40supersedes 87940-60F40i201708-202106

main87940-60P70supersedes 87940-60F40i201708-202106

main87940-60P71supersedes 87940-60P41i202211-202312

main87940-60Q20i201708-202008

main87940-60Q21supersedes 87940-60P41i202211-202312

87945COVER, OUTER MIRROR, LH

main87945-60040i202208-202312

main87945-60050-A0i201708-202312

SUPER WHITE 2,040

main87945-60050-A1i201708-202312

WHITE PEARL CS.,070

main87945-60050-B0i201708-202312

SILVER ME.,1F7

main87945-60050-B1i201708-202312

GRAY ME.,1G3

main87945-60050-C0i201806-202008

BLACK,070 ,202 ,3R3 ,4V8

main87945-60050-C1i201708-202312

ATTITUDE BLACK MC.,218

main87945-60050-C2i201708-202312

BLACKISH AGEHA GF.,221

main87945-60050-D2i201708-202312

RED M.M.,3R3

main87945-60050-E4i201708-201806

VINTAGE BROWN PEARL CS.,4X4

main87945-60050-E5i201708-202312

AVANT-GARDE BRONZE ME.,4V8

87946RETRACTOR, OUTER MIRROR, RH

main00000-00000supersedes 87946-60L90i201708-202312

87948COVER, OUTER MIRROR HOLE, LH

main87948-60L70i201708-202312

87961MIRROR OUTER, LH

main87961-60Q21supersedes 87961-60F41i202211-202312

main87961-60U20i201708-202008

87966RETRACTOR, OUTER MIRROR, LH

main00000-00000supersedes 87966-60L90i201708-202312

91631B0625

main91631-B0625

9415180600

main94151-80600
