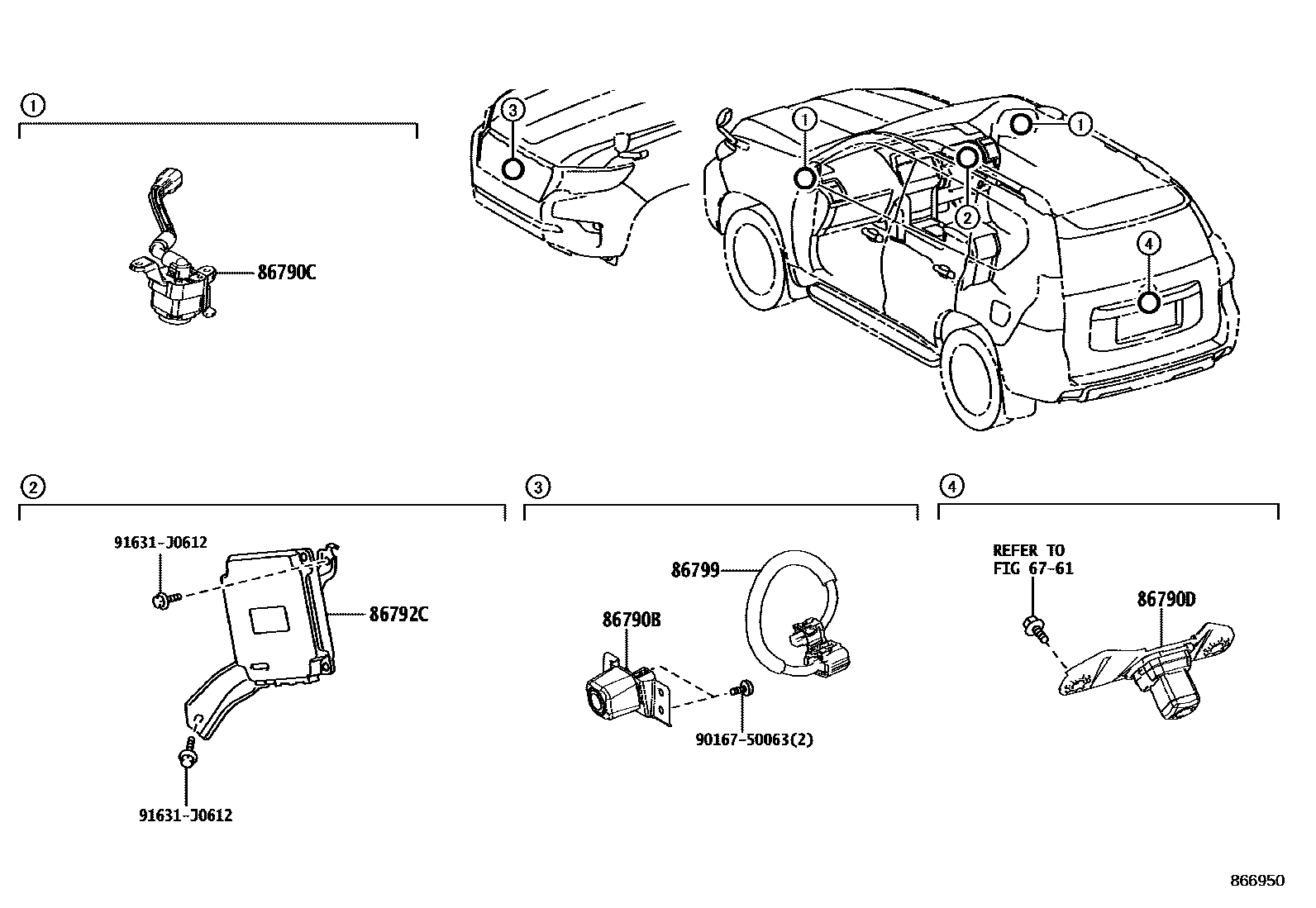

CAMERA & REAR MONITOR DISPLAY

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

86790BCAMERA ASSY, TELEVISION, FR

main867B0-60120iGDJ150,TRJ150202106-202312

86790CCAMERA ASSY, TELEVISION, SIDE

main867B0-60130iGDJ150,TRJ150202106-202312

main867B0-60140iGDJ150,TRJ150202106-202312

86790DCAMERA ASSY, TELEVISION, RR

main86790-60182iGDJ150,TRJ150201708-202008

main867B0-60110iGDJ150,TRJ150; GDJ151201708-201711

main867B0-60111iGDJ150,TRJ150201712-202106

86792CCOMPUTER, PARKING ASSIST

main86792-60560iGDJ150,TRJ150; GDJ151201708-202008

main86792-60760iGDJ150,TRJ150202008-202106

86799WIRE, TELEVISION CAMERA

main86799-60021iGDJ150,TRJ150201708-202106

9016750063

main90167-50063

91631J0612

main91631-J0612

8 parts on this diagram · 1 diagram in section
