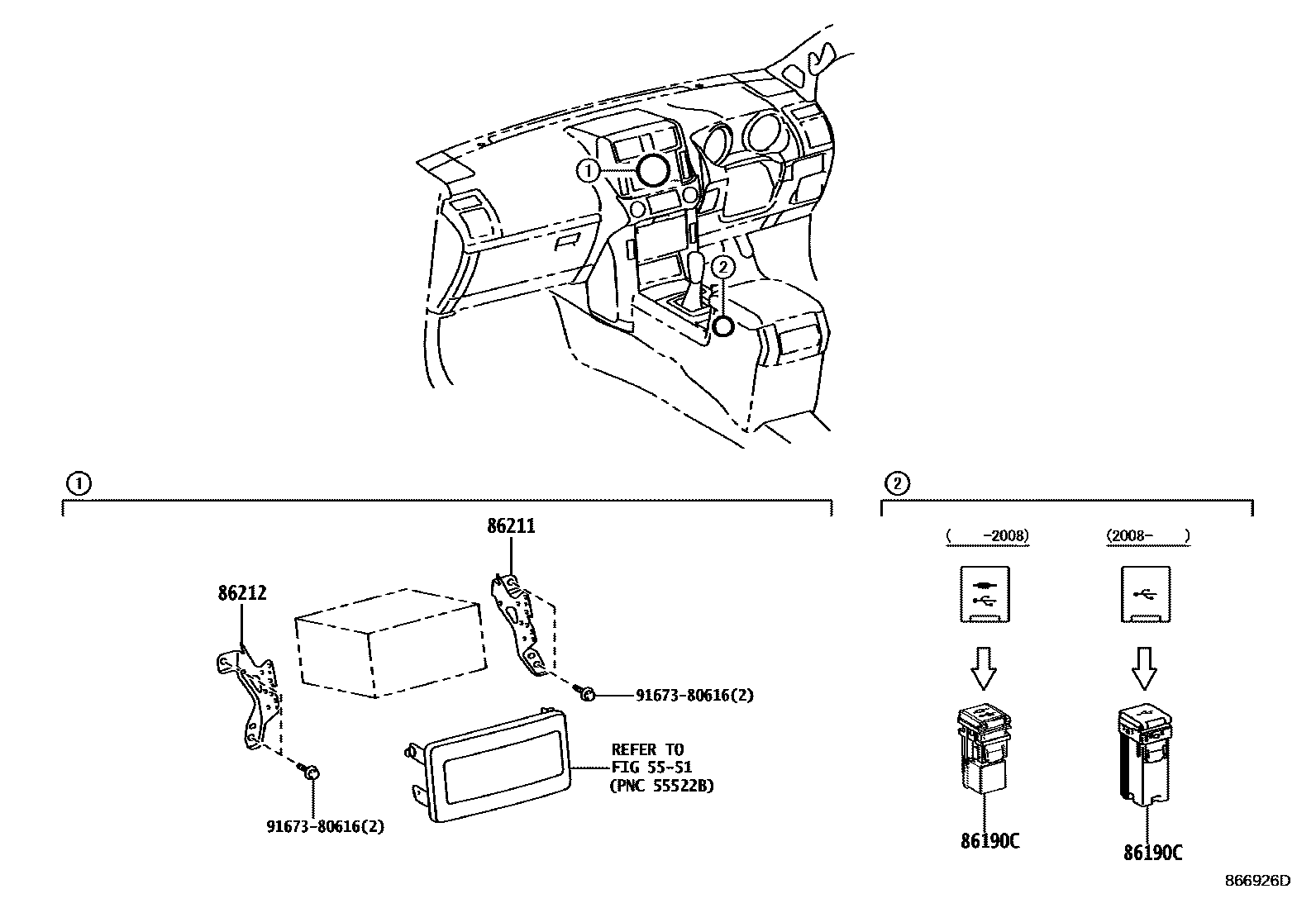

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1USB����� 0002 1��������� 0003 1��������� 0004 1������

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12040iGDJ15#,TRJ150201708-202008

main86190-42030iGDJ15#,TRJ150202008-202009

main86190-42031iGDJ15#,TRJ150202009-202312

86211BRACKET, RADIO, NO.1

main86211-60500iGDJ15#,TRJ150201708-202312

86212BRACKET, RADIO, NO.2

main86212-60500iGDJ15#,TRJ150201708-202312

9167380616

main91673-80616

5 parts on this diagram · 4 diagrams in section
