WIRING & CLAMP

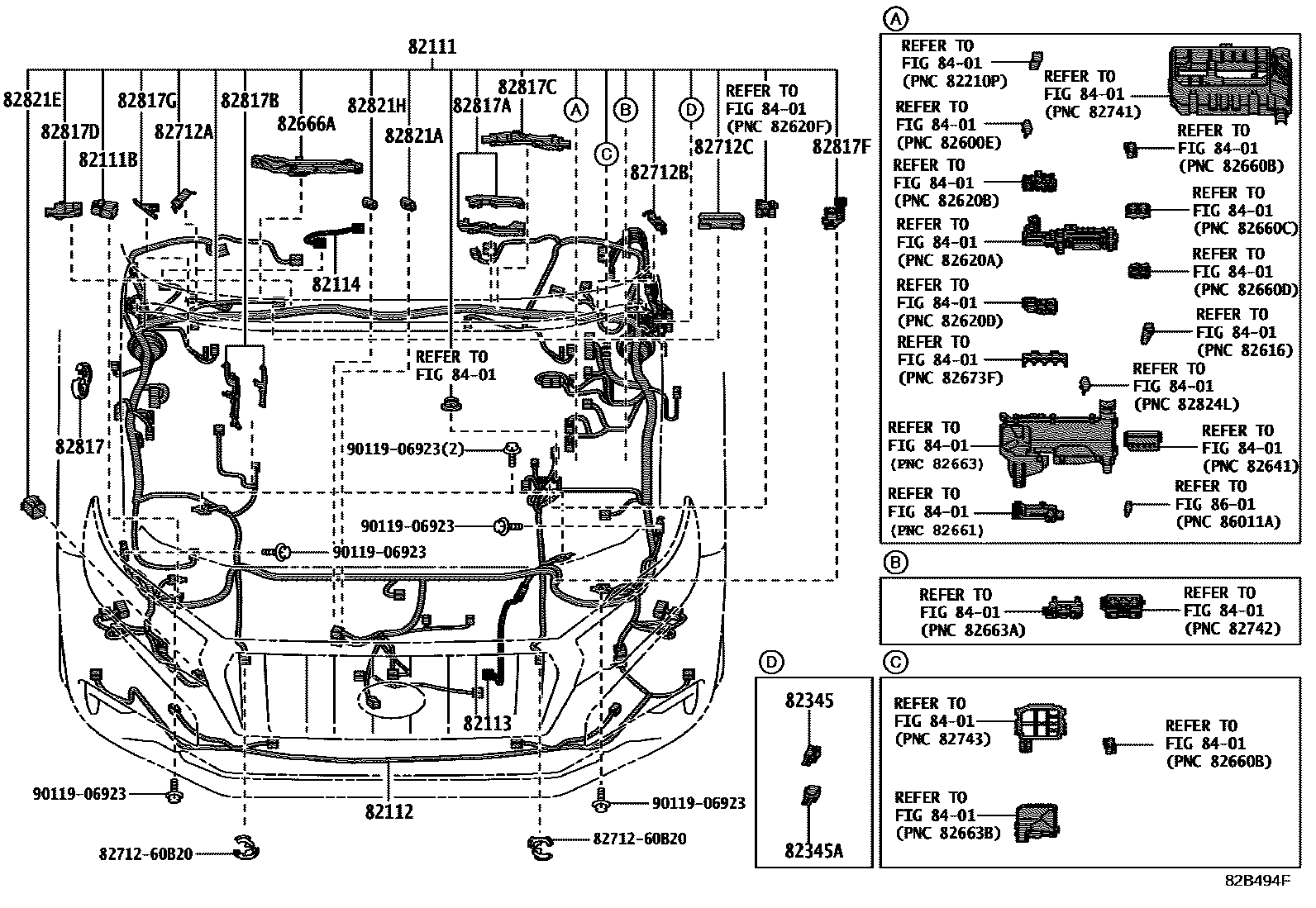

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82115-60620i201708-201806

main82115-60630i201708-201806

main82115-60700i201708-201806

main82115-60701i201806-201908

main82115-60702i201908-202008

main82115-60703i202008-202106

main82115-60704i202106-202208

main82115-60705i202208-202312

main82115-60760i201806-201908

main82115-60761i201908-202008

main82115-60762i202008-202106

main82115-60763i202106-202208

main82115-60764i202208-202312

main82115-60770i201806-201908

main82115-60771i201908-202008

main82115-60772i202008-202106

main82115-60773i202106-202208

main82115-60774i202208-202312

82111BCONDENSER

main90980-04083i201708-202312

82112WIRE, ENGINE ROOM, NO.2

main82112-60860supersedes 82112-60850i201708-202008

main82112-60861supersedes 82112-60851i202008-202106

main82112-60B50i202106-202312

82113WIRE, ENGINE ROOM, NO.3

main82113-60130i201806-202008

main82113-60131i202008-202312

82114WIRE, ENGINE ROOM, NO.4

main82114-60740i202104-202106

82345DIODE

main82345-12030i201708-202312

82345ADIODE

main82345-12050i201708-202312

82666AHOLDER, CONNECTOR NO.2

main82666-60F10i201708-202312

82712ASUPPORT, WIRING HARNESS

main82712-60B70i201708-202312

82712BSUPPORT, WIRING HARNESS

main82712-60B80i201708-202312

82712CSUPPORT, WIRING HARNESS, NO.1

main82712-60B90i201708-202312

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-32840i201708-202008

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-60P70i201708-202008

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-60K80i201708-202312

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-60Y20i201708-202312

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-60Y30i201708-202312

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-60Z20i201806-202312

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-6AD60i202008-202312

82821ACOVER, CONNECTOR

main82821-12400i201708-202312

82821ECOVER, CONNECTOR

main82821-50560i201708-202312

82821HCOVER, CONNECTOR

main82821-71080i201708-202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8271260B20CLAMP, WIRING HARNESS

main82712-60B20

9011906923

main90119-06923

25 parts on this diagram · 13 diagrams in section
