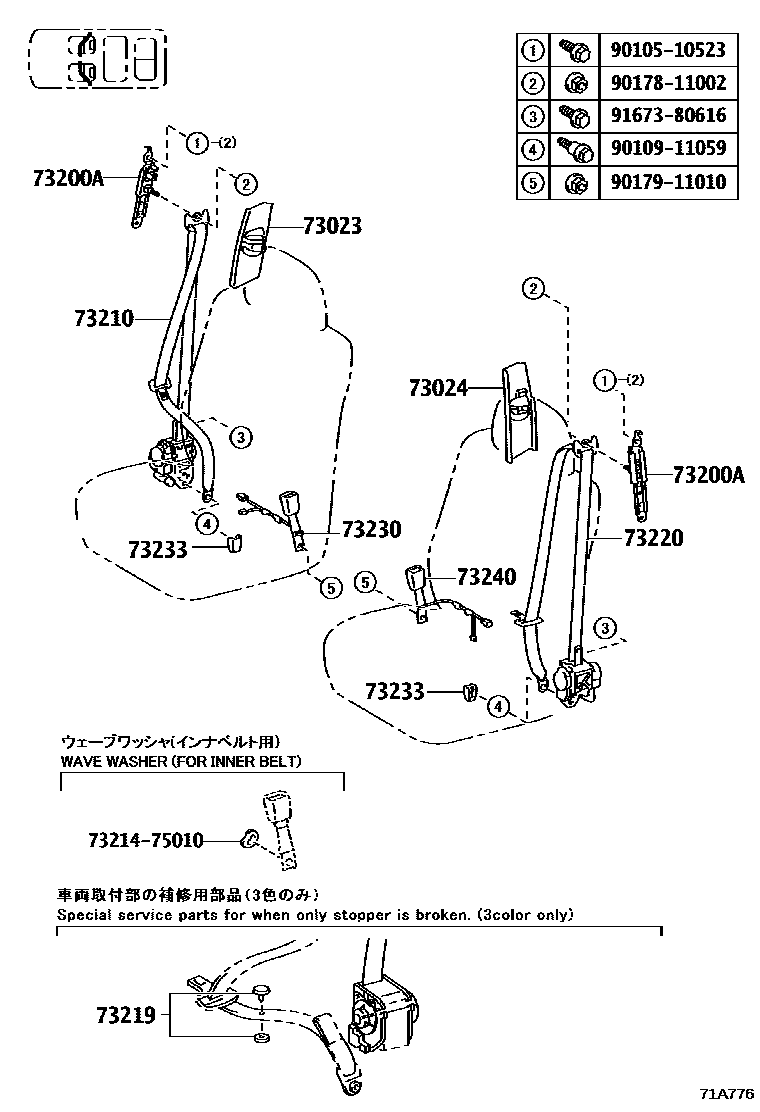

SEAT BELT

0001 1������� 0002 1�� NO.1��� 0003 1�� NO.1��� 0004 1�� NO.2���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-B0iGDJ150,TRJ150; GDJ151201708-202312

LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,41

main73023-53020-E2iGDJ150,TRJ150; GDJ151201708-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-B0iGDJ150,TRJ150; GDJ151201708-202312

LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,41

main73024-53020-E2iGDJ150,TRJ150; GDJ151201708-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×4iGDJ15#,TRJ150201708-202312

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60772-C2iGDJ150,TRJ150; GDJ151201708-202208

BLACK/LT.GRAY,TRIM2#; BLACK/LT.GRAY,TRIM2#,41

main73210-60772-E0iGDJ150,TRJ150; GDJ151201708-202208

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main73210-60773-C2iGDJ15#,TRJ150202209-202312

BLACK/LT.GRAY,TRIM2#

main73210-60773-E0iGDJ15#,TRJ150202209-202312

NEUTRAL BEIGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iGDJ15#,TRJ150201708-202312

main73219-33020iGDJ15#,TRJ150201708-202312

main73219-33030iGDJ15#,TRJ150201708-202312

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60632-C2iGDJ150,TRJ150; GDJ151201708-202208

BLACK/LT.GRAY,TRIM2#; BLACK/LT.GRAY,TRIM2#,41

main73220-60632-E0iGDJ150,TRJ150; GDJ151201708-202208

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main73220-60633-C2iGDJ15#,TRJ150202209-202312

BLACK/LT.GRAY,TRIM2#

main73220-60633-E0iGDJ15#,TRJ150202209-202312

NEUTRAL BEIGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-60530-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#,41

main73230-60530-E1iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM40

main73230-60810-C0iGDJ150,TRJ150..05S; GDJ150,TRJ150..07S; GDJ151201708-202312

main73230-60810-E0iGDJ150,TRJ150..05S; GDJ150,TRJ150..07S202106-202208

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iGDJ150,TRJ150; GDJ151201708-202312

BLACK,TRIM2#; BLACK,TRIM2#,41

main73233-60020-E6×2iGDJ150,TRJ150; GDJ151201708-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-60790-C0iGDJ150,TRJ150..05S; GDJ150,TRJ150..07S202106-202208

main73230-60790-E0iGDJ150,TRJ150..05S; GDJ150,TRJ150..07S202106-202208

main73230-60800-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#,41

main73230-60800-E0iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM40

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9167380616

main91673-80616

15 parts on this diagram · 4 diagrams in section
