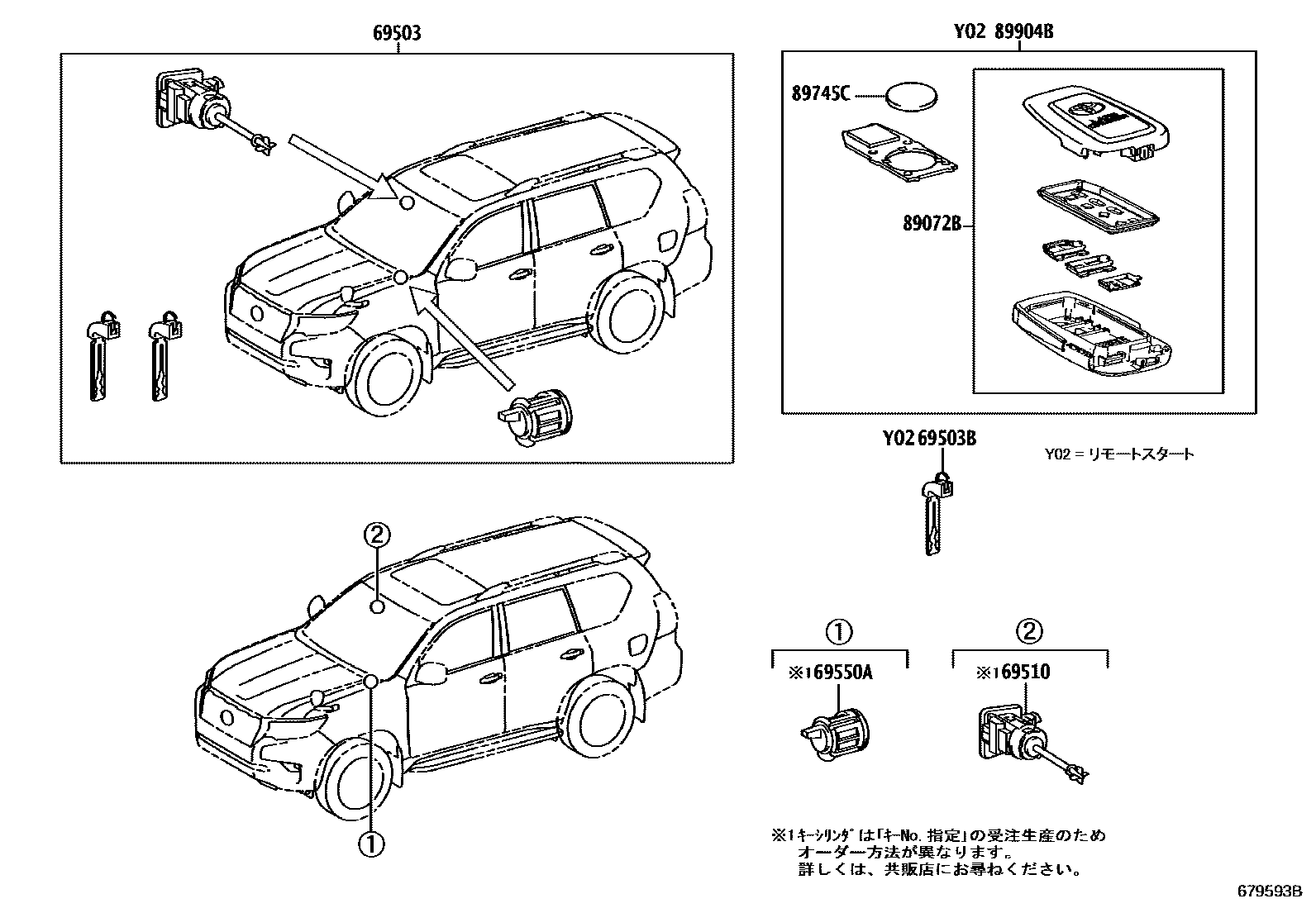

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-60M10iGDJ15#,TRJ150201708-202312

69503BKEY, CUT

main69515-16100×2iGDJ15#,TRJ150202101-202312

main69515-47020×2iGDJ15#,TRJ150201708-202012

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-60360iGDJ15#,TRJ150201708-202312

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iGDJ15#,TRJ150201708-202312

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-60F90×2iGDJ15#,TRJ150201708-202312

89745CBATTERY, TRANSMITTER

main89745-45010iGDJ15#,TRJ150201708-201908

main89745-50020iGDJ15#,TRJ150201908-202312

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-60E50×2iGDJ15#,TRJ150201708-201908

main89904-60U90×2iGDJ15#,TRJ150201908-202008

main89904-6A240×2iGDJ15#,TRJ150202008-202312

7 parts on this diagram · 1 diagram in section
