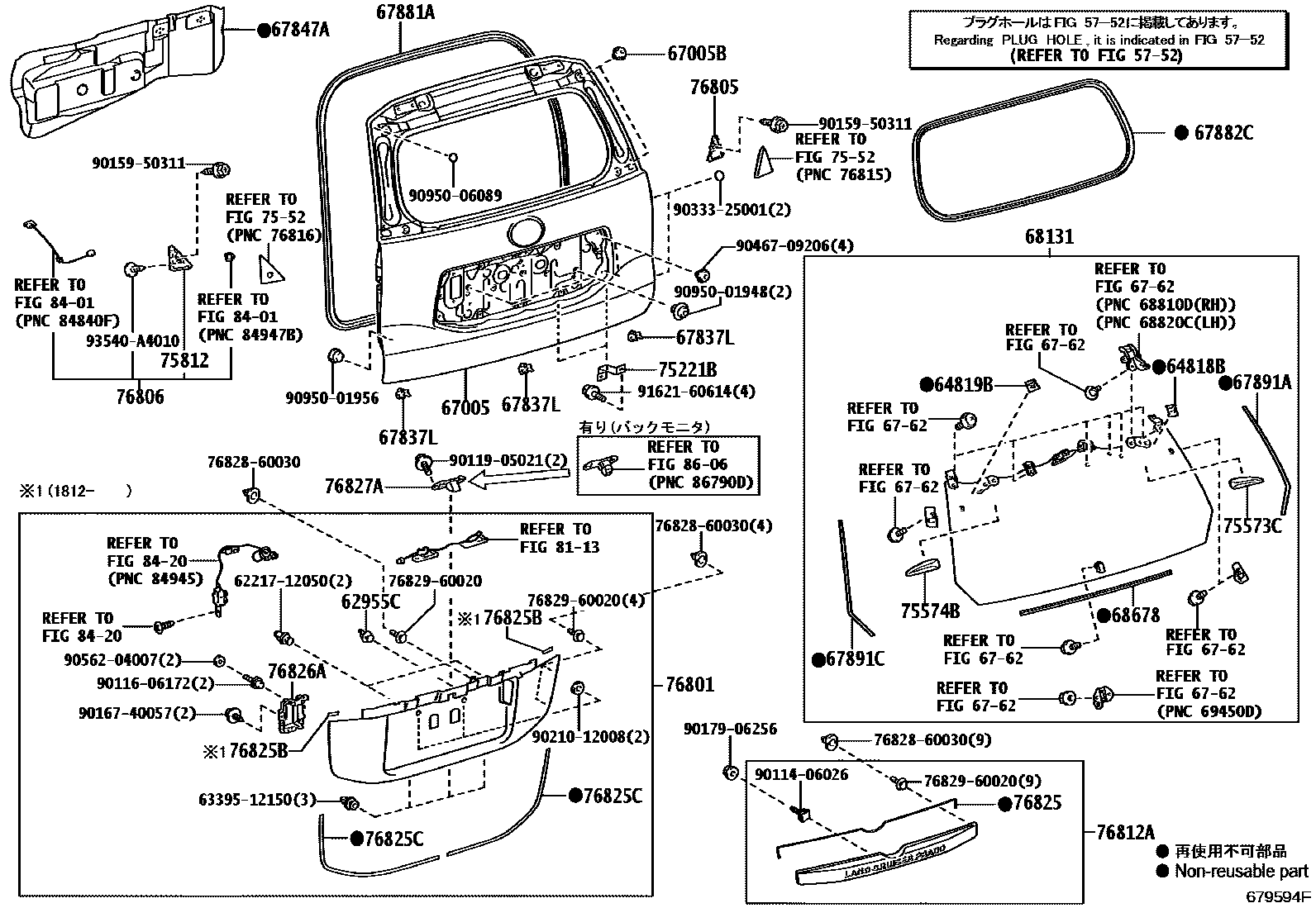

BACK DOOR PANEL & GLASS
5752HOLE PLUG
62955CRETAINER, BACK DOOR MOULDING
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67837LSEAL, DOOR DUST PROOF
67847ACOVER, BACK DOOR SERVICE HOLE
67881AWEATHERSTRIP, BACK DOOR
67882CWEATHERSTRIP, BACK DOOR, NO.2
67891ASEAL, BACK DOOR
67891CSEAL, BACK DOOR
68131GLASS, BACK DOOR
68678PROTECTOR, BACK DOOR WINDOW
75221BBRACKET, TOOL BOX
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
75812MOULDING, BACK DOOR, OUTSIDE UPPER RH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
VINTAGE BROWN PEARL CS.,4X4
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
76805GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER RH
76806GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER LH
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825BPROTECTOR, BACK DOOR OUTSIDE GARNISH
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
76826ARETAINER, BACK DOOR GARNISH, NO.1
76827ARETAINER, BACK DOOR GARNISH, NO.2
6221712050COVER, RAIL ROOF SIDE, INNER CENTER
main62217-12050
6339512150CLIP, ROOF HEADLINING TRIM
main63395-12150
7682860030PAD, LUGGAGE GARNISH, NO.3
main76828-60030
7682960020SEAL, LUGGAGE COMPERTMENT DOOR MOULDING, LH
main76829-60020
9011406026
main90114-06026
9011606172
main90116-06172
9011905021
main90119-05021
9015950311
main90159-50311
9016740057
main90167-40057
9017906256
main90179-06256
9021012008
main90210-12008
9033325001
main90333-25001
9046709206
main90467-09206
9056204007
main90562-04007
9095001948
main90950-01948
9095001956
main90950-01956
9095006089
main90950-06089
9162160614
main91621-60614
93540A4010
main93540-A4010
46 parts on this diagram · 2 diagrams in section
