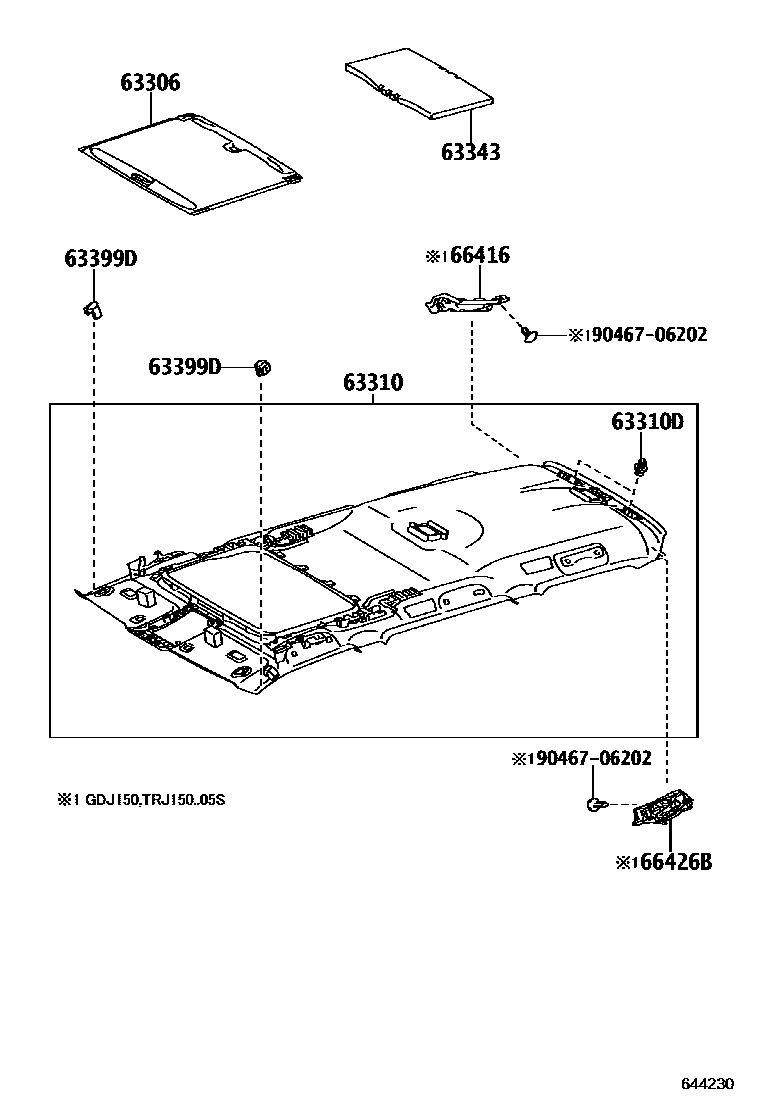

ROOF HEADLINING & SILENCER PAD

0001 1��(������) 0002 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-60280-B0iGDJ150,TRJ150; GDJ151201708-202312

main63306-60280-E0iGDJ150,TRJ150; GDJ151201708-202312

63310HEADLINING ASSY, ROOF

main63310-6AB40-B0supersedes 63310-6AB30-B0iGDJ15#,TRJ150201708-202007

main63310-6AB40-E0supersedes 63310-6AB30-E0iGDJ15#,TRJ150201708-202007

main63310-6AB41-B0supersedes 63310-6AB31-B0iGDJ150,TRJ150; GDJ151202008-202312

main63310-6AB41-E0supersedes 63310-6AB31-E0iGDJ150,TRJ150; GDJ151202008-202312

63310DCLIP, ROOF HEADLINING

main90467-10161×2iGDJ15#,TRJ150201708-202312

63343PAD, ROOF SILENCER, NO.3

main63343-60070iGDJ15#,TRJ150201708-202312

63399DCLIP, ROOF HEADLINING

main63399-60030×2iGDJ15#,TRJ150201708-202312

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-60020iGDJ150,TRJ150..05S201708-202312

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-60020iGDJ150,TRJ150..05S201708-202312

9046706202

main90467-06202

8 parts on this diagram · 2 diagrams in section
