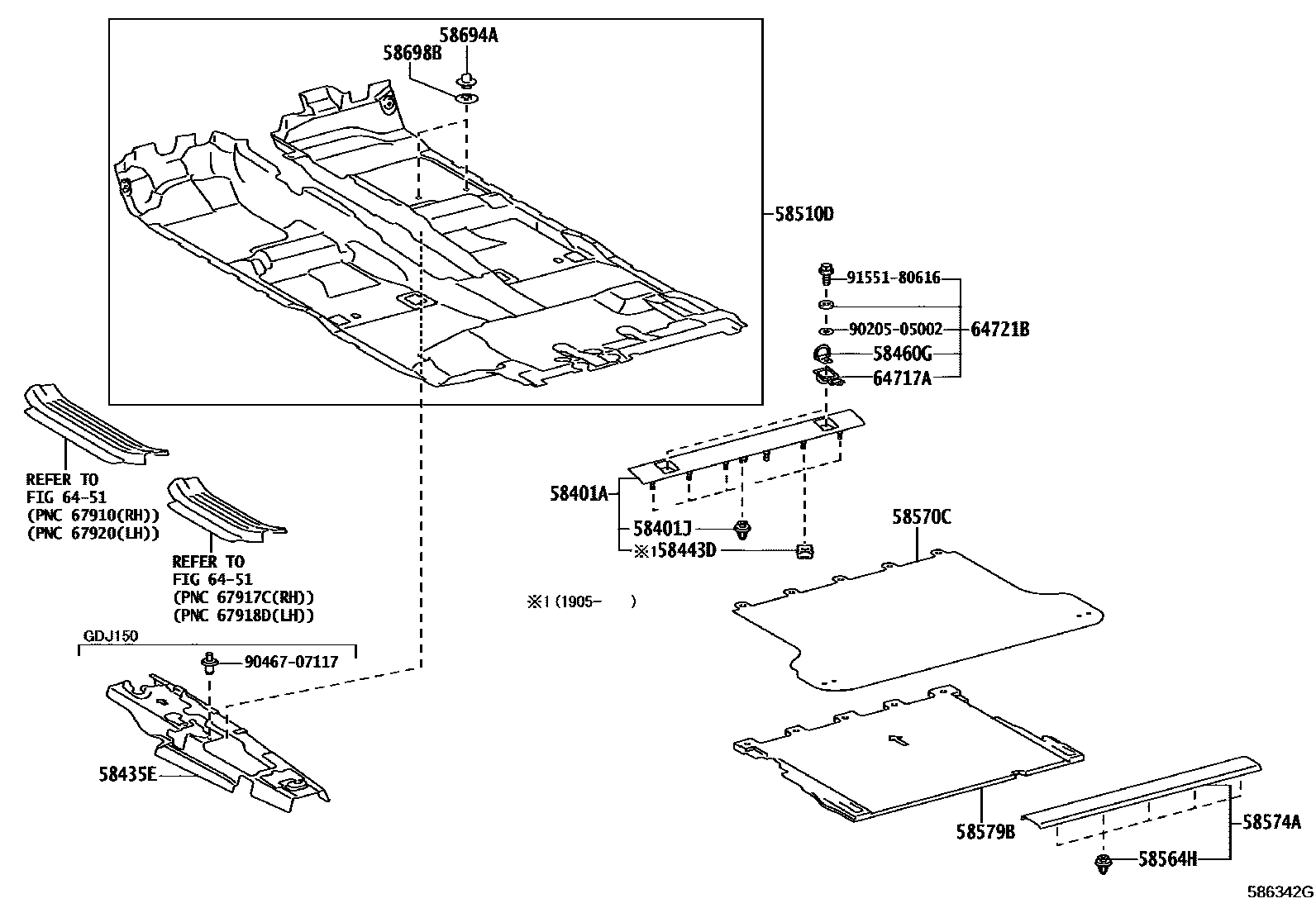

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58401ABOARD SUB-ASSY, DECK, NO.1

main58401-60010-C2iGDJ150,TRJ150..05S201708-201904

main58401-60010-E1iGDJ150,TRJ150..05S201708-201904

main58401-60011-C2iGDJ150,TRJ150..05S201905-202312

main58401-60011-E1iGDJ150,TRJ150..05S201905-202312

main58401-60030-C0iGDJ150,TRJ150..05S201708-201905

main58401-60030-E0iGDJ150,TRJ150..05S201708-201905

58401JCLIP(FOR DECK BOAD)

main90467-07210-C0iGDJ150,TRJ150..05S201708-202312

BLACK

58435ESILENCER, FRONT FLOOR, CENTER

main58435-60040iGDJ15#201708-202312

58443DCUSHION, DECK BOARD, NO.1

main58443-35020×5iGDJ150,TRJ150..05S201905-202312

58460GSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010×2iGDJ150,TRJ150..05S201708-202312

58510DCARPET ASSY, FLOOR, FRONT

main58510-60Q80-C0supersedes 58510-60W90-C1iGDJ150,TRJ150..07S202008-202106

BLACK,TRIM2#

main58510-60Q80-E0supersedes 58510-60W90-E0iGDJ150,TRJ150..07S202008-202106

NEUTRAL BEIGE,TRIM4#

main58510-60W70-C1iGDJ150,TRJ150..05S201708-202008

BLACK,TRIM2#

main58510-60W70-E0iGDJ150,TRJ150..05S201708-202008

NEUTRAL BEIGE,TRIM4#

main58510-6AN90-C0iGDJ150,TRJ150..05S202106-202312

BLACK,TRIM2#,41

main58510-6AN90-E0iGDJ150,TRJ150..05S202106-202312

NEUTRAL BEIGE,TRIM40

main58510-6AP90-C0iGDJ150,TRJ150..07S; GDJ151202106-202312

BLACK,TRIM2#; BLACK,TRIM2#,41

main58510-6AP90-E0iGDJ150,TRJ150..07S; GDJ151202106-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main58510-60R10-C0supersedes 58510-60Q80-C0iGDJ151201708-202106

main58510-60R10-E0supersedes 58510-60Q80-E0iGDJ151201708-202106

main58510-6AF60-C0iGDJ150,TRJ150..05S201708-202008

main58510-6AF60-E0iGDJ150,TRJ150..05S201708-202008

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-09206×5iGDJ15#,TRJ150201708-202312

58570CCARPET ASSY, REAR FLOOR

main58570-60B80-C2iGDJ150,TRJ150..05S201708-202312

main58570-60B80-E1iGDJ150,TRJ150..05S201708-202312

main58570-60D00-C0iGDJ150,TRJ150..05S201708-202312

main58570-60D00-E0iGDJ150,TRJ150..05S201708-202312

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-60120-C0iGDJ150,TRJ150..05S201708-202312

BLACK,TRIM2#,41

main58574-60120-E1iGDJ150,TRJ150..05S201708-202312

NEUTRAL BEIGE,TRIM40

main58574-60130-C0iGDJ150,TRJ150..07S; GDJ151201708-202312

BLACK,TRIM2#; BLACK,TRIM2#,41

main58574-60130-E1iGDJ150,TRJ150..07S; GDJ151201708-202312

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

58579BPAD, REAR FLOOR

main58579-60020iGDJ150,TRJ150..05S201708-202312

58694APLATE, MAT SET, UPPER

main58694-76010×2iGDJ15#,TRJ150201708-202312

58698BPLATE, MAT SET, LOWER

main58698-76010×2iGDJ15#,TRJ150201708-202312

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-60030-C0×2iGDJ150,TRJ150..05S201708-202312

BLACK,TRIM2#,41

main64717-60030-E1×2iGDJ150,TRJ150..05S201708-202312

NEUTRAL BEIGE,TRIM40

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-60010-C0×2iGDJ150,TRJ150..05S201708-202312

BLACK,TRIM2#,41

main64721-60010-E1×2iGDJ150,TRJ150..05S201708-202312

NEUTRAL BEIGE,TRIM40

9020505002

main90205-05002

9046707117

main90467-07117

9155180616

main91551-80616

18 parts on this diagram · 2 diagrams in section
