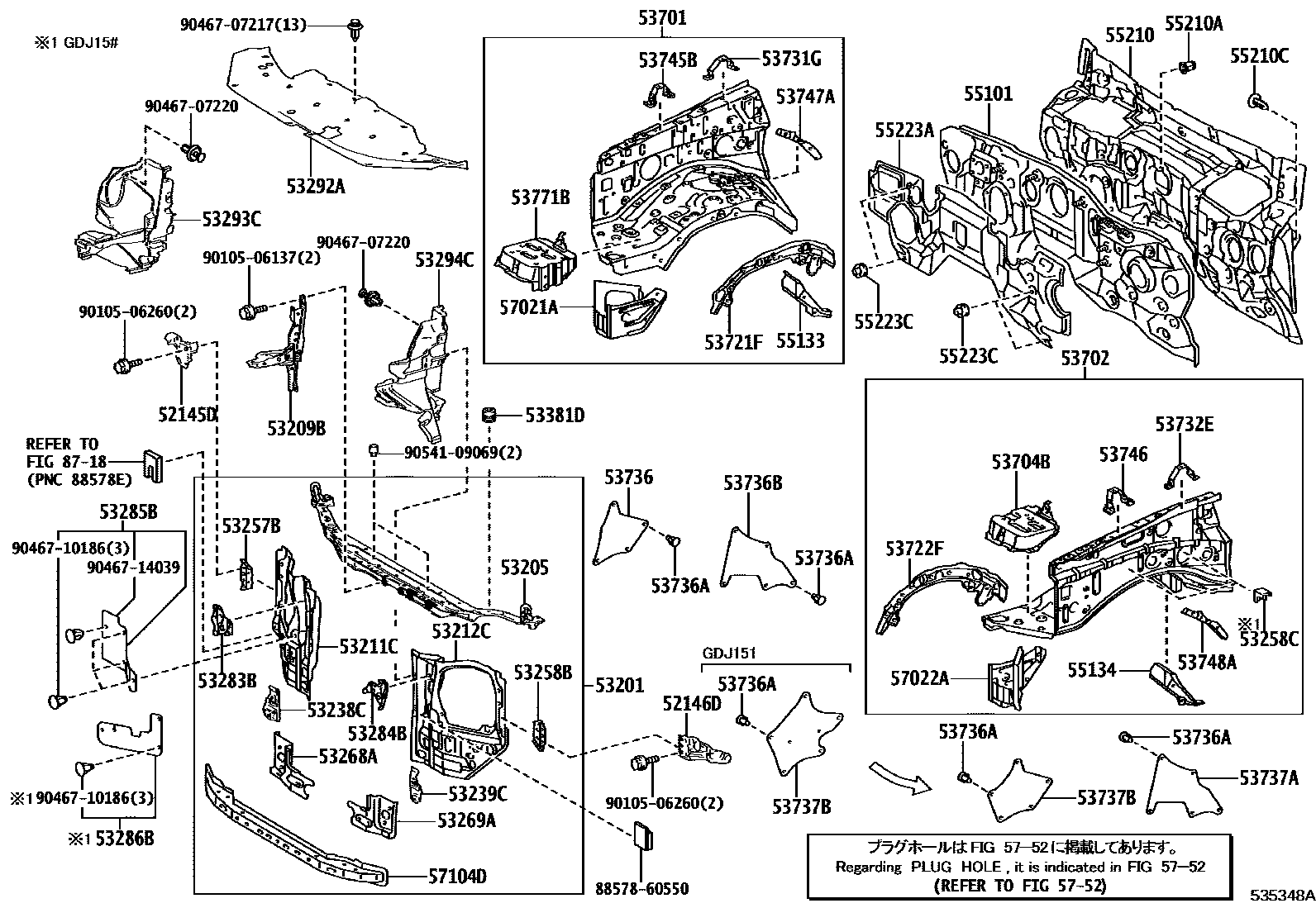

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main53803-60120iGDJ15#,TRJ150201708-202312

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main53804-60120iGDJ15#,TRJ150201708-202312

53201SUPPORT SUB-ASSY, RADIATOR

main53201-60320iGDJ15#,TRJ150201708-202312

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-60090iGDJ15#,TRJ150201708-202312

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-60200iGDJ15#,TRJ150201708-202312

53211CSUPPORT, RADIATOR, RH

main53211-60242iGDJ15#,TRJ150201708-202312

53212CSUPPORT, RADIATOR, LH

main53212-60202iGDJ15#,TRJ150201708-202312

53238CBRACKET, HOOD BUMPER MOUNTING, RH

main53238-60010iGDJ15#,TRJ150201708-202312

53239CBRACKET, HOOD BUMPER MOUNTING, LH

main53239-60010iGDJ15#,TRJ150201708-202312

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-60070iGDJ15#,TRJ150201708-202312

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53257-60070iGDJ15#,TRJ150201708-202312

53258CBRACKET, FENDER APRON, LH

main53258-60060iGDJ15#201708-202312

main53258-60070iGDJ15#201708-202312

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-35040iGDJ15#,TRJ150201708-202312

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-35040iGDJ15#,TRJ150201708-202312

53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH

main53283-60050iGDJ15#,TRJ150201708-202312

53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH

main53284-60010iGDJ15#,TRJ150201708-202312

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-60170iGDJ15#,TRJ150201708-202312

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-60110iGDJ15#201708-202312

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-60200iGDJ15#,TRJ150201708-202312

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-60190iGDJ15#,TRJ150201708-202312

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-60190iGDJ15#,TRJ150201708-202312

53381DBUMPER, HOOD TO FRONT SHROUD

main90541-15004iGDJ15#,TRJ150201708-202312

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-60F70iTRJ150201708-202312

main53701-60G10iGDJ15#201708-202002

main53701-60G11iGDJ15#202003-202312

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-60B90iTRJ150201708-202312

main53702-60C00iGDJ15#201708-202312

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-60060iGDJ15#,TRJ150201708-202312

53721FAPRON, FRONT FENDER, NO.1 RH

main53721-60030iGDJ15#,TRJ150201708-202312

53722FAPRON, FRONT FENDER, NO.1 LH

main53722-60020iGDJ15#,TRJ150201708-202312

53731GREINFORCEMENT, FRONT FENDER APRON, RH

main53731-60080iGDJ15#,TRJ150201708-202312

53732EREINFORCEMENT, FRONT FENDER APRON, LH

main53732-60070iGDJ15#,TRJ150201708-202312

53736SEAL, FRONT FENDER APRON, RH

main53735-35150iGDJ15#,TRJ150201708-202109

main53735-35151iGDJ15#,TRJ150202109-202208

main53736-60290iGDJ15#,TRJ150202208-202312

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10186iGDJ150,TRJ150201708-202312

53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH

main53885-60030iGDJ15#201708-202208

main53886-60030iGDJ15#201708-202109

53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH

main53885-60030iGDJ15#,TRJ150202109-202208

main53886-60030iGDJ15#,TRJ150201708-202109

53737BSEAL, FRONT FENDER APRON, LH

main53736-35150iGDJ150,TRJ150201708-202109

main53736-35151iGDJ150,TRJ150202109-202208

main53736-60130iGDJ151201708-202109

main53736-60131iGDJ151202109-202208

main53737-60170iGDJ150,TRJ150202208-202312

main53737-60180iGDJ151202208-202312

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-60050iGDJ15#,TRJ150201708-202312

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-60060iGDJ15#,TRJ150201708-202312

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-60020iGDJ15#,TRJ150201708-202312

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-60010iGDJ15#,TRJ150201708-202312

53771BSUPPORT, BATTERY CARRIER, RH

main53703-60070iGDJ15#201708-202002

main53703-60071iGDJ15#202003-202312

main53703-60080iTRJ150201708-202312

55101PANEL SUB-ASSY, DASH

main55101-60J20iGDJ15#,TRJ150201708-202312

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-60060iGDJ15#,TRJ150201708-202312

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-60070iGDJ15#,TRJ150201708-202312

55210INSULATOR ASSY, DASH PANEL

main55210-60320iTRJ150201708-202312

main55210-60330iGDJ15#201708-202312

55210ACLIP

main90467-06155iGDJ15#,TRJ150201708-202312

55210CCLIP

main90467-08186-C3iGDJ15#,TRJ150201708-202312

BLACK

55223AINSULATOR, DASH PANEL, OUTER

main55223-60460iTRJ150201708-202208

main55223-60470iGDJ15#201708-202204

main55223-60471iGDJ15#202205-202312

55223CCLIP

main90467-06206-C0iGDJ15#,TRJ150201708-202312

BLACK

57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-35060iGDJ15#,TRJ150201708-202312

57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-35050iGDJ15#,TRJ150201708-202312

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-35061iGDJ15#,TRJ150201708-202312

5752HOLE PLUG

→ Go to FIG 57-52

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

8857860550PAKING, COOLER AIR DUCT

main88578-60550

9010506137

main90105-06137

9010506260

main90105-06260

9046707217

main90467-07217

9046707220

main90467-07220

9046710186

main90467-10186

9046714039

main90467-14039

9054109069

main90541-09069

60 parts on this diagram · 2 diagrams in section
