52045APROTECTOR SUB-ASSY, REAR BUMPER, RH

main58723-60020i201708-202312

52046APROTECTOR SUB-ASSY, REAR BUMPER, LH

main58724-60020i201708-202312

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-60080i201708-202312

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-60080i201708-202312

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-60070i201708-202312

52159COVER, REAR BUMPER

main52159-6A965-A0supersedes 52159-60880-A0i201708-202106

main52159-6A965-A1supersedes 52159-60880-A1i201708-202106

main52159-6A965-B0supersedes 52159-60880-B0i201708-202106

main52159-6A965-B1supersedes 52159-60880-B1i201708-202106

main52159-6A965-C0supersedes 52159-60880-C0i201708-202106

main52159-6A965-C1supersedes 52159-60880-C1i201708-202106

main52159-6A965-C2supersedes 52159-60880-C2i201708-202106

main52159-6A965-D1supersedes 52159-60880-D0i201708-202106

main52159-6A965-E2supersedes 52159-60880-E0i201708-202106

main52159-6A979-A1i202106-202312

WHITE PEARL CS.,070

main52159-6A979-C0i202106-202312

BLACK,202

main52159-6A979-C1i202106-202312

ATTITUDE BLACK MC.,218

main52159-6A979-D1i202106-202312

RED M.M.,3R3

main52159-6A979-E0i202106-202312

AVANT-GARDE BRONZE ME.,4V8

52161BPIECE, REAR BUMPER

main52161-16010×2i201708-202312

52162BPLATE, REAR BUMPER, NO.1

main52162-60090i201708-202312

52169ASUPPORT, REAR BUMPER SIDE, NO.3

main52169-60080-C0i201708-202312

BLACK

52173DREINFORCEMENT, REAR BUMPER BAR, RH

main52173-60110i201708-202312

52174DREINFORCEMENT, REAR BUMPER BAR, LH

main52174-60110i201708-202312

52179BPLATE, REAR BUMPER BAR

main52179-60080i201708-202312

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60100i201708-202312

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-60100i201708-202312

52356CUSHION, REAR BUMPER STEP

main52356-60050×5i201708-202312

52461FPAD, REAR BUMPER

main52461-60080×4i201708-202312

52615ABSORBER, REAR BUMPER ENERGY

main52615-60050i201708-202312

58766ACOVER, JACK BOX HOLE

main58766-60030i201708-202312

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8116REAR FOG LAMP

→ Go to FIG 81-16

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-60050×2i201708-202106

main89348-60430-A1×2i202106-202312

WHITE PEARL CS.,070

main89348-60430-C0×2i202106-202312

BLACK,202

main89348-60430-C1×2i202106-202312

ATTITUDE BLACK MC.,218

main89348-60430-D0×2i202106-202312

RED M.M.,3R3

main89348-60430-E0×2i202106-202312

AVANT-GARDE BRONZE ME.,4V8

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-60030-A0i201708-202106

main89348-60030-A1i201708-202106

main89348-60030-B0i201708-202106

main89348-60030-B1i201708-202106

main89348-60030-C0i201708-202106

main89348-60030-C1i201708-202106

main89348-60030-C2i201708-202106

main89348-60030-D0i201708-202106

main89348-60030-E0i201708-202106

main89348-60030-E1i201708-202106

main89348-60040-A0i201708-202106

main89348-60040-A1i201708-202106

main89348-60040-B0i201708-202106

main89348-60040-B1i201708-202106

main89348-60040-C0i201708-202106

main89348-60040-C1i201708-202106

main89348-60040-C2i201708-202106

main89348-60040-D0i201708-202106

main89348-60040-E0i201708-202106

main89348-60040-E1i201708-202106

main89348-60420-A1×2i202106-202312

WHITE PEARL CS.,070

main89348-60420-C0×2i202106-202312

BLACK,202

main89348-60420-C1×2i202106-202312

ATTITUDE BLACK MC.,218

main89348-60420-D0×2i202106-202312

RED M.M.,3R3

main89348-60420-E0×2i202106-202312

AVANT-GARDE BRONZE ME.,4V8

9010906330

main90109-06330

9010906371

main90109-06371

9015960431

main90159-60431

9015960603

main90159-60603

9017906127

main90179-06127

9018306019

main90183-06019

9018906029

main90189-06029

9018906236

main90189-06236

91641C0614

main91641-C0614

91641H0820

main91641-H0820

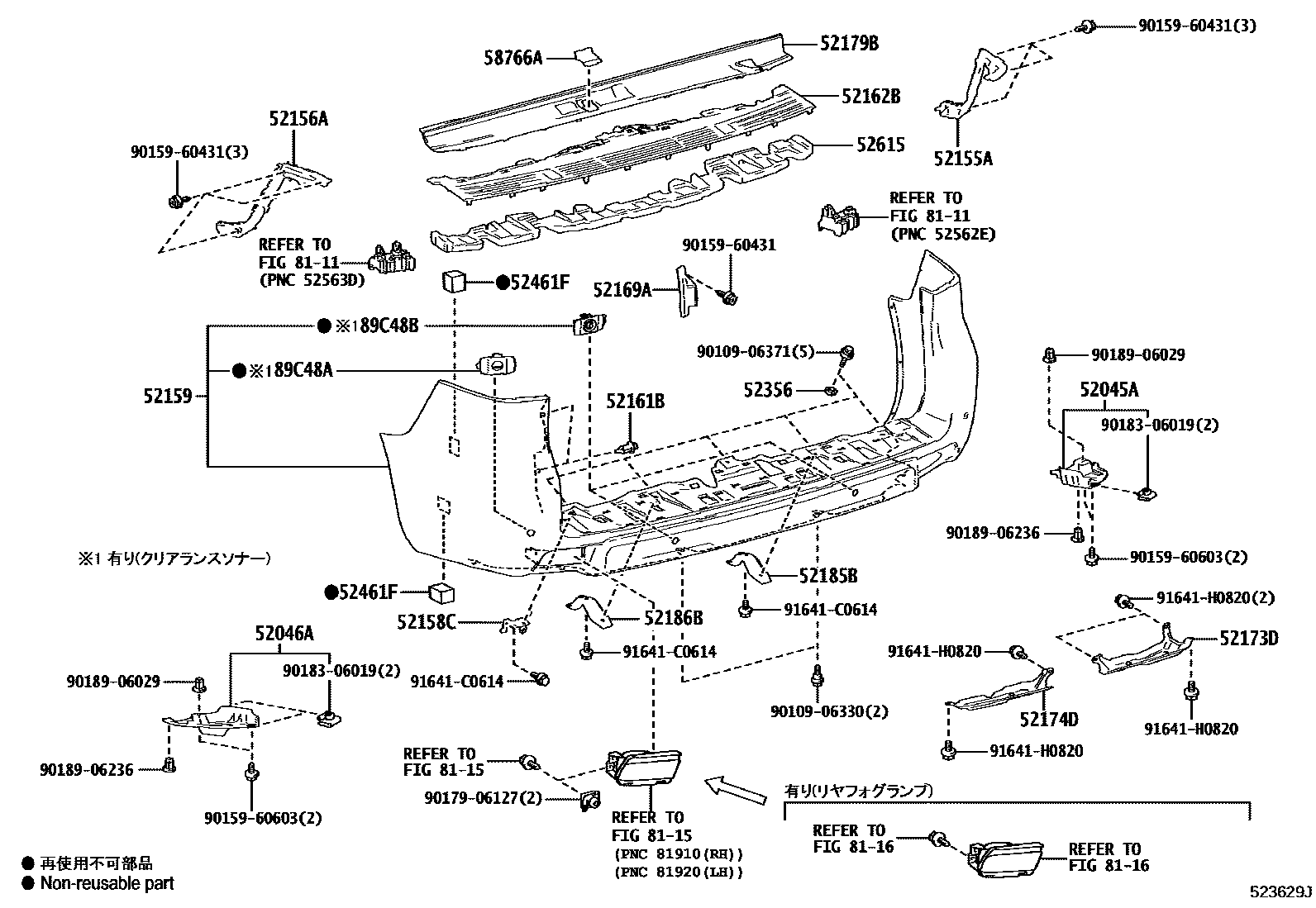

REAR BUMPER & BUMPER STAY
