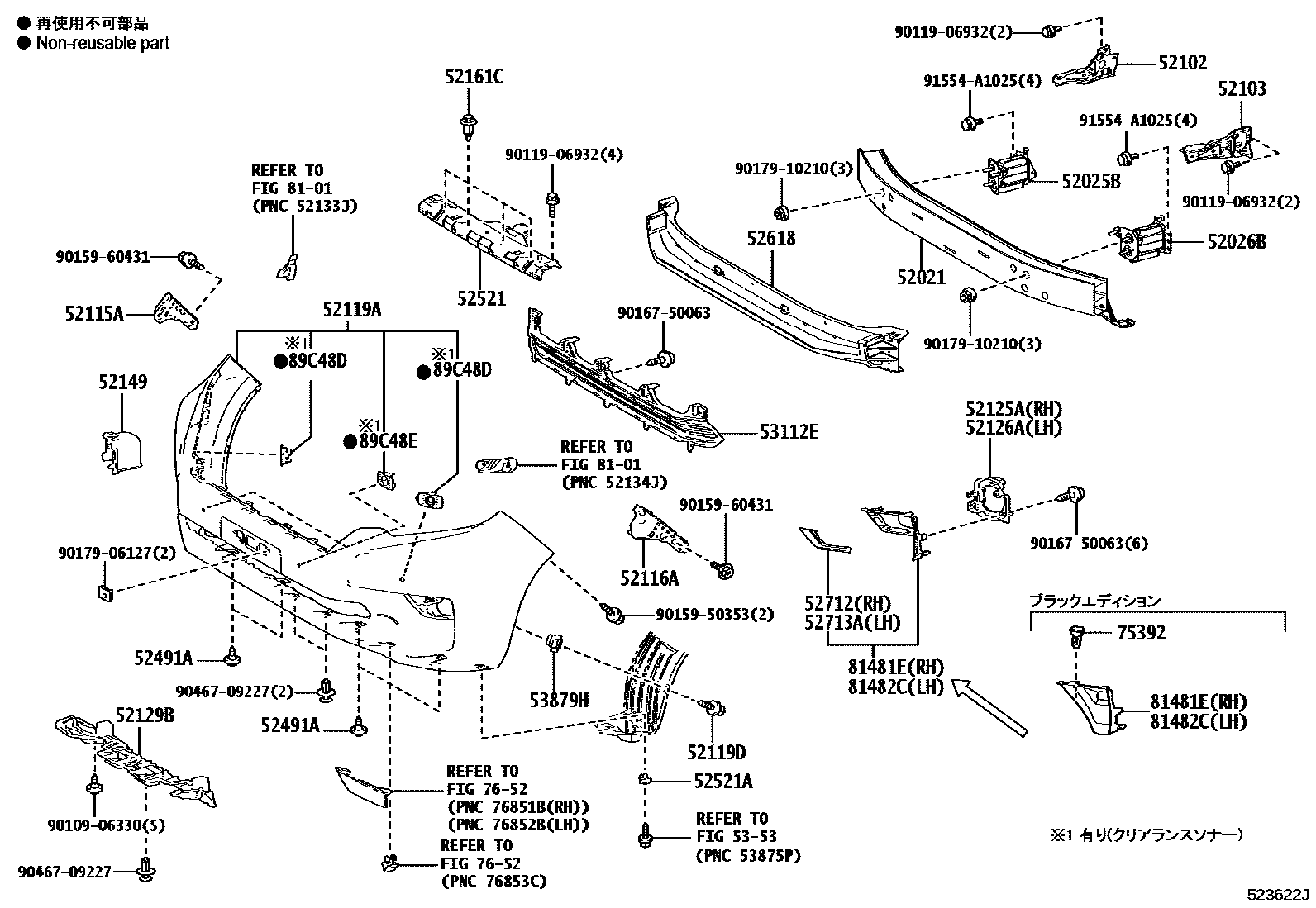

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52102BRACKET SUB-ASSY, FRONT BUMPER, RH
52103BRACKET SUB-ASSY, FRONT BUMPER, LH
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
sub52119-6B989
sub52119-6B989
sub52119-6B989
sub52119-6B989
sub52119-6B989
sub52119-6B989
sub52119-6B989
sub52119-6B989
sub52119-6B989
sub52119-6C909
sub52119-6C909
sub52119-6C909
sub52119-6C909
sub52119-6C909
sub52119-6C909
sub52119-6C909
sub52119-6C909
sub52119-6C909
52119DSCREW, NO.1
52125ABRACKET, FOG LAMP MOUNTING, RH
52126ABRACKET, FOG LAMP MOUNTING, LH
52129BCOVER, FRONT BUMPER, LOWER
52149BRACKET, FRONT BUMPER, INNER
52161CPIECE, FRONT BUMPER
52491ABOLT, BUMPER PAD
52521RETAINER, FRONT BUMPER, UPPER CENTER
52521ACLIP(FOR FRONT BUMPER RETAINER)
52618ABSORBER, FRONT BUMPER, LOWER
52712MOULDING, FRONT BUMPER SIDE, RH
52713AMOULDING, FRONT BUMPER SIDE, LH
53112EGRILLE, RADIATOR, LOWER NO.1
5353
53879HRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
7652
8101
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
9010906330
main90109-06330
9011906932
main90119-06932
9015950353
main90159-50353
9015960431
main90159-60431
9016750063
main90167-50063
9017906127
main90179-06127
9017910210
main90179-10210
9046709227
main90467-09227
91554A1025
main91554-A1025
39 parts on this diagram · 1 diagram in section
