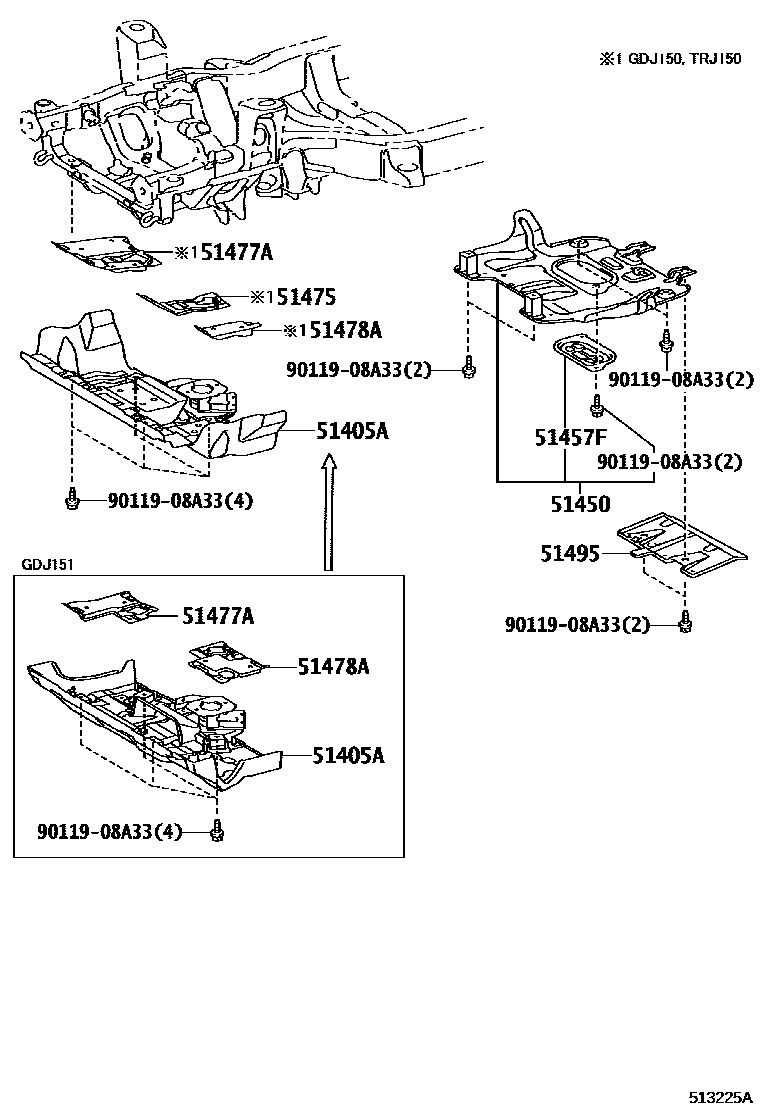

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60210iTRJ150201708-202208

main51405-60230iGDJ150201708-202312

main51405-60240iGDJ151201708-202312

51450COVER ASSY, ENGINE UNDER, REAR

main51450-60050iTRJ150201708-202208

main51450-60060iGDJ15#201708-202105

main51450-60061iGDJ15#202106-202312

51457FSEAL, ENGINE UNDER COVER

main51457-60030iGDJ15#,TRJ150201708-202312

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-60010iGDJ150201708-202105

main51475-60011iGDJ150202106-202312

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-60060iGDJ150201708-202105

main51477-60061iTRJ150202208-202312

main51477-60070iGDJ151201708-202105

main51477-60071iGDJ151202106-202312

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-60070iGDJ150201708-202105

main51478-60071iTRJ150202208-202312

main51478-60080iGDJ151201708-202105

main51478-60081iGDJ151202106-202312

51495COVER, TRANSMISSION UNDER

main51495-60370iGDJ15#,TRJ150202208-202312

main51495-60380iGDJ15#201708-202208

9011908A33

main90119-08A33

8 parts on this diagram · 1 diagram in section
