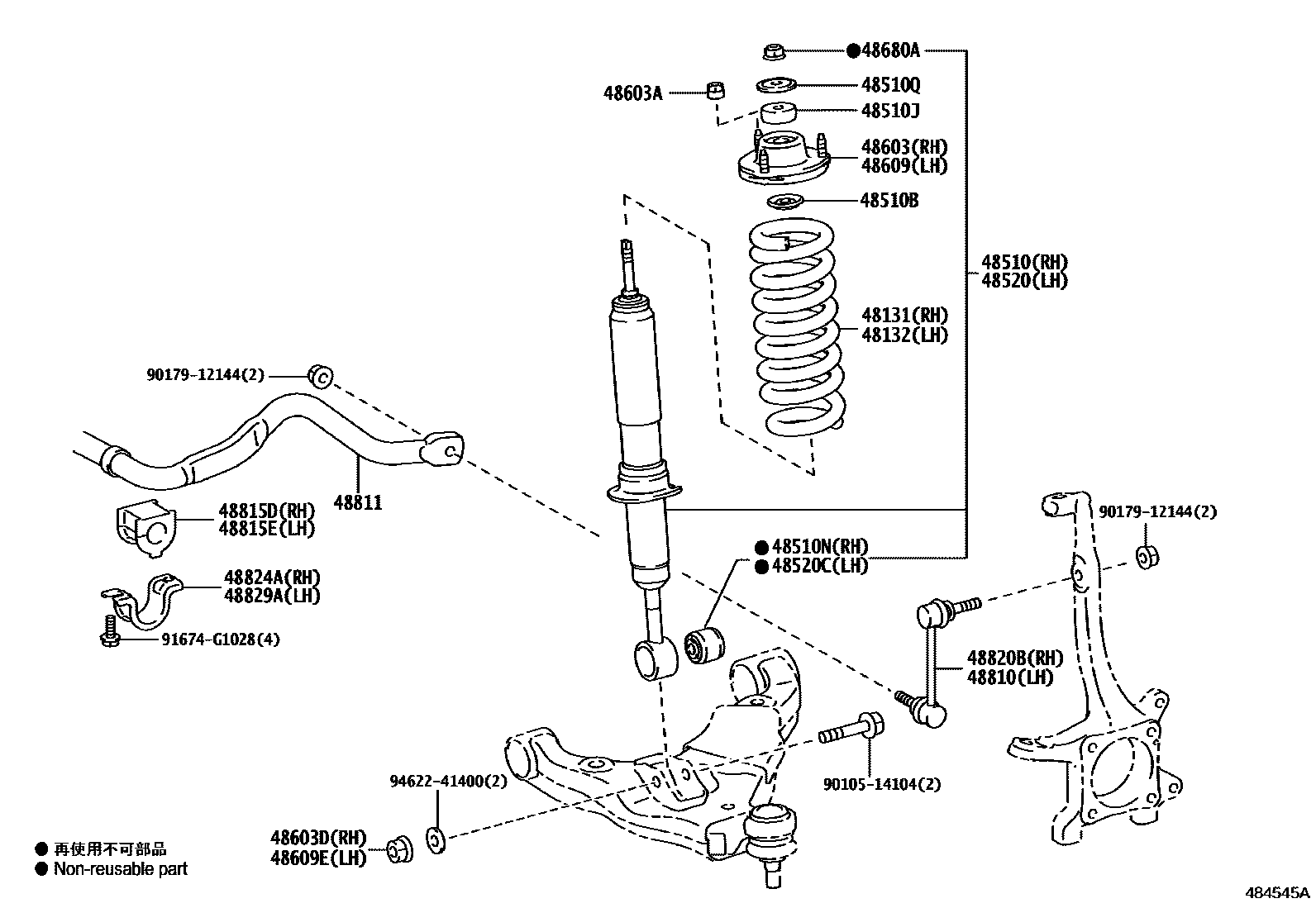

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820LINK ASSY, FRONT STABILIZER
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9010514104
main90105-14104
9017912144
main90179-12144
91674G1028
main91674-G1028
9462241400
main94622-41400
27 parts on this diagram · 3 diagrams in section
