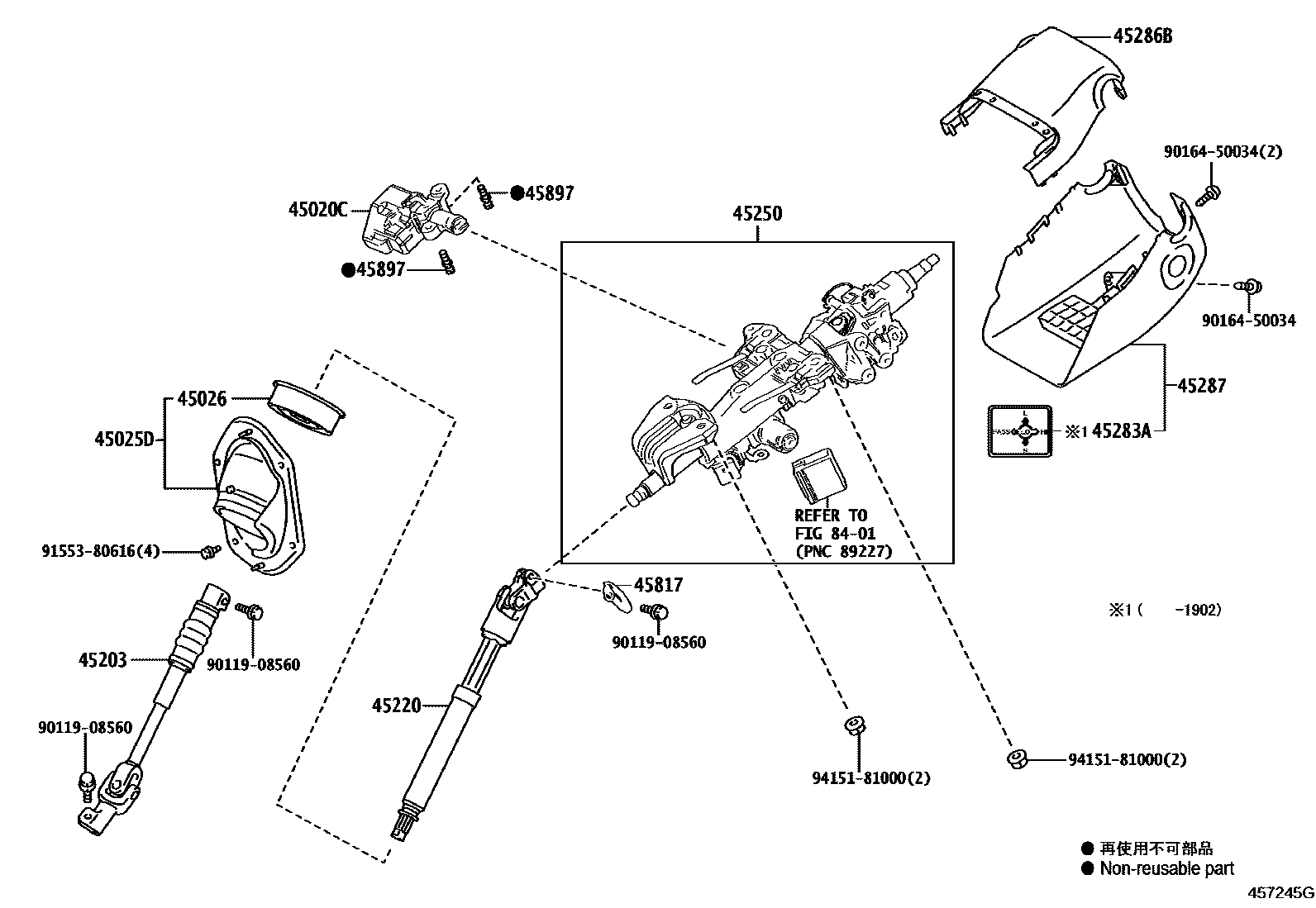

STEERING COLUMN & SHAFT

0001 1��������� & �������� 0002 1�������� & ��������

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B20iGDJ150,TRJ150201708-202208

main45020-60830iGDJ151201708-202208

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-60201iGDJ15#,TRJ150201708-202312

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-60041iGDJ15#,TRJ150201708-202312

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-60171iGDJ15#,TRJ150201708-202312

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60270iGDJ15#,TRJ150201708-202312

45250COLUMN ASSY, STEERING

main45250-60D00iGDJ150,TRJ150201708-202208

main45250-60D60iGDJ150,TRJ150202208-202312

main45810-60210iGDJ151201708-202312

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iGDJ15#,TRJ150201708-201902

45286BCOVER, STEERING COLUMN, UPR

main45286-60550-C0iGDJ150,TRJ150201902-202312

BLACK,TRIM2#,41

main45286-60550-E0iGDJ150,TRJ150201708-201902

ORCHID BROWN,TRIM4#

main45286-60560-C0iGDJ151201708-202312

BLACK,TRIM2#

main45286-60560-E0iGDJ151201708-202312

ORCHID BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-60610-C0iGDJ150,TRJ150201902-202312

BLACK,TRIM2#,41

main45287-60610-E0iGDJ150,TRJ150201902-202312

ORCHID BROWN,TRIM40

main45287-60620-C0iGDJ150,TRJ150201708-201902

BLACK,TRIM2#

main45287-60620-E0iGDJ150,TRJ150201708-201902

ORCHID BROWN,TRIM4#

main45287-60630-C0iGDJ151201902-202312

BLACK,TRIM2#

main45287-60630-E0iGDJ151201902-202312

ORCHID BROWN,TRIM4#

main45287-60640-C0iGDJ151201708-201902

BLACK,TRIM2#

main45287-60640-E0iGDJ151201708-201902

ORCHID BROWN,TRIM4#

45817STOPPER, STEERING SHAFT THRUST

main45817-60020iGDJ151201708-202312

45897BOLT, STEERING LOCK SET

main45897-12020×2iGDJ150,TRJ150; GDJ151201708-202208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9016450034

main90164-50034

9155380616

main91553-80616

9415181000

main94151-81000

16 parts on this diagram · 2 diagrams in section
