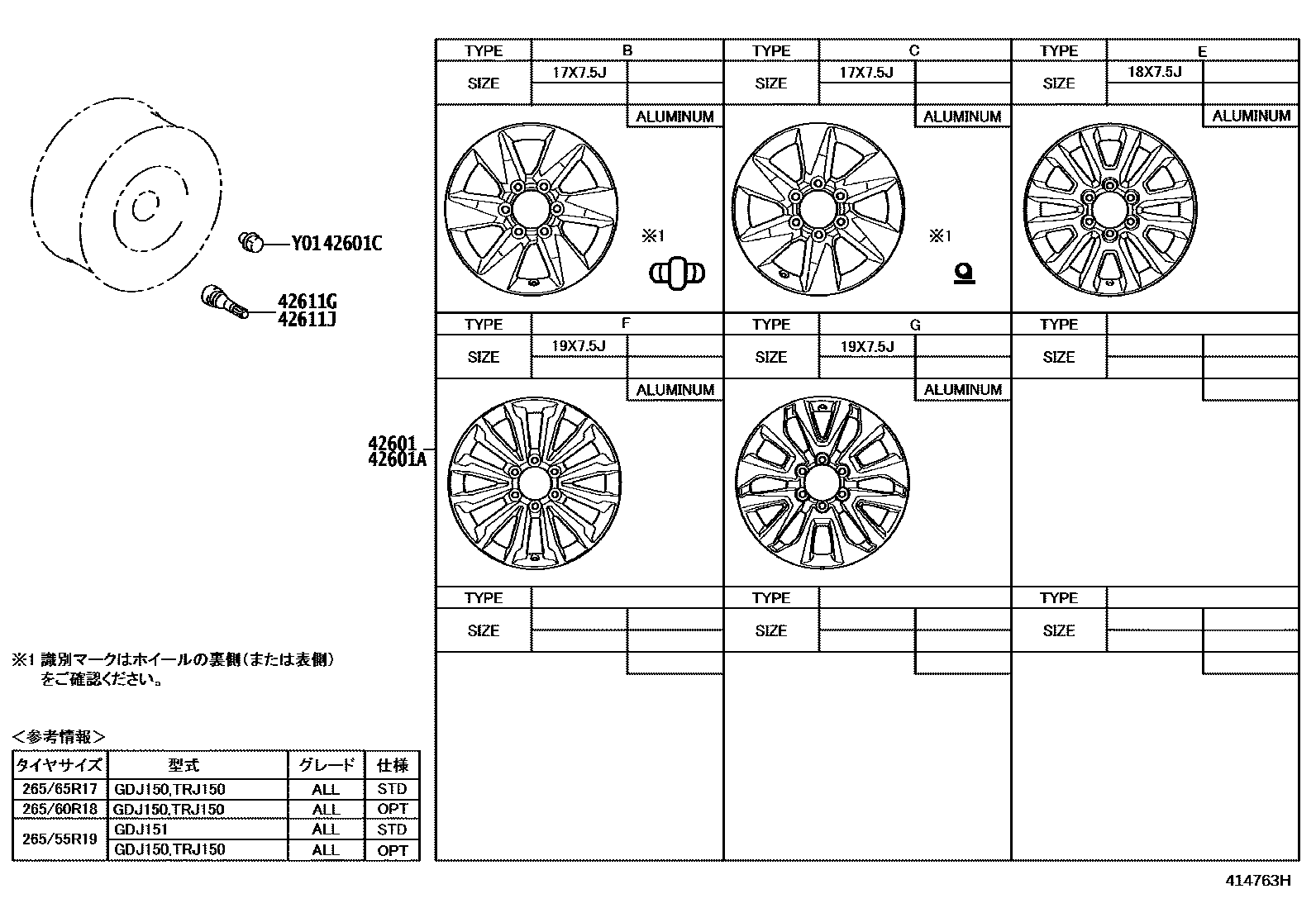

DISC WHEEL & WHEEL CAP

0001 1��������� 0002 1������������� 0003 1���������

42601WHEEL, DISC

main42611-60D50iGDJ150,TRJ150201708-202312

main42611-60D70iGDJ150,TRJ150201708-202312

main42611-60D90iGDJ150,TRJ150201708-202106

main42611-60D90iGDJ150,TRJ150201708-202106

main42611-60D90iGDJ150,TRJ150201708-202106

main42611-60L30iGDJ150,TRJ150202208-202312

main42611-WY390iGDJ151202106-202312

main42611-WY390iGDJ150,TRJ150202106-202312

42601AWHEEL, DISC (FOR SPARE)

main42611-60D50iGDJ150,TRJ150201708-202312

main42611-60D70iGDJ150,TRJ150201708-202312

main42611-60D90iGDJ151201708-202106

main42611-60D90iGDJ151201708-202106

main42611-60D90iGDJ151201708-202106

main42611-60L30iGDJ150,TRJ150202208-202312

main42611-WY390iGDJ151202106-202312

main42611-WY390iGDJ151202106-202312

42601CNUT, HUB (FOR AXLE)

main90942-01058iGDJ15#,TRJ150201708-202312

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iGDJ15#,TRJ150201708-202312

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGDJ15#,TRJ150201708-202312

5 parts on this diagram · 3 diagrams in section
