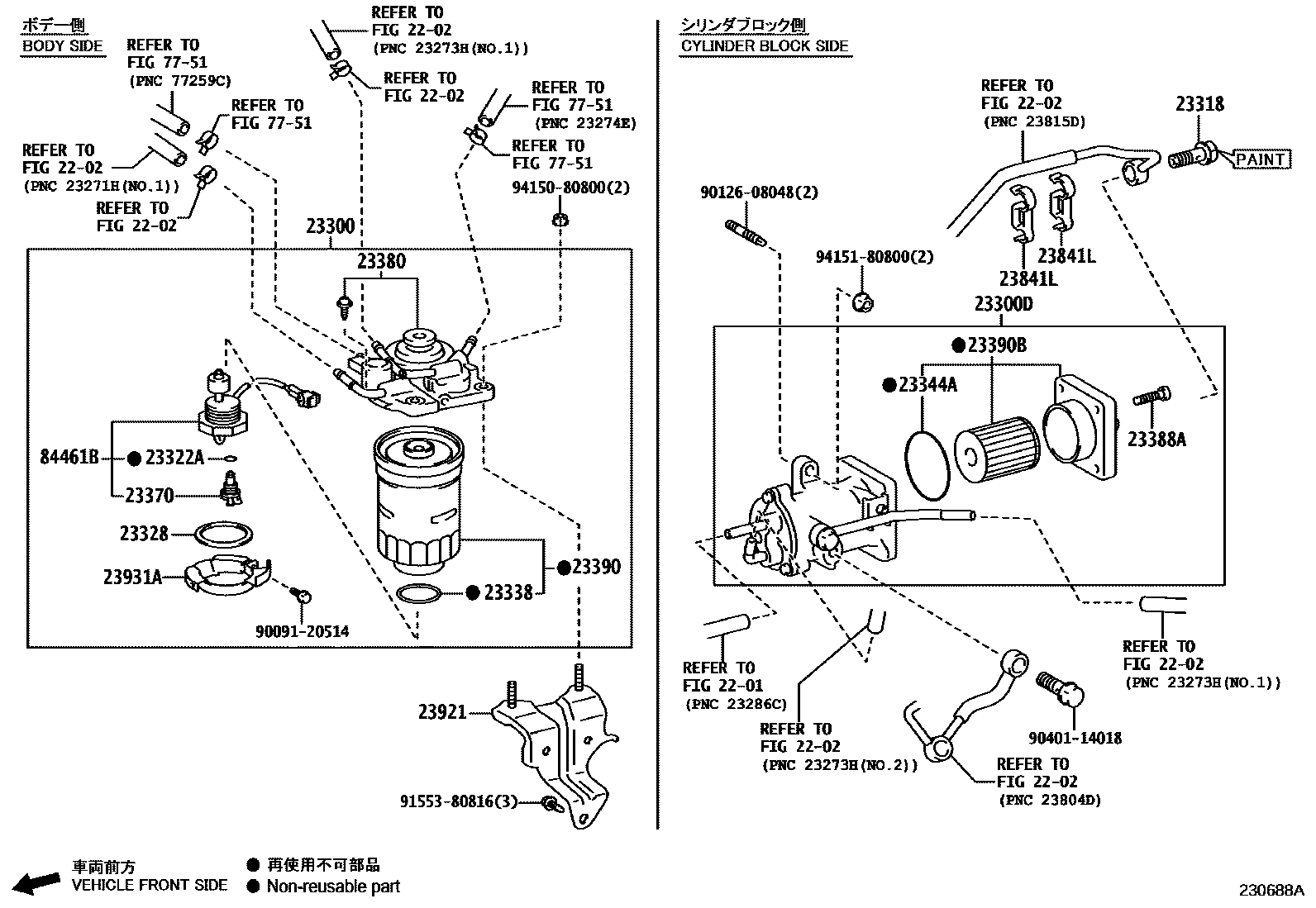

FUEL FILTER

2201INJECTION NOZZLE

→ Go to FIG 22-01

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23300FILTER ASSY, FUEL

main23300-30420i1GDFTV..GDJ15#201708-202312

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-11230i1GDFTV..GDJ15#201708-201807

main23300-11231i1GDFTV..GDJ15#201807-202312

23318BOLT, UNION

main90401-14018i1GDFTV..GDJ15#201708-201812

main90401-14020i1GDFTV..GDJ15#201812-201906

main90401-T0009i1GDFTV..GDJ15#201907-202312

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1GDFTV..GDJ15#201708-202312

23328GASKET(FOR FUEL FILTER)

main23385-30160i1GDFTV..GDJ15#201708-202312

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1GDFTV..GDJ15#201708-202312

23344AGASKET, FUEL FILTER ELEMENT

main23385-11230×5i1GDFTV..GDJ15#201708-201807

23370COCK ASSY, FUEL FILTER DRAIN

main23370-30010i1GDFTV..GDJ15#201708-202312

23380CAP ASSY, FUEL FILTER

main23380-30340i1GDFTV..GDJ15#201708-202312

23388APLUG, FUEL FILTER DRAIN

main23388-11230×4i1GDFTV..GDJ15#201708-202312

23390ELEMENT ASSY, FUEL FILTER

main23390-36760i1GDFTV..GDJ15#201708-202312

23390BELEMENT ASSY, FUEL FILTER, NO.2

main23390-11230i1GDFTV..GDJ15#201708-201807

main23390-11231i1GDFTV..GDJ15#201807-202312

23841LCLAMP, FUEL PIPE

main23841-11050×2i1GDFTV..GDJ15#201708-202312

23921SUPPORT, FUEL FILTER

main23921-30070i1GDFTV..GDJ15#201708-202312

23931ACOVER, FUEL FILTER

main23931-26031i1GDFTV..GDJ15#201708-202312

7751FUEL TANK & TUBE

→ Go to FIG 77-51

84461BSWITCH, LEVEL WARNING

main84461-60101iGDJ15#201708-201909

main84461-60102iGDJ15#201910-202312

9009120514

main90091-20514

9012608048

main90126-08048

9040114018

main90401-14018

9155380816

main91553-80816

9415080800

main94150-80800

9415180800

main94151-80800

25 parts on this diagram · 1 diagram in section
