VACUUM PUMP

1708VACUUM PIPING

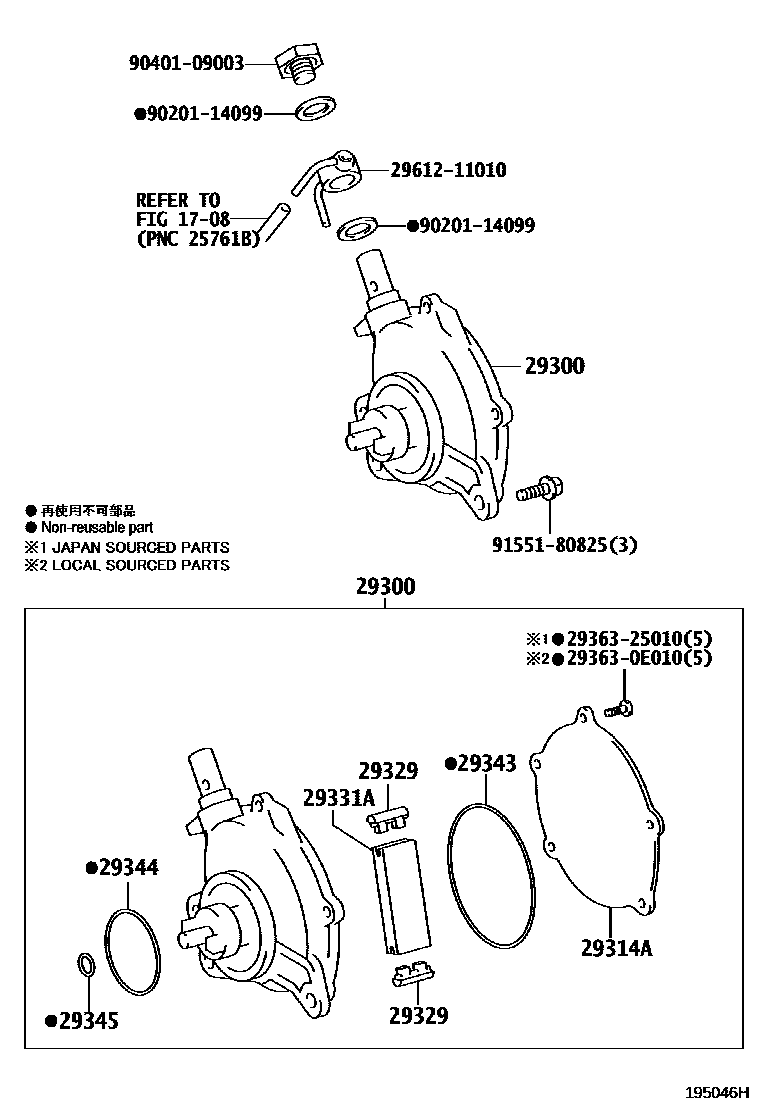

→ Go to FIG 17-08

29300PUMP ASSY, VACUUM

main29300-11020i1GDFTV..GDJ15#201708-201807

main29300-11021i1GDFTV..GDJ15#201807-202307

main29300-35010i1GDFTV..GDJ15#202308-202312

29314ACOVER, END

main29314-0E010i1GDFTV..GDJ15#201810-202312

main29314-11020i1GDFTV..GDJ15#201708-201807

29329CAP, VACUUM PUMP VANE

main29329-0E010×2i1GDFTV..GDJ15#201810-202312

main29329-37010×2i1GDFTV..GDJ15#201708-201807

29331AVANE, VACUUM PUMP

main29331-0E010i1GDFTV..GDJ15#201810-202312

main29331-11020i1GDFTV..GDJ15#201807-202308

29343RING, O VACUUM PUMP, NO.1

main29343-0E010i1GDFTV..GDJ15#201810-202312

main29343-11020i1GDFTV..GDJ15#201708-201807

29344RING, O VACUUM PUMP, NO.2

main29344-0E010i1GDFTV..GDJ15#201810-202312

main29344-22011i1GDFTV..GDJ15#201807-202308

29345RING, O VACUUM PUMP, NO.3

main29345-0E010i1GDFTV..GDJ15#201810-202312

main29345-22011i1GDFTV..GDJ15#201708-201807

293630E010SCREW, HOLLOW VACUUM PUMP

main29363-0E010

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

2961211010CONNECTOR, VACUUM PUMP

main29612-11010

9020114099

main90201-14099

9040109003

main90401-09003

9155180825

main91551-80825

14 parts on this diagram · 1 diagram in section
