AIR CLEANER

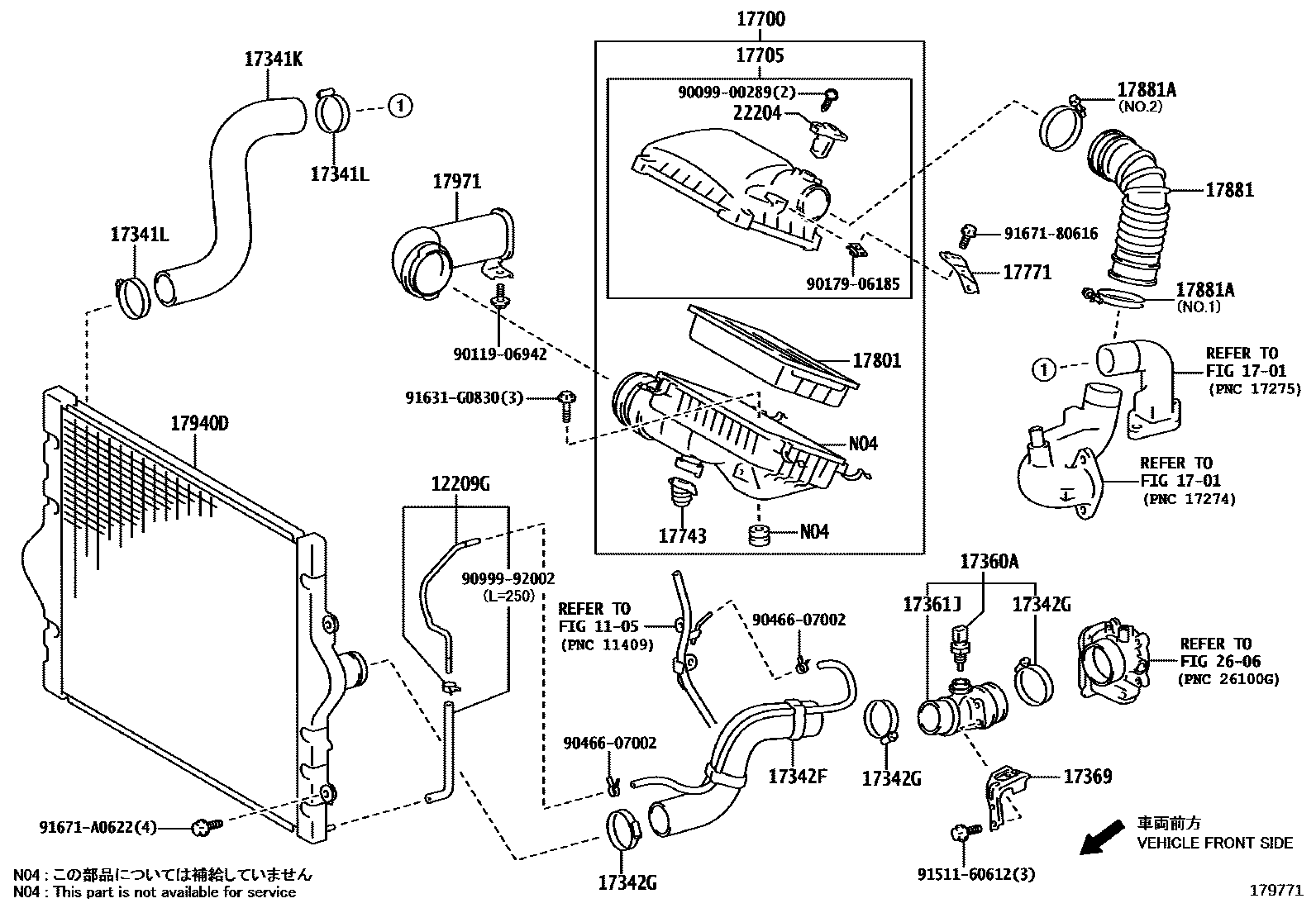

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

12209GPIPE SUB-ASSY, OIL RETURN

main12209-30051i201708-201806

1701MANIFOLD

→ Go to FIG 17-01

17341KHOSE, AIR, NO.1(FOR INTERCOOLER)

main17341-11470i201708-201806

17341LCLAMP, HOSE

main90460-65012×2i201708-201806

17342FHOSE, AIR, NO.2(FOR INTERCOOLER)

main17342-11220i201708-201806

17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)

main90460-77002×3i201708-201806

17360ATUBE ASSY, AIR

main17360-11050i201708-201806

17361JTUBE, AIR, NO.1

main17361-11100i201708-201806

17369BRACKET, AIR TUBE SUPPORT

main17369-11010i201708-201806

17700CLEANER ASSY, AIR

main17700-1B060i201708-202312

main17700-75403i201708-202312

17705CAP SUB-ASSY, AIR CLEANER

main17705-11630i201708-202312

main17705-75281i201708-202312

17743VALVE, DUST RELIEF

main17743-75010i201708-202312

17771BRACKET, AIR CLEANER INLET DUCT

main17771-30010i201708-202312

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-11130i201708-202312

main17801-50040i201708-202312

17881HOSE, AIR CLEANER, NO.1

main17881-11600i201708-202312

main17881-75212i201708-202312

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-30800i201708-202312

main96111-30830i201708-202312

main96111-30900i201708-202312

17940DINTERCOOLER ASSY

main17940-11050i201708-201806

main17940-11080i201806-202008

main17940-11090i202008-202312

17971INLET, COOL AIR, NO.1

main17971-30010i201708-202111

main17971-30012i202112-202312

main17971-75012i201708-202312

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-30030i201708-202312

main22204-75030i201708-202312

2606VENTURI

→ Go to FIG 26-06

9009900289

main90099-00289

9011906942

main90119-06942

9017906185

main90179-06185

9046607002

main90466-07002

9099992002

main90999-92002

9151160612

main91511-60612

91631G0830

main91631-G0830

9167180616

main91671-80616

91671A0622

main91671-A0622
