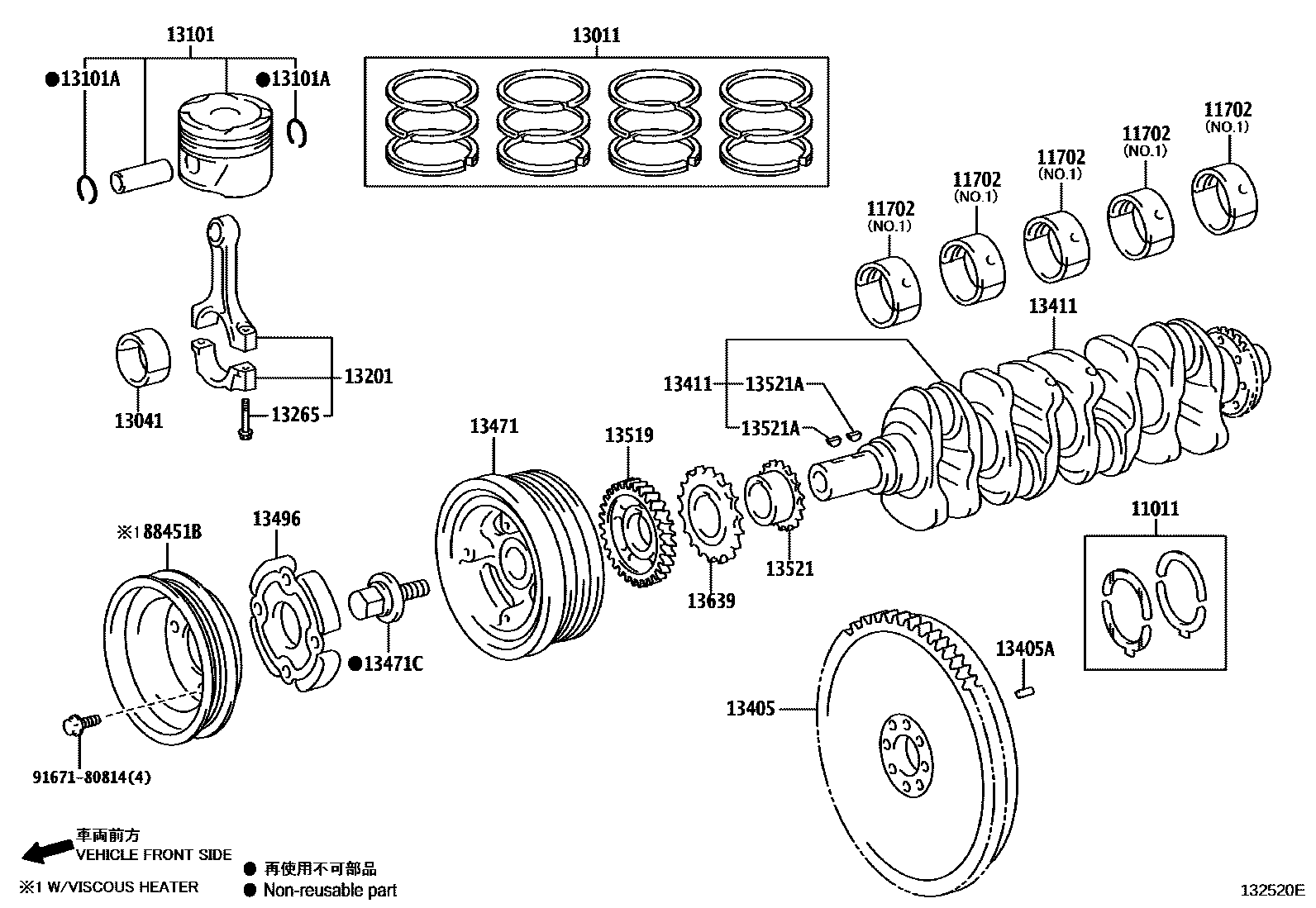

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-30010i1GDFTV..GDJ15#201708-202312

main11011-75020×2i2TRFE..TRJ150201902-202312

main11011-75021×2i2TRFE..TRJ150201708-201901

11702BEARING SET, CRANKSHAFT

main11701-11030-02×5i1GDFTV..GDJ15#201708-202312

main11701-11030-03×5i1GDFTV..GDJ15#201708-202312

main11701-11030-04×5i1GDFTV..GDJ15#201708-202312

main11701-11030-05×5i1GDFTV..GDJ15#201708-202312

main11701-11030-06×5i1GDFTV..GDJ15#201708-202312

main11704-75033i2TRFE..TRJ150201708-201712

main11704-75034i2TRFE..TRJ150201712-202312

13011RING SET, PISTON

main13011-11200i1GDFTV..GDJ15#201708-202005

main13011-11201i1GDFTV..GDJ15#202005-202008

main13011-11221i1GDFTV..GDJ15#202008-202312

main13011-75200i2TRFE..TRJ150201708-202312

main13013-75200i2TRFE..TRJ150201708-202312

13041BEARING, CONNECTING ROD

main13041-11060-02×4i1GDFTV..GDJ15#201708-202109

MARK 2

main13041-11060-03×4i1GDFTV..GDJ15#201708-202109

MARK 3

main13041-11060-04×4i1GDFTV..GDJ15#201708-202109

MARK 4

main13041-11060-05×4i1GDFTV..GDJ15#201708-202109

MARK 5

main13041-11060-06×4i1GDFTV..GDJ15#201708-202109

MARK 6

main13041-11061-02×4i1GDFTV..GDJ15#202110-202312

MARK 2

main13041-11061-03×4i1GDFTV..GDJ15#202110-202312

MARK 3

main13041-11061-04×4i1GDFTV..GDJ15#202110-202312

MARK 4

main13041-11061-05×4i1GDFTV..GDJ15#202110-202312

MARK 5

main13041-11061-06×4i1GDFTV..GDJ15#202110-202312

MARK 6

main13041-75070-04×4i2TRFE..TRJ150201708-202312

main13041-75070-05×4i2TRFE..TRJ150201708-202312

main13041-75070-06×4i2TRFE..TRJ150201708-202312

13101PISTON SUB-ASSY, W/PIN

main13101-11200-01×4i1GDFTV..GDJ15#201708-202008

main13101-11200-02×4i1GDFTV..GDJ15#201708-202008

main13101-11240-01×4i1GDFTV..GDJ15#202008-202104

main13101-11240-02×4i1GDFTV..GDJ15#202008-202104

main13101-11241-01×4i1GDFTV..GDJ15#202104-202312

main13101-11241-02×4i1GDFTV..GDJ15#202104-202312

main13101-75200×4i2TRFE..TRJ150201708-202312

main13103-75200×4i2TRFE..TRJ150201708-202312

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×8i2TRFE..TRJ150201708-202312

main90520-32013×8i1GDFTV..GDJ15#201708-202312

13201ROD SUB-ASSY, CONNECTING

main13201-0E020-A0×4i1GDFTV..GDJ15#201801-202312

main13201-0E020-B0×4i1GDFTV..GDJ15#201801-202312

main13201-0E020-C0×4i1GDFTV..GDJ15#201801-202312

main13201-11050-A0×4i1GDFTV..GDJ15#201708-201801

MARK A

main13201-11050-B0×4i1GDFTV..GDJ15#201801-202312

main13201-11050-C0×4i1GDFTV..GDJ15#201708-201801

MARK C

main13201-79578×4i2TRFE..TRJ150201708-201912

main13201-79617×4i2TRFE..TRJ150202001-202312

13265BOLT, CONNECTING ROD

main13265-22031×8i1GDFTV..GDJ15#201708-202312

main13265-28010×8i2TRFE..TRJ150201708-201812

main13265-28020×8i2TRFE..TRJ150201901-202312

13405FLYWHEEL SUB-ASSY

main13405-11090i1GDFTV..GDJ15#201708-202312

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1GDFTV..GDJ15#201708-202312

13411CRANKSHAFT

main13401-11090i1GDFTV..GDJ15#201708-202312

main13401-75021i2TRFE..TRJ150201708-202312

13471PULLEY, CRANKSHAFT

main13408-11060i1GDFTV..GDJ15#201708-202209

main13408-11061i1GDFTV..GDJ15#202210-202312

main13408-75050i2TRFE..TRJ150201708-202312

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16041i2TRFE..TRJ150201708-202312

main90119-18003i1GDFTV..GDJ15#201708-202312

13496COVER, CRANKSHAFT PULLY

main13496-11010i1GDFTV..GDJ15#201708-202312

13519GEAR, OIL PUMP DRIVE

main13519-0E010i1GDFTV..GDJ15#202308-202312

main13519-11010i1GDFTV..GDJ15#201708-202308

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-11050i1GDFTV..GDJ15#201708-202312

main13521-75021i2TRFE..TRJ150201708-202312

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516×2i1GDFTV..GDJ15#201708-202312

13639SPROCKET, BALANCESHAFT TIMING

main13639-11010i1GDFTV..GDJ15#201708-202312

88451BPULLEY, CRANKSHAFT(FOR VISCOUS HEATER)

main88451-60090iGDJ15#201708-202312

9167180814

main91671-80814
