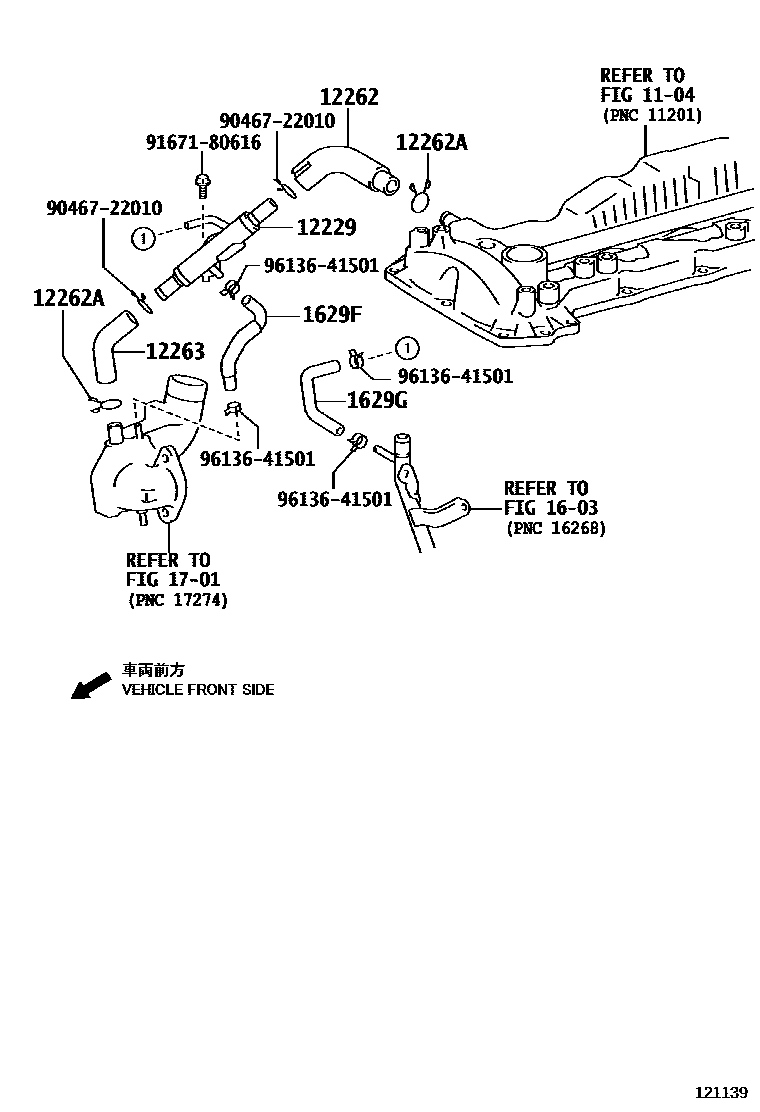

VENTILATION HOSE

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

12229PIPE, VENTILATION

main12229-11060i1GDFTV..GDJ15#201708-201806

main12229-11080i1GDFTV..GDJ15#201806-202312

main12229-75050i2TRFE..TRJ150201708-202312

12262HOSE, VENTILATION, NO.2

main12262-11110i1GDFTV..GDJ15#201708-201806

main12262-11130i1GDFTV..GDJ15#201806-202312

main12262-75240i2TRFE..TRJ150201708-202312

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-22005×2i1GDFTV..GDJ15#201708-202312

main90467-21004i2TRFE..TRJ150201708-202312

main90467-24038i2TRFE..TRJ150201708-202312

12263HOSE, VENTILATION, NO.3

main12263-11020i1GDFTV..GDJ15#201708-201806

main12263-11040i1GDFTV..GDJ15#201806-202312

main12263-75070i2TRFE..TRJ150201708-202312

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1629FHOSE, WATER BY-PASS, NO.19

main1629F-11010i1GDFTV..GDJ15#201708-201806

main1629F-11030i1GDFTV..GDJ15#201806-202312

1629GHOSE, WATER BY-PASS, NO.20

main1629G-11010i1GDFTV..GDJ15#201708-201806

main1629G-11030i1GDFTV..GDJ15#201806-202312

1701MANIFOLD

→ Go to FIG 17-01

9046722010

main90467-22010

9167180616

main91671-80616

9613641501

main96136-41501

12 parts on this diagram · 3 diagrams in section
