SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1������-� 1/2 0003 1������-� 2/2 0004 1��� 0005 1������������ 0006 1������� 0007 1���,�-�,��� & ����-�� 0008 1����� & ��������� 1/2 0009 1����� & ��������� 2/2 0010 1�������� 1/2 0011 1�������� 2/2 0012 1��� 0013 1������������ 0014 1������� 0015 1���,���,��� & �������

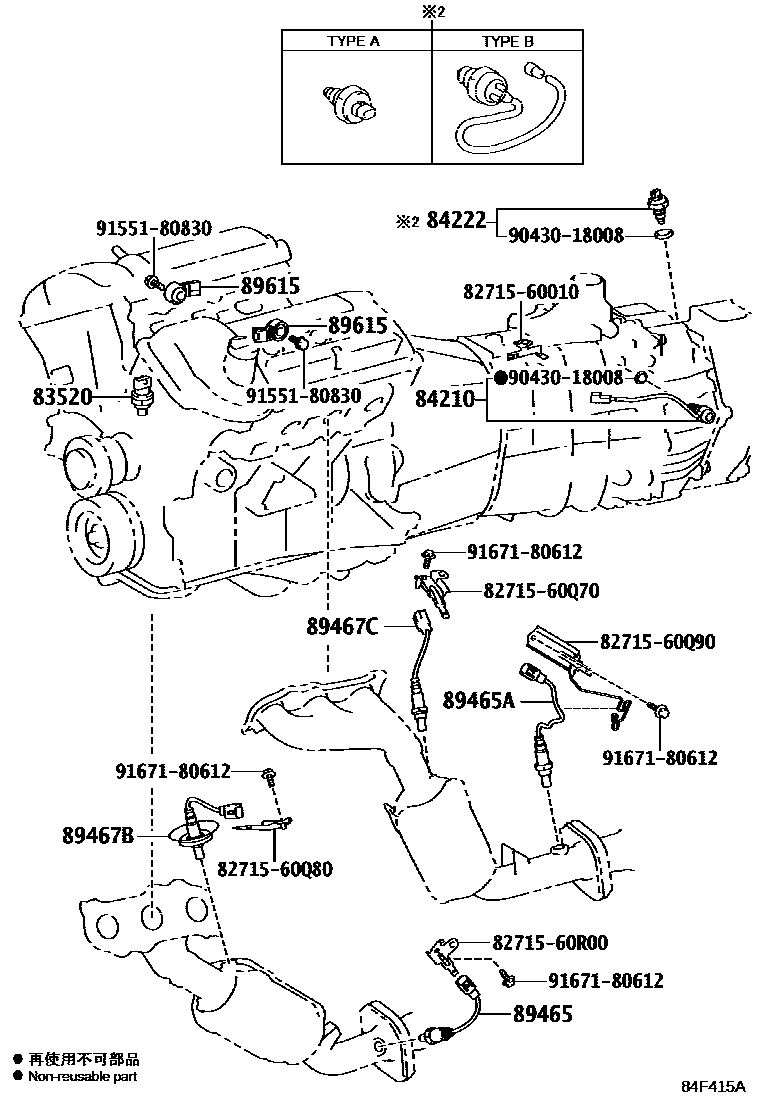

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iGRJ7#201408-201507

84210SWITCH ASSY, BACK-UP LAMP

main84210-60030iGRJ7#201408-201507

main84210-60040iGDJ76202311

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iGRJ7#201408-201507

main84222-60120iGRJ7#201408-201507

main84222-60140iGDJ76202311

89465SENSOR, OXYGEN

main89465-60330iGRJ7#201408-201507

89465ASENSOR, OXYGEN NO.2

main89465-60420iGRJ7#201408-201507

89467BSENSOR, AIR FUEL RATIO

main89467-60070iGRJ7#201408-201507

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-35110iGRJ7#201408-201507

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRJ7#201408-201507

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

8271560Q70BRACKET,WIRING HARNESS CLAMP

main82715-60Q70

8271560Q80BRACKET,WIRING HARNESS CLAMP

main82715-60Q80

8271560Q90BRACKET,WIRING HARNESS CLAMP

main82715-60Q90

8271560R00BRACKET,WIRING HARNESS CLAMP

main82715-60R00

9043018008

main90430-18008

9155180830

main91551-80830

9167180612

main91671-80612

16 parts on this diagram · 15 diagrams in section
