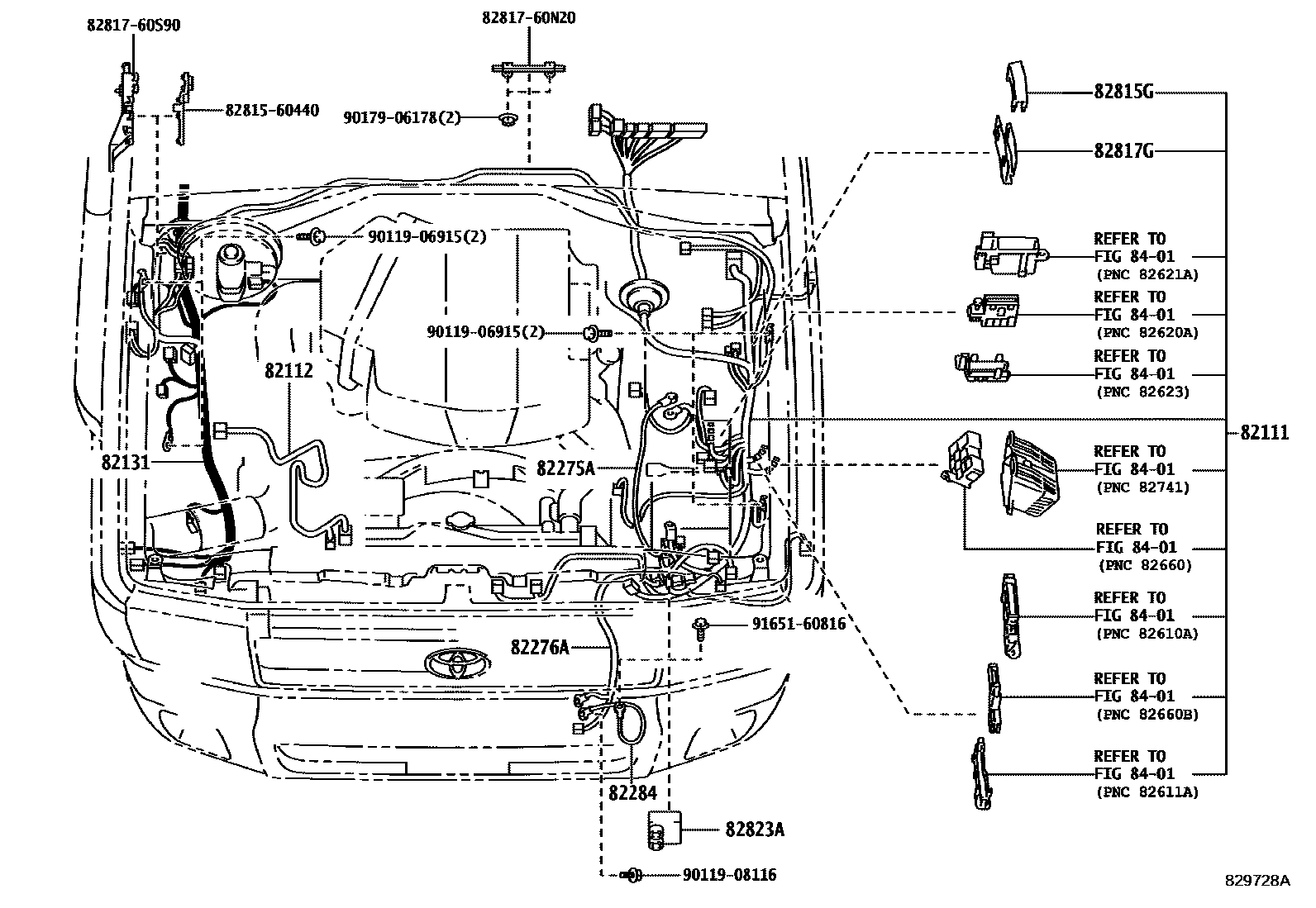

WIRING & CLAMP

0001 1�������� 0002 1�������� 0003 1����� 0004 1����� 0005 1��� 0006 1��� 0007 1������������ 0008 1������������ 0009 1��� 0010 1��� 0011 1��� & ��� 0012 1��� & ��� 0013 1���������� 0014 1����� & ������ 1/2 0015 1����� & ������ 2/2 0016 1����� & ������ 1/2 0017 1����� & ������ 2/2 0018 1���� 1/2 0019 1���� 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-6AK60iGRJ7#201408-201507

main82111-6BM20iGDJ76202311

82112WIRE, ENGINE ROOM, NO.2

main82112-60740iGRJ7#201408-201507

main82112-60B10iGDJ76202311

main82112-60760iGRJ76; GRJ79201408-201507

82131WIRE, COWL

main82131-60F90iGRJ7#201408-201507

main82131-60Q60iGDJ76202311-202409

main82131-60Q61iGDJ76202409

82275ACABLE, BATTERY TO MAGNET SWITCH

main82275-60140iGRJ7#201408-201507

82276ACABLE, MAGNET SWITCH TO WINCH

main82276-60100iGRJ7#201408-201507

82284WIRE, EARTH

main82284-60120iGRJ7#201408-201507

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-60570iGRJ7#201408-201507

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-60Q50iGRJ7#201408-201507

82823ACAP, TERMINAL, NO.2

main82823-90300iGRJ7#201408-201507

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8281560440COVER, WIRING HARNESS PROTECTOR

main82815-60440

8281760N20PROTECTOR, WIRING HARNESS, NO.1

main82817-60N20

8281760S90PROTECTOR, WIRING HARNESS, NO.1

main82817-60S90

9011906915

main90119-06915

9011908116

main90119-08116

9017906178

main90179-06178

9165160816

main91651-60816

17 parts on this diagram · 19 diagrams in section
